Xinje XD Series User Manual

162

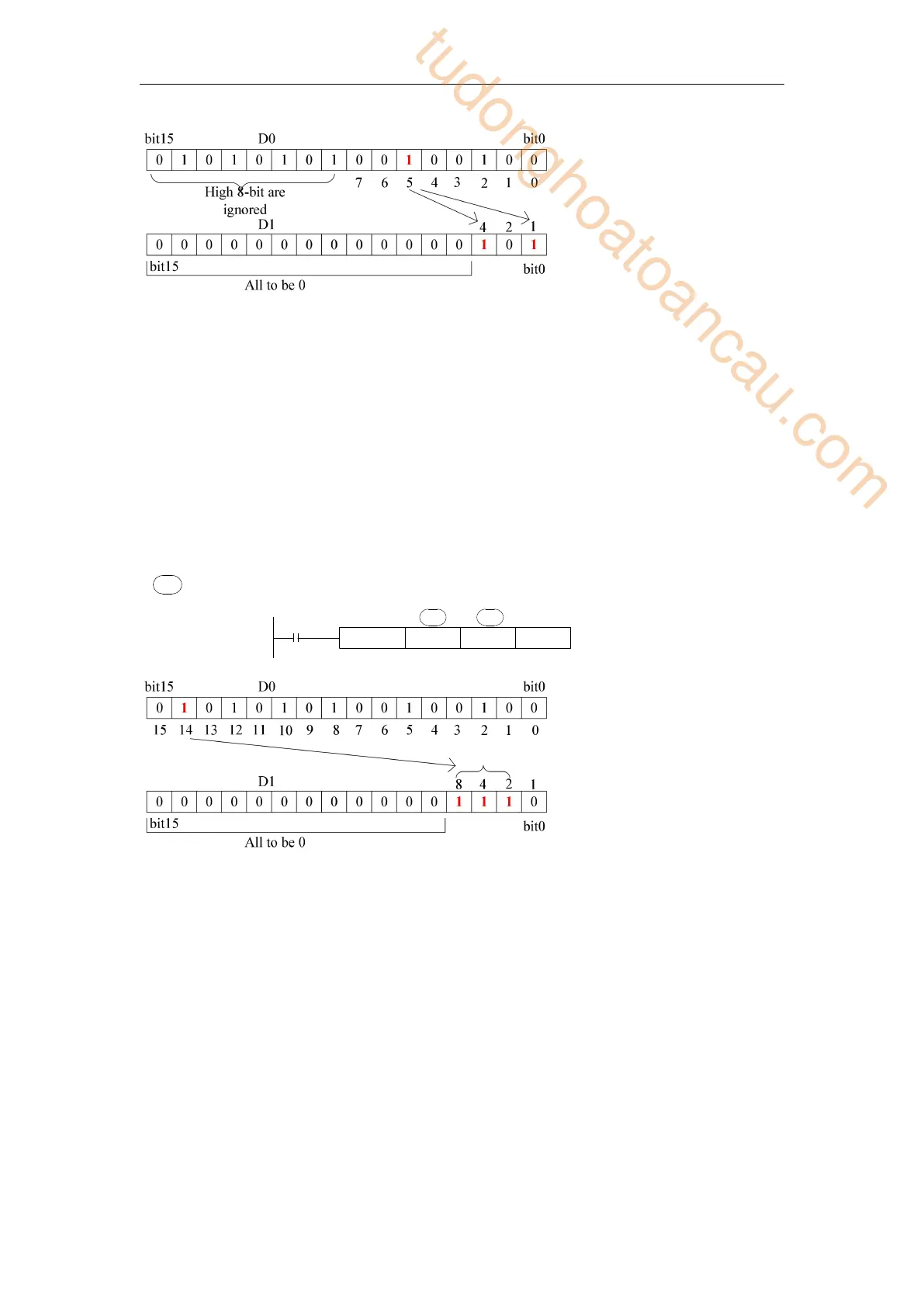

Ignore the 1 of bit 2
Ignore the 1 in bit2,
bit5, bit8, bit10, bit12
 If multiple bits in the source address is 1, the low side is ignored, and if the source address is
0, the instruction will not be executed.
 When the driver input is OFF, the instruction is not executed and the coding output is
unchanged.
 When n ≤ 3, the high 8 bits in D0 are neglected.
 When n=3, the encoding object has 2
3
= 8 bits, that is, bit7 ~ bit0 in D0. The encoding result
is stored in the lower 3 bits in D1, that is, bit2 ~ bit0.
 When bit5 and bit2 in D0 are both 1, bit2 is ignored, and bit5 is coded, bit2-bit0 represent 5,
bit2 and bit0 are 1.
< is word soft component > n≤4
D0ENCO D1 K4
X1
n
S· D·
 If the number of bits in the source address is 1, the low side is ignored, and if the source
address is 0, the instruction will not be executed.
 When the driver input is OFF, the instruction is not executed and the coding output is
unchanged.
 n = 4, the encoded object has 2
4
=16 bits, that is, bit15 ~ bit0 in D0. The encoding result is
stored in the lower 4 bits in D1, that is, bit3 ~ bit0.
 The highest bit of 1 in D0 is bit14, ignoring all low bits 1, and encoding bit14, bit3-bit0
represent 14, bit3, bit2 and bit1 are 1.
4-8-15 Low bit coding [ENCOL]
1) Summary
Find the position where the low bit is ON.
S·
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
