Xinje XD Series User Manual

297

Read 8 parameters of serial port 2 to HD0~HD7. See sections 6-5-3 for the names and
definitions of specific parameters.

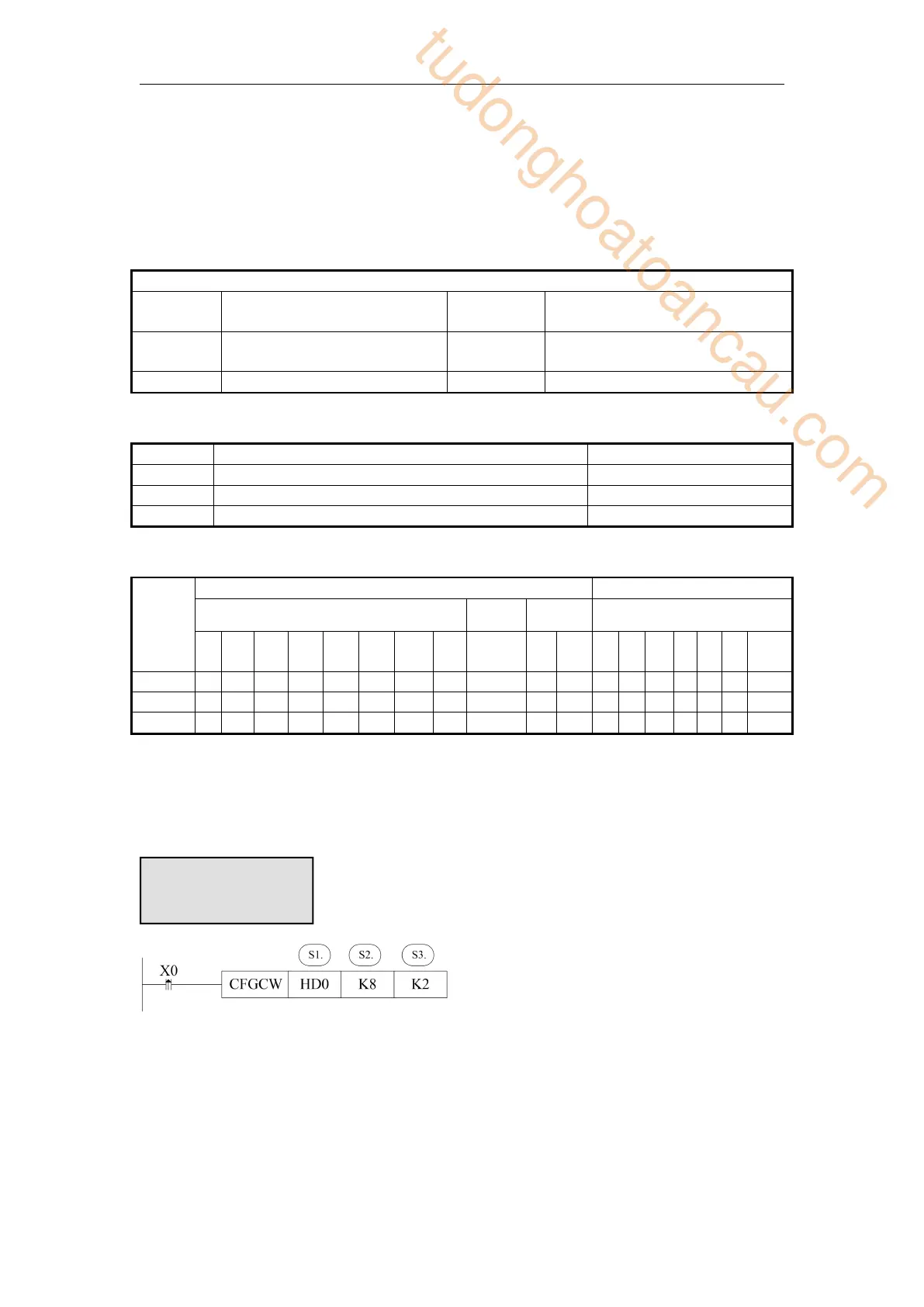

6-5-2 Write serial port parameters [CFGCW]
1)Summary
Write the local specified register value to specific serial port.
Write serial port parameters[CFGCW]
16-bit
instruction
CFGCW
32-bit
instruction
-
Execution
condition
Normally ON/OFF, rising
edge triggering
Suitable
model
XD, XL
Hardware
-
Software
V3.4 and higher version
2)Operand
Operands
Function
Type
S1
Local register starting address
16-bit, BIN
S2
Write serial port parameters number
16-bit, BIN
S3
Serial port no.
16-bit, BIN
3)Suitable soft component
Operan
ds
Word soft elements
Bit soft elements
System
Consta
nt
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.
m
S1
●
S2
●
●
●
S3
●
K
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M, HM, SM; S includes S, HS; T
includes T, HT; C includes C, HC.
 Operator S2: The number of registers used to write serial parameters is generally 8
(XD5E/XDME series is 9).
 Operator S3: Serial port range: K0 ~ K5. K0: Port0, K1: Port1, K2: Port2 or Port2-
RS232 or Port2-RS485, K3: Port3, K4: Port4, K5: Port5.
 Write HD0~HD7 parameters to serial port 2. See sections 6-5-3 for the names and
definitions of specific parameters.
Function and action
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
