Xinje XD Series User Manual

12

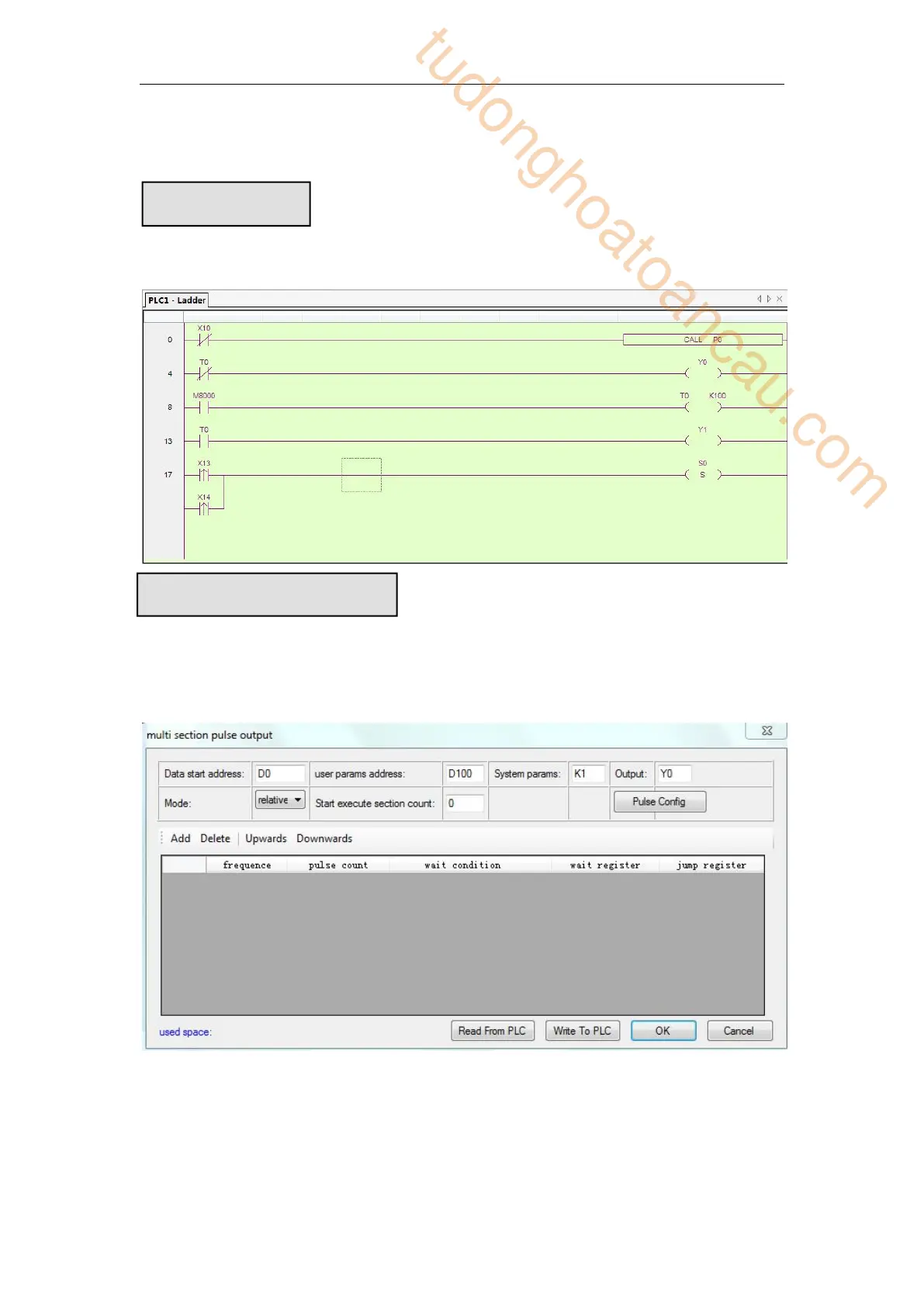

1-3 Programming mode
The two kinds of programming language can be input directly in the editing window. The
ladder chart window has hint function which improves the programming efficiency greatly.
Some instruction is complicated to use, like pulse output, PID etc. XDPPro software has the
configuration window for these special instructions. User just needs to input parameters in the
configuration window without remembering complicated instructions. The following window
is multi section pulse output.
For the details of instruction configuration, please refer to XD/XL series PLC user manual
【
software part
】
.
Direct Input
Instruction Configuration
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
