Xinje XD Series User Manual

51

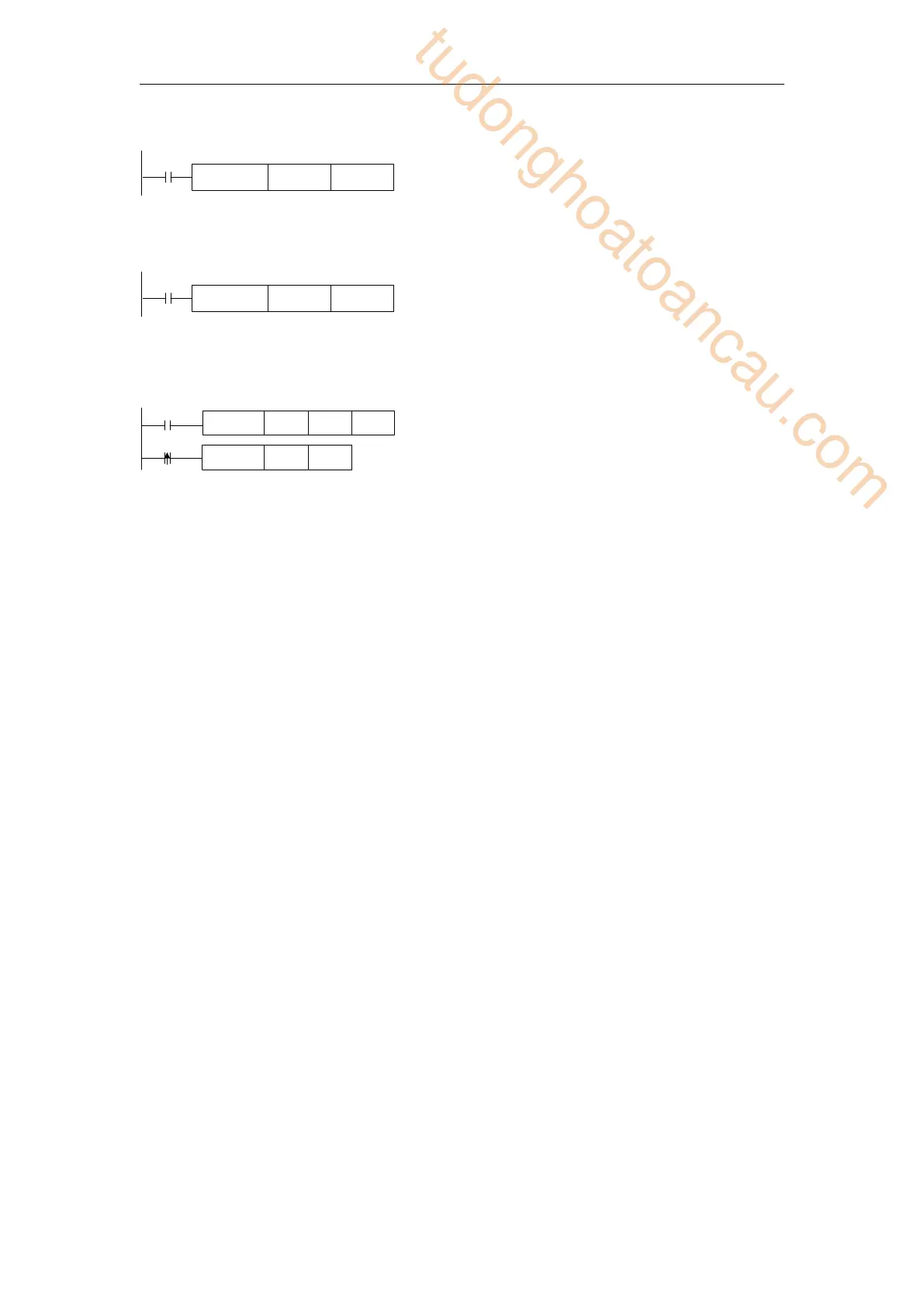

Data transfer
MOV D0 D10
M0
Read the timer and counter
MOV C10 D0
M0
As the set value of timer and counter
TMR_A T0 D0
X0
CNT HC0 D4
X1
D2
Note: The range of soft components mentioned above is the valid range of PLC in the X-NET
communication mode. In the MODBUS communication mode, some relays can not read and
write. The specific usable range is shown in chapter 6-2-3.
2-9-1 Word consist of bits
One of the coils from X0 to X17 is ON, Y0 will be ON.
Programming method one:
When M0 is ON, transfer the value of D10 to D0
When M0 is ON, move the value of C10 to D0.
When X0 is ON, T10 starts to work, T0 will set ON when
D0 value is equal to timer value, time unit is D2.
X1 is ON, HC0 starts to work, HC0 will set ON when D4
value is equal to counter value.
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
