Xinje XD Series User Manual

303
V3.2 and higher version software can choose auto tune mode: step response or critical
oscillation.
7-3-1 Register and their functions

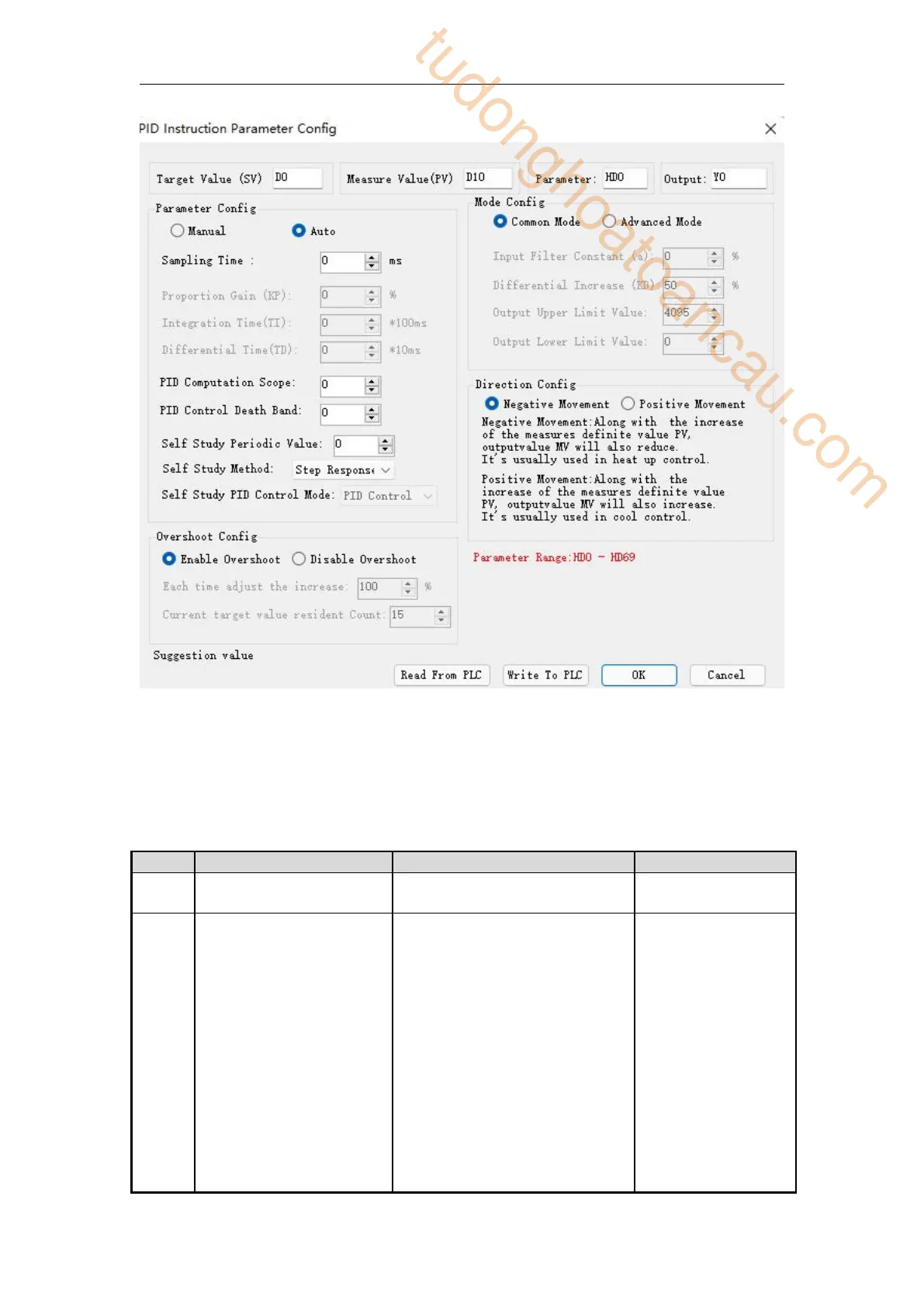

PID control instruction’s relative parameters ID, please refer to the below table:
ID
Function
Description
Memo
S3
Sampling time
Whatever it is manual or auto
mode, all needs to set
32bits without sign,
Unit: ms
S3+2
Mode setting
bit0
：
0
：
negative action;
1
：
positive action
bit1~bit6 not usable
bit7
：
0
：
manual PID;
1
：
auto tune PID
bit8
：
1
：
auto tune successful
flag
bit9~bit10
：
auto tune method
00
：
step response
01
：
critical oscillation
bit11~bit12
：
not useful
bit13~bit14 auto tune PID mode
(valid in critical oscillation
