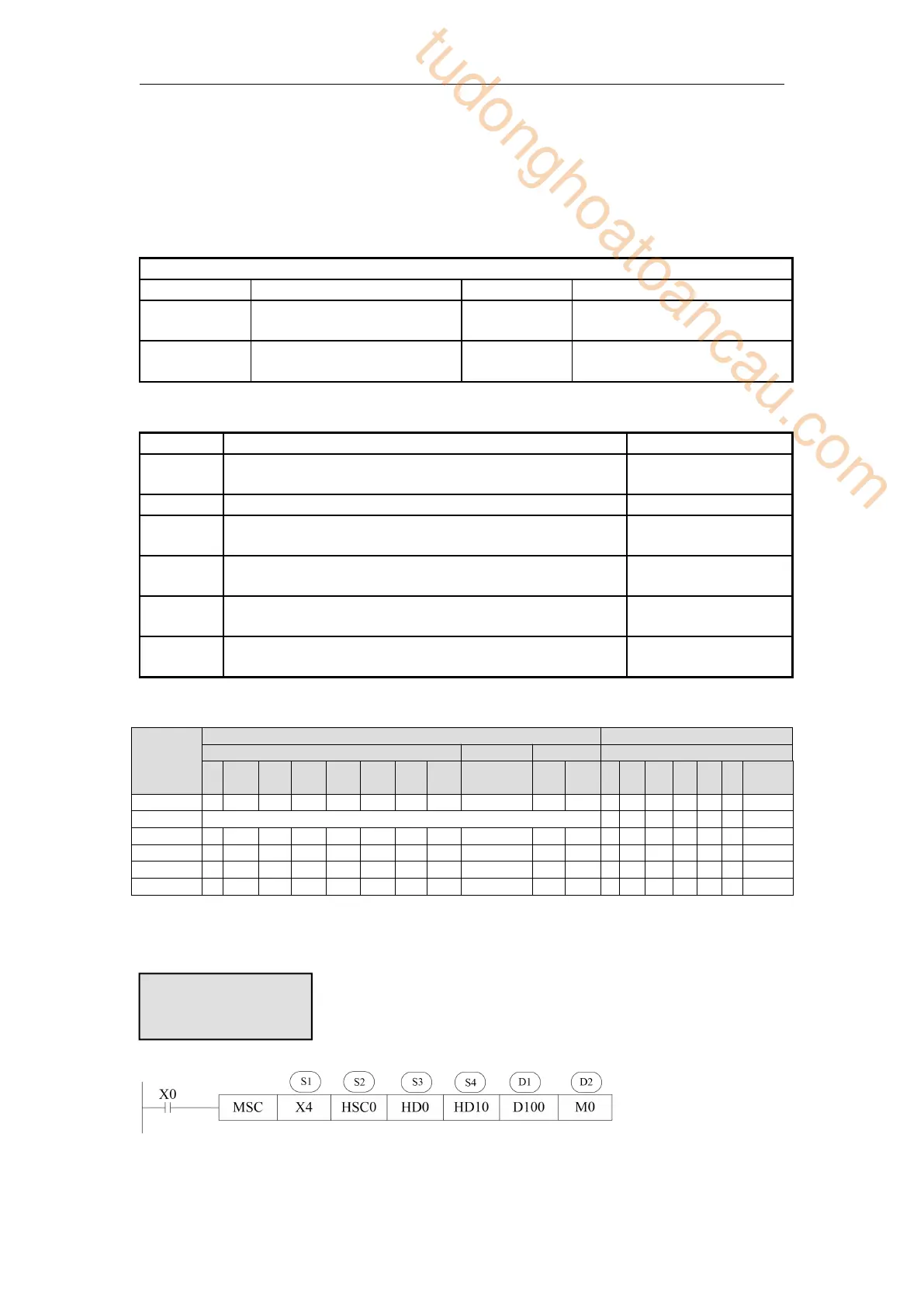

10-6 Multi station control[MSC]
1) Summary
Grab the encoder value according to the trigger input, calculate and save the entry value and
exit value of the workpiece in each station, compare the stored value of each workpiece in
each station with the current value of the encoder, and output the comparison result.
Multi station control[MSC]
16 bits
-
32 bits
MSC
Execution
condition
Normally ON/OFF
Suitable
Models
XD5, XDM, XDH, XD5E,
XDME, XL5E, XLME
Hardware
requirement
-
Software
requirement
-
2) Operands
Operands
Function
Model
S1
Specify the software component address number of the
command trigger input point
bit
S2
Specify high speed counter number
32 bits, BIN
S3
Specify the number of stations and workpieces, and the
first address number of the register of the filtering time
16 bits, BIN
S4
Specify the first address number of the register for the
reference value and the deviation value
32 bits, BIN
D1
Specify the number of the first address of the register
storing the index value and the comparison value
16/32 bits,BIN
D2
Specify the software component address number of the
output result
bit
3) Suitable soft component
Operands
Word soft elements
Bit soft elements
System
constant
Module
System
D
FD
TD
CD
DX
DY
D
M
DS
K/H
ID
QD
X
Y
M
S
T
C
Dn.m
S1
●
S2
Only HSC
S3
●
S4
●
D1
●
D2
●
●
*Note: D includes D, HD. TD includes TD, HTD. CD includes CD, HCD, HSCD, HSD. DM
includes DM, DHM. DS includes DS, DHS. M includes M, HM, SM. S includes S and HS. T
includes T and HT. C includes C and HC.
