Xinje XD Series User Manual

196

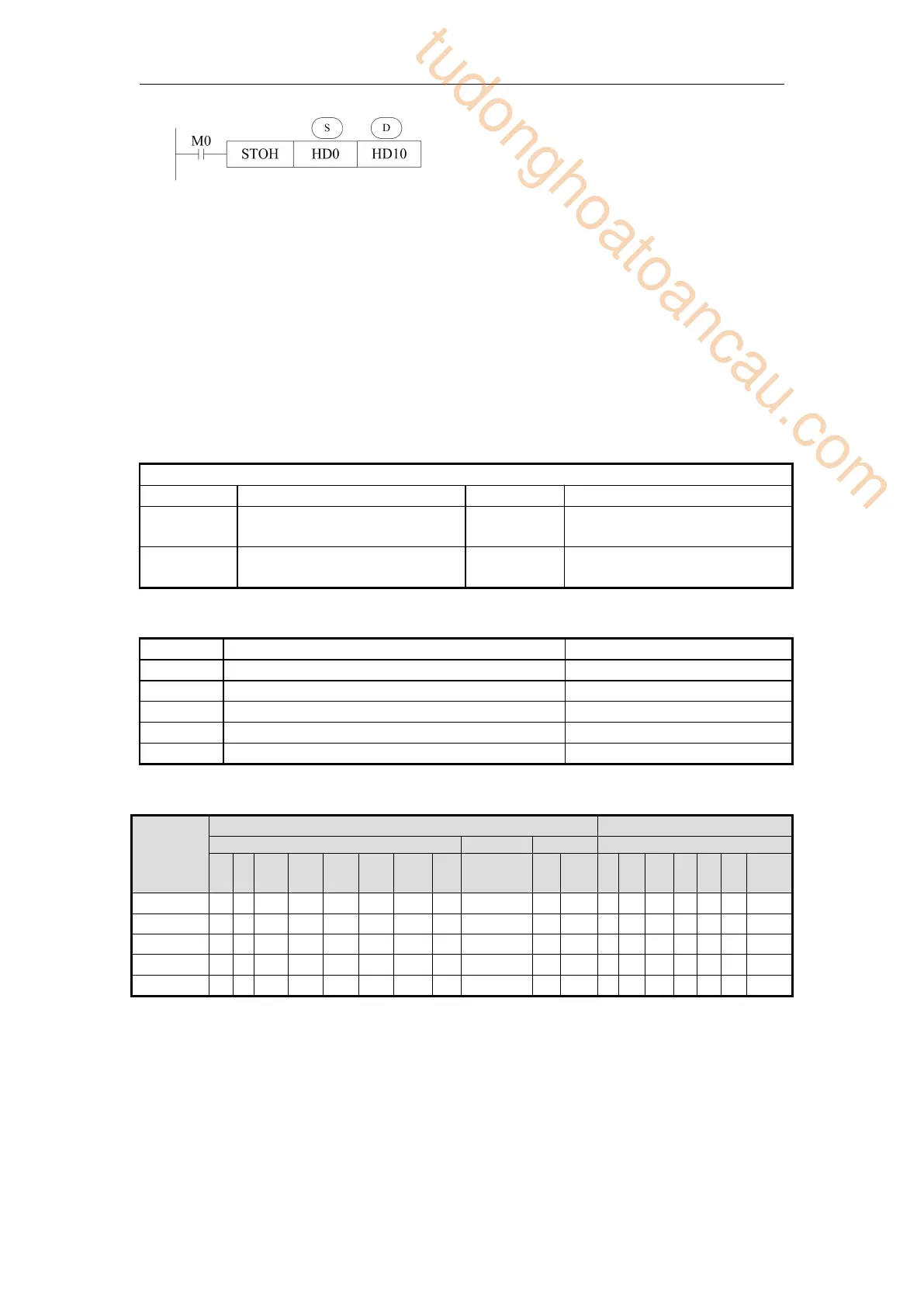

 When the M0 switches on, it converts clock data (hours, minutes and seconds) in three
consecutive registers led by HD0 into second data, which is stored in register HD10 (double
word).
 Note: the correspondence of registers is fixed, that is, they are stored in order of hours,
minutes and seconds.
 The operands S occupy three registers. Do not use them for other purposes.
4-10-9 Clock compare [TCMP]
1) Summary
Compare three continuous clocks time.
Clock compare [TCMP]
16 bits
TCMP
32 bits
-
Condition
Normally ON/OFF,
rising/falling edge
Suitable
model
XD, XL
Hardware
Version V3.4.6 (or V3.5.3a) or
later
Software
Version V3.5.3 or later
2) Operands
Operands
Function
Model
S1
Soft component address for hours
16 bits, BIN
S2
Soft component address for minutes
16 bits, BIN
S3
Soft component address for seconds
16 bits, BIN
S4
PLC real time clock information first address
16 bits, BIN
D2
The compare result first address
bit
3) suitable soft component
Operands
Word soft elements
Bit soft elements
System
Constant
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.
m
S1
●
●
S2
●
●
S3
●
●
S
●
●
D
●
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M, HM, SM; S includes S, HS; T
includes T, HT; C includes C, HC.
(HD0, HD1)→(HD10，HD11，HD12)
second → hour，minute，second
