Xinje XD Series User Manual

214
SM0
DMOV HSC0
D10
D≥
D10 K1000
（ ）
D≥
D20 K1000
S
CNT_AB HSC0 K999999999
SM0
DMOV HSC2
D20
CNT_AB HSC2 K999999999
Y0

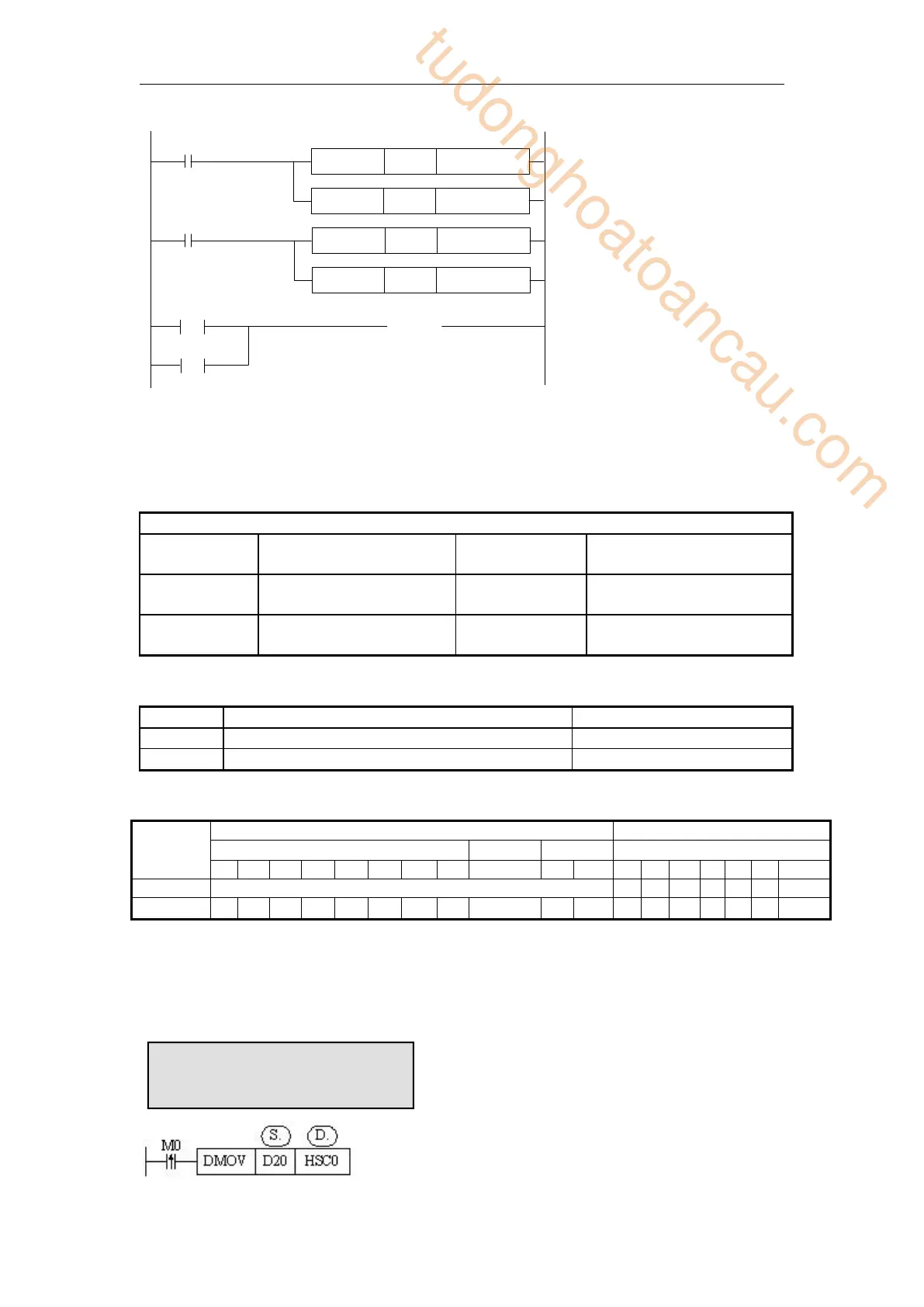

5-7-5 Write HSC value [DMOV]
1)Instruction Summary
Write the specified register value into HSC;
Write HSC value [DMOV]
16 bits
Instruction
-
32 bits
Instruction
DMOV
Execution
condition
Normally ON/OFF,
rising/falling edge
Suitable models
XD, XL (exclude XD1,
XL1)
Hardware
requirement
Software
requirement
-
2)Operands
Operands
Function
Type
S
Specify HSC code
32 bits, BIN
D
Specify the read/written register
32 bits, BIN
3)suitable soft components
Operands
Word soft elements
Bit soft elements
System
Constant
Module
System
D
FD
TD
CD
DX
DY
DM
DS
K/H
ID
QD
X
Y
M
S
T
C
Dn.m
S1
Only can be HSC
S2
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD;
DM includes DM, DHM; DS includes DS, DHS. M includes M,HM,SM
；
S includes S,HS
；
T includes T,HT
；
C includes C, HC.
