Xinje XD Series User Manual

136
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD;
DM includes DM, DHM; DS includes DS, DHS. M includes M,HM,SM;S includes S,HS;T
includes T,HT;C includes C, HC.

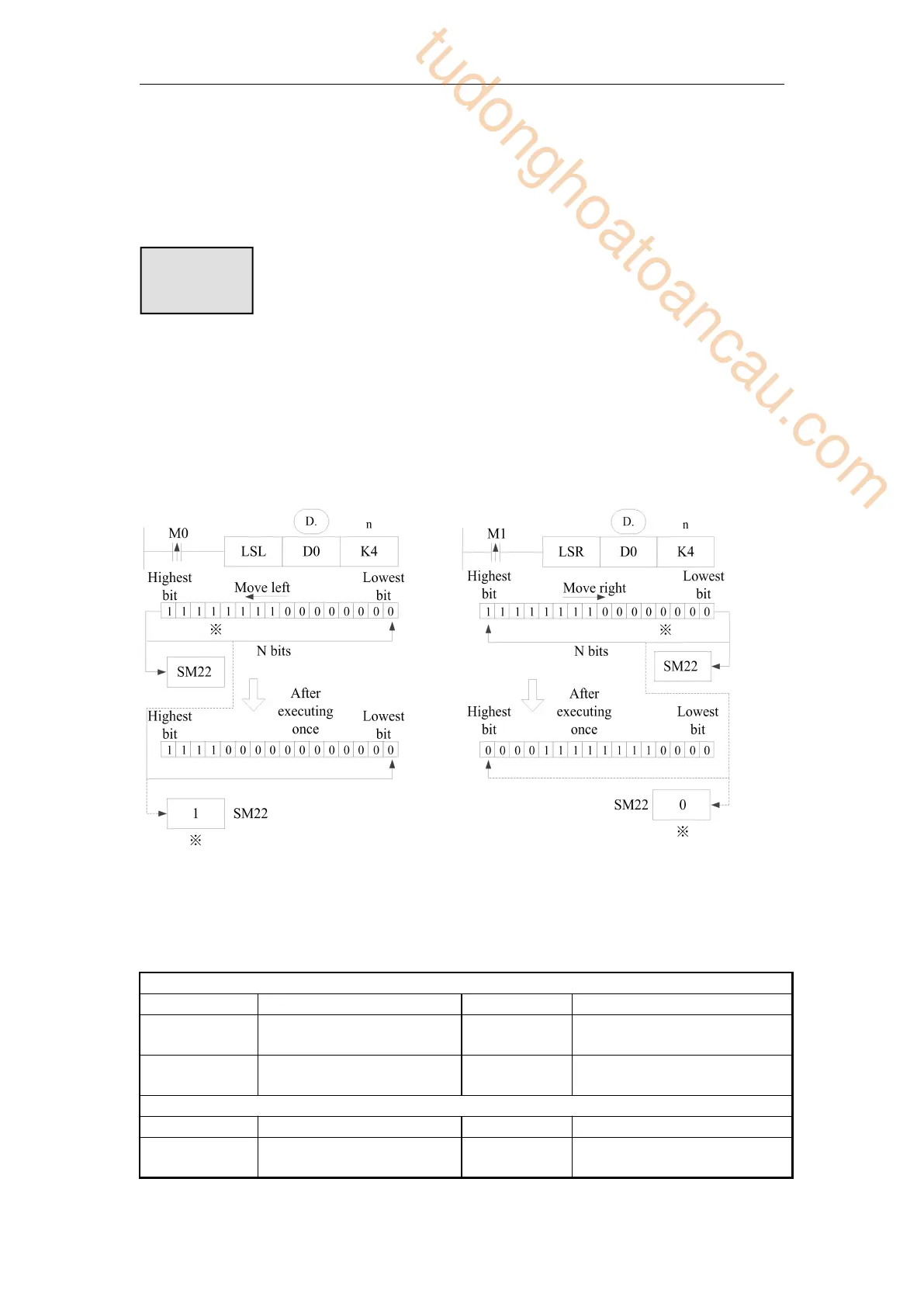

 After executing LSL once, the lowest bit is filled with 0; the last bit is stored in carry flag.
 LSL meaning and operation are the same to SHL.
 After executing LSR once, the highest bit is filled with 0; the last bit is stored in carry flag.
 LSR and SHR are different, LSR add 0 inthe highest bit when moving, SHR all bits are
moved.
< Logic shift left > < Logic shift right >
4-7-3 Rotation shift left [ROL,DROL], Rotation shift right [ROR,DROR]
1)Summary
Cycle shift left or right
Rotation shift left [ROL, DROL]
16 bits
ROL
32 bits
DROL
Execution
condition
rising/falling edge
Suitable
Models
XD, XL
Hardware
requirement
-
Software
requirement
-
Rotation shift right [ROR, DROR]
16 bits
ROR
32 bits
DROR
Execution
condition
rising/falling edge
Suitable
Models
XD, XL
Description
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
