Xinje XD Series User Manual

320
NAME_C D0 M0
X0
S1·
S2· S3·
S1 is the function name. It consists of numbers, letters and underlines. The first character
can’t be number, and the name length should be <=9 ASCII characters.
The name can be the same with PLC’s self instructions like LD, ADD, SUB, PLSR etc.
The name can’t be the same with the function blocks existing in current PLC;
8-3 Operation Steps
1
．

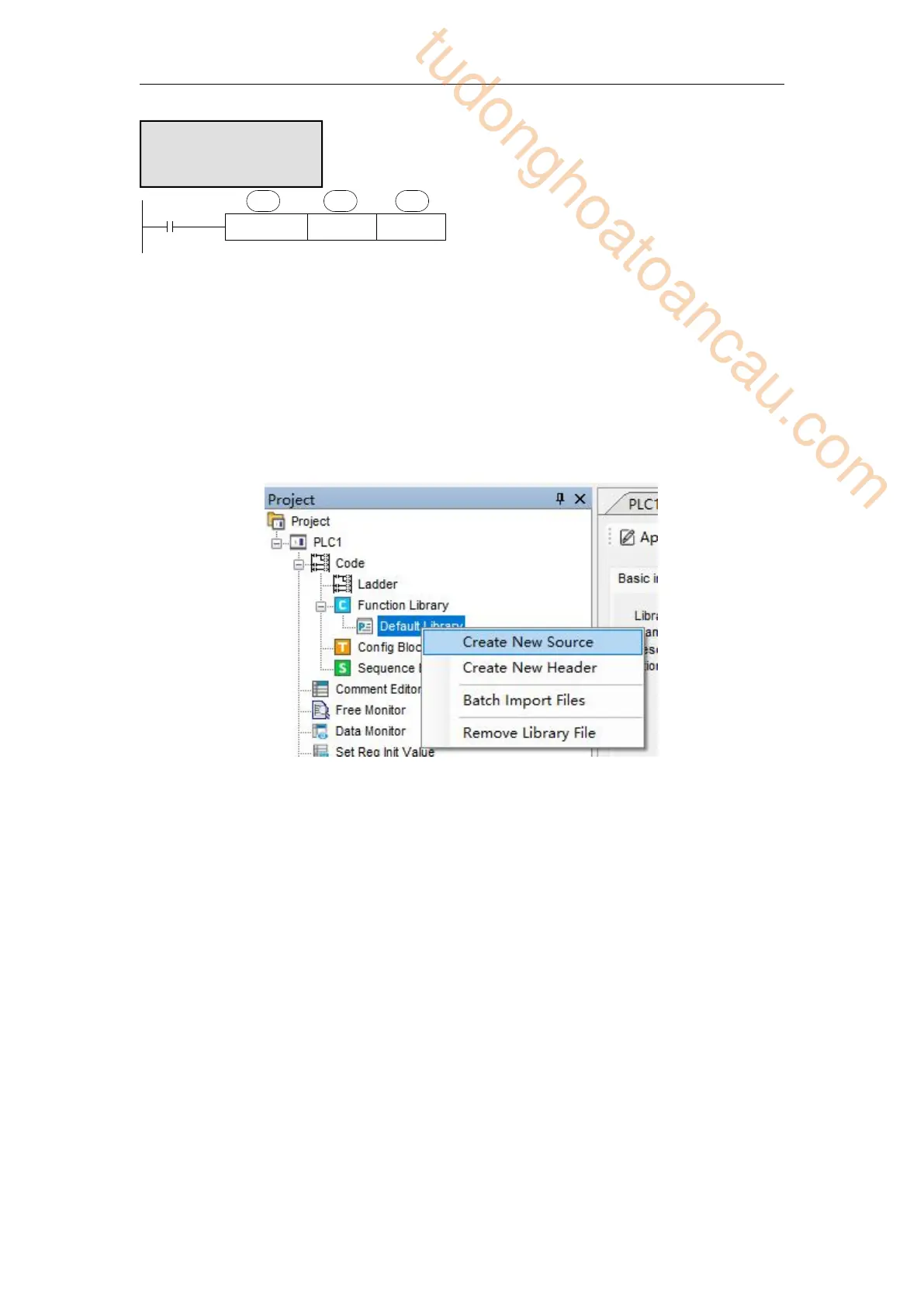

Open PLC edit tool, in the left “Project” toolbar, choose “Func Block”, right click it and
choose “Add New Func Block”.
2
．
See graph below, fill in the information of your function;
Function and Action
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
