9-4 Running form of the BLOCK

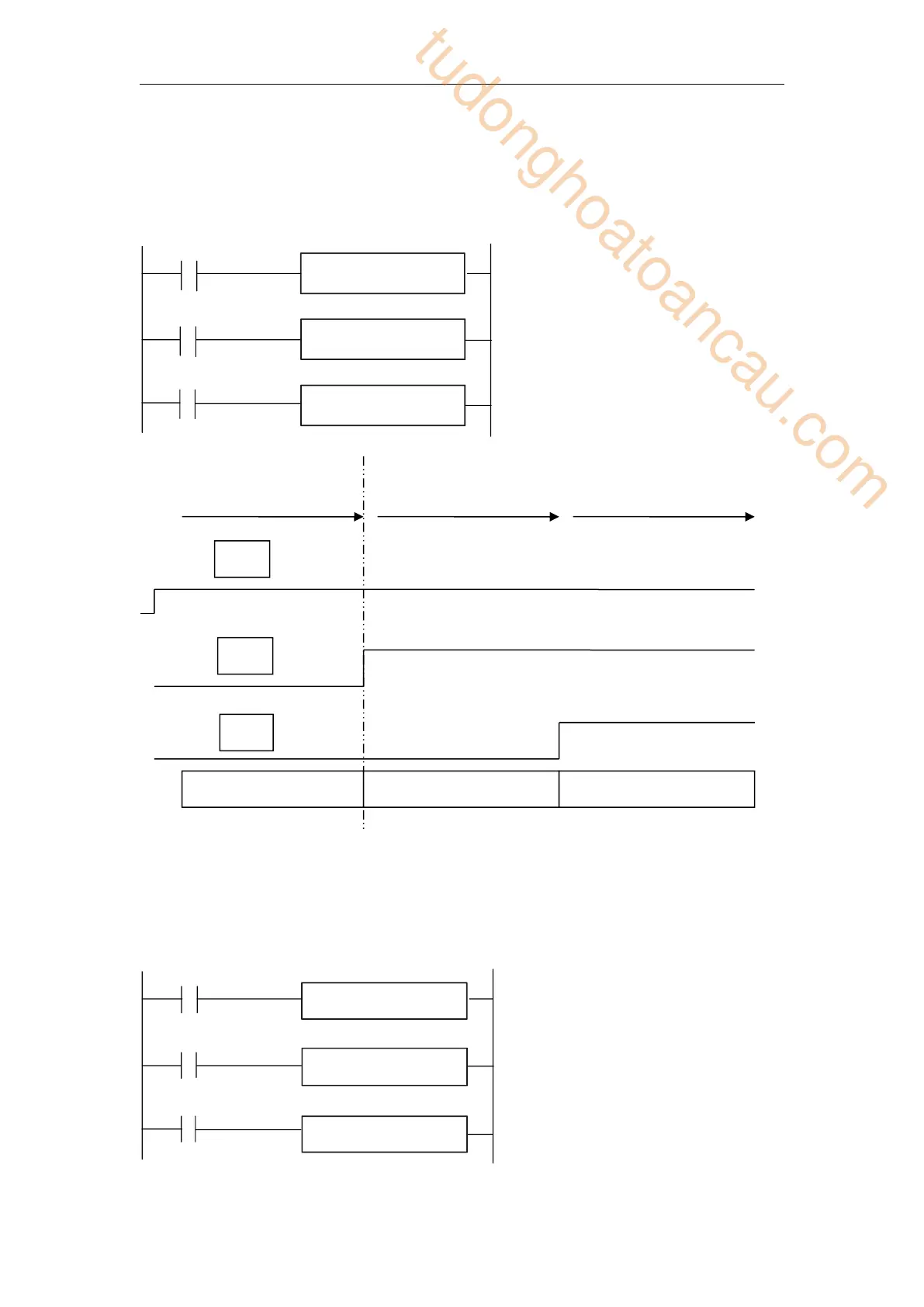

1. If there are many blocks, they run as the normal program. The block is running when the
condition is ON.
(A) The condition is normal ON, normal OFF coil
M
1
SBLOCK
Sequence block 1
SBLOCK
Sequence block 2
SBLOCK
Sequence block 3
M
2
M
3
Scanning period 1
Scanning period 2
Scanning period 3
Block1
Block1, Block2
Block1, Block2, Block3
M1
M2
M3
Note: When the program in the BLOCK is not executed and the triggering condition M is
disconnected, the BLOCK will not stop immediately, but will complete the last scan, and will
stop after the rest of the program has been executed.
(B) The condition is rising or falling edge of pulse
M
1
SBLOCK
Sequence block 1
SBLOCK
Sequence block
2
SBLOCK
Sequence block
3
M
2
M
3
↑
↑
↑
