When M1, M2, M3 is from OFF to ON, all these blocks will run once.
2. The instructions in the block run in sequence according to the scanning time. They run one
after another when the condition is ON.
(A) Without SKIP condition

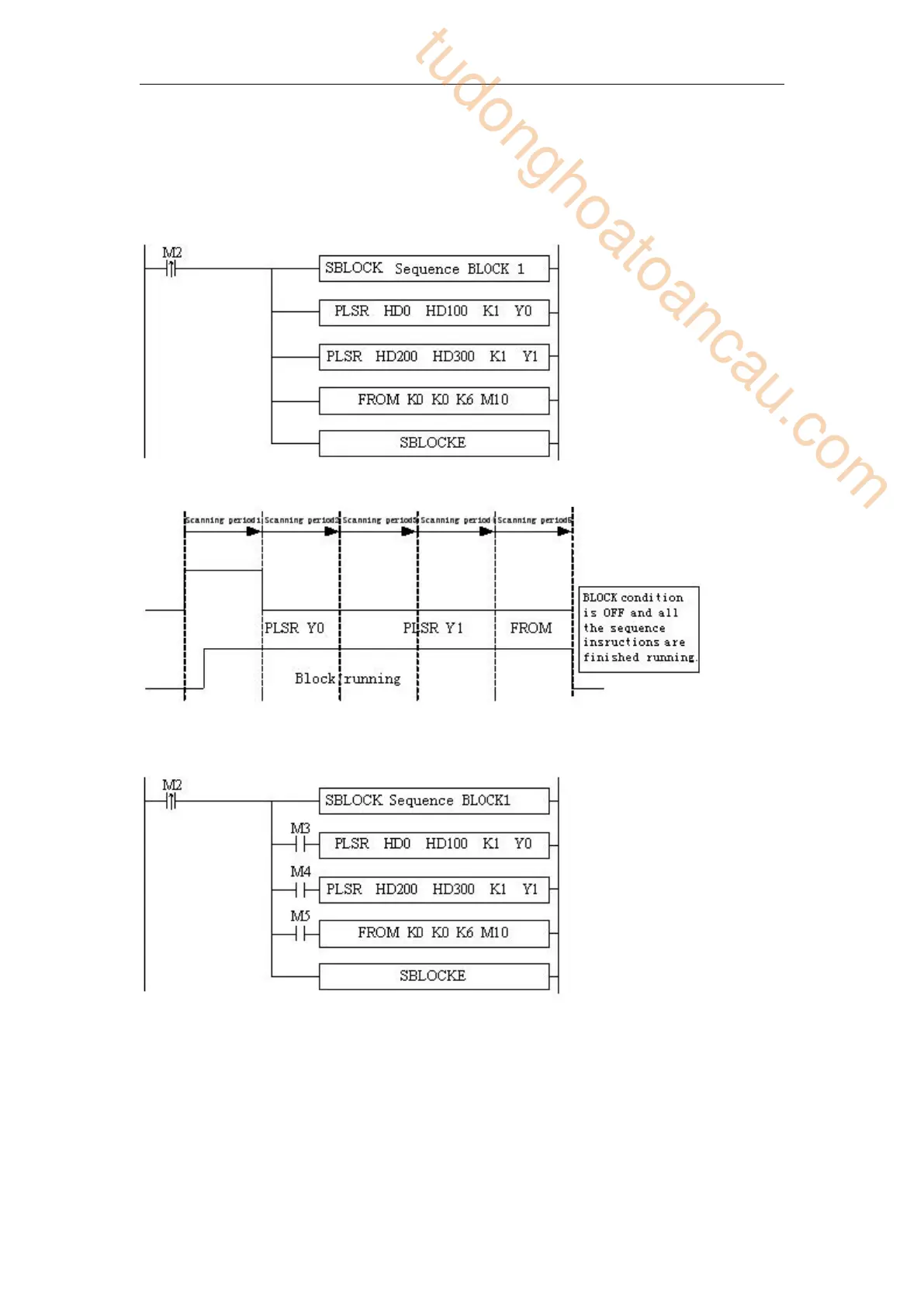

The instructions running sequence in block 1 is shown as below:
(B) With SKIP condition
Explanation:
A) When M2 is ON, block 1 is running.
B) All the instructions run in sequence in the block.
C) M3, M4, M5 are the sign of SKIP, when they are ON, this instruction will not run.
D) When M3 is OFF, if no other instructions use this Y0 pulse, PLSR HD0 HD100 K1 Y0
will run; if not, the PLSR HD0 HD100 K1 Y0 will run after it is released by other instructions.
