Xinje XD Series User Manual

40

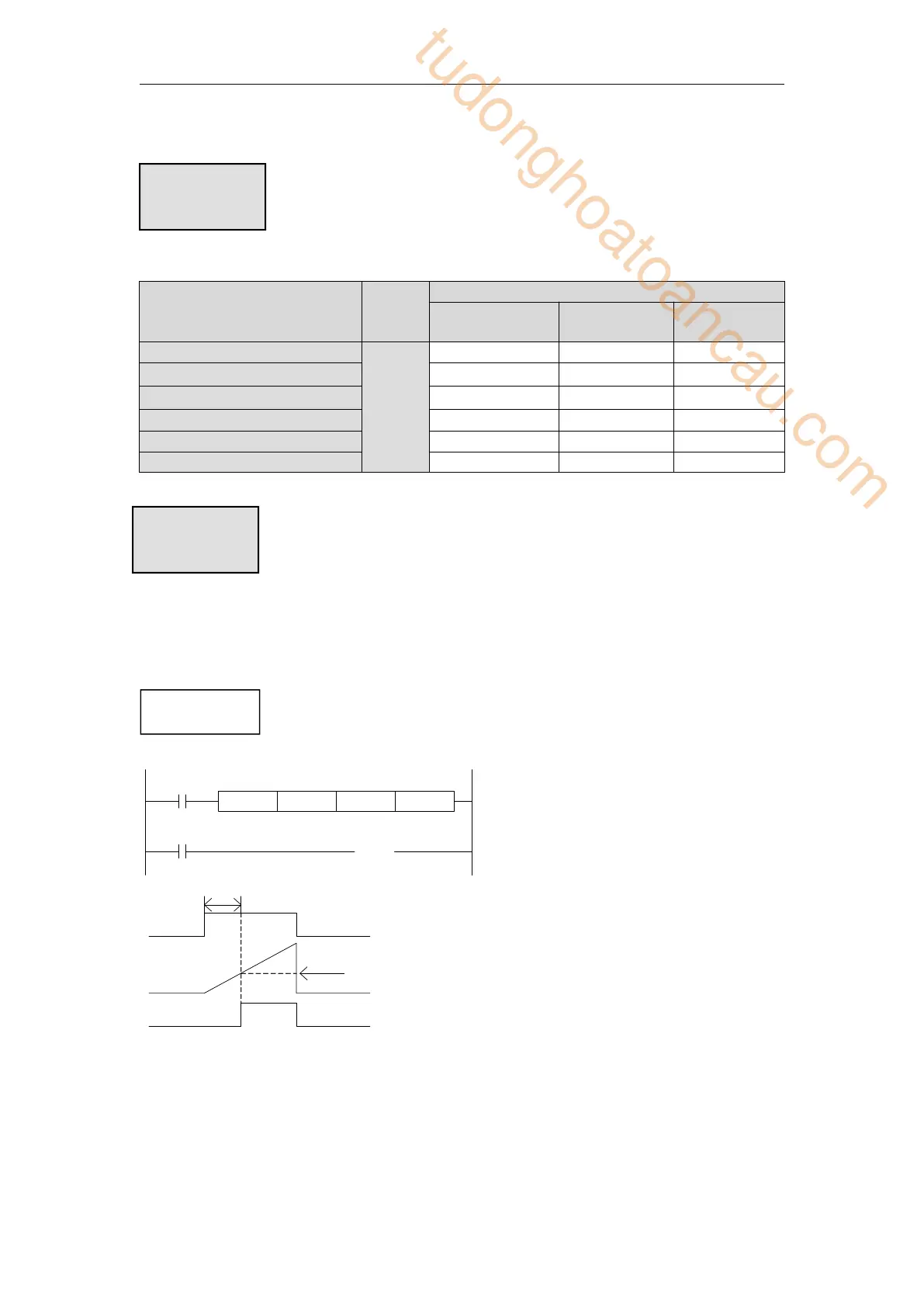

2-7 Timer (T, HT)
The timer addresses of XD/XL series PLC are in the form of decimal; please see the
following table:
Series
Name
Range
Normal
Power-off
holding
Precise timer
XD1/XD2/XD3
T
HT
ET
T0~T575
HT0~HT95
ET0~ET24
XD5/XDM/XDC/XD5E/XDME
T0~T4999
HT0~HT1999
ET0~ET24
XDH
T0~T19999
HT0~HT1999
-
XL1/XL3
T0~T575
HT0~HT95
ET0~ET24
XL5/XL5E/XLME
T0~T4999
HT0~HT1999
ET0~ET24
XLH
T0~T19999
HT0~HT1999
-
The timers accumulate the 1ms, 10ms, 100ms pulse, the output contactor activates when the
accumulation reaches the set value;
TMR instruction is for common timers. The set value can be constant (K) or data register (D).
X0
T0
X0
Y0
2s
( )
Y0
Current
value
Set
value
TMR T0 K200 K10
Address List
Function
If X0 is ON, then T0
accumulates 10ms pulse based
on the current value; when the
accumulation value reaches
the set value K200, the timer
outputactivates. I.e. the output
activates 2s later. If X0 is
OFF, the timer resets, the
output resets;
Normal type
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
