Xinje XD Series User Manual

41
1. Instruction format
Reset the timer and output:
RST T0
S1
S1: timer (T0, HT10)
S2: set time (such as K100)
S3: time unit (K1—1ms, K10—10ms, K100—100ms)
Power-off not retentive, not accumulation
(1) Time unit is 1ms, set time is K100, the real time is 1ms *100=0.1s
TMR T0 K100 K1
X0
TMR T0 D0 K1
X0
X1
MOV K100 D0
Set value is constant K set value is register D
(2) Time unit is 10ms, set time is K10, the real time is 10ms*10=0.1s
TMR T0 K10 K10
X0
TMR T0 D0 K10
X0
X1
MOV K10 D0
Set value is constant K set value is register D
(3) Time unit is 100ms, set time is K1, the real time is 100ms*1=0.1s

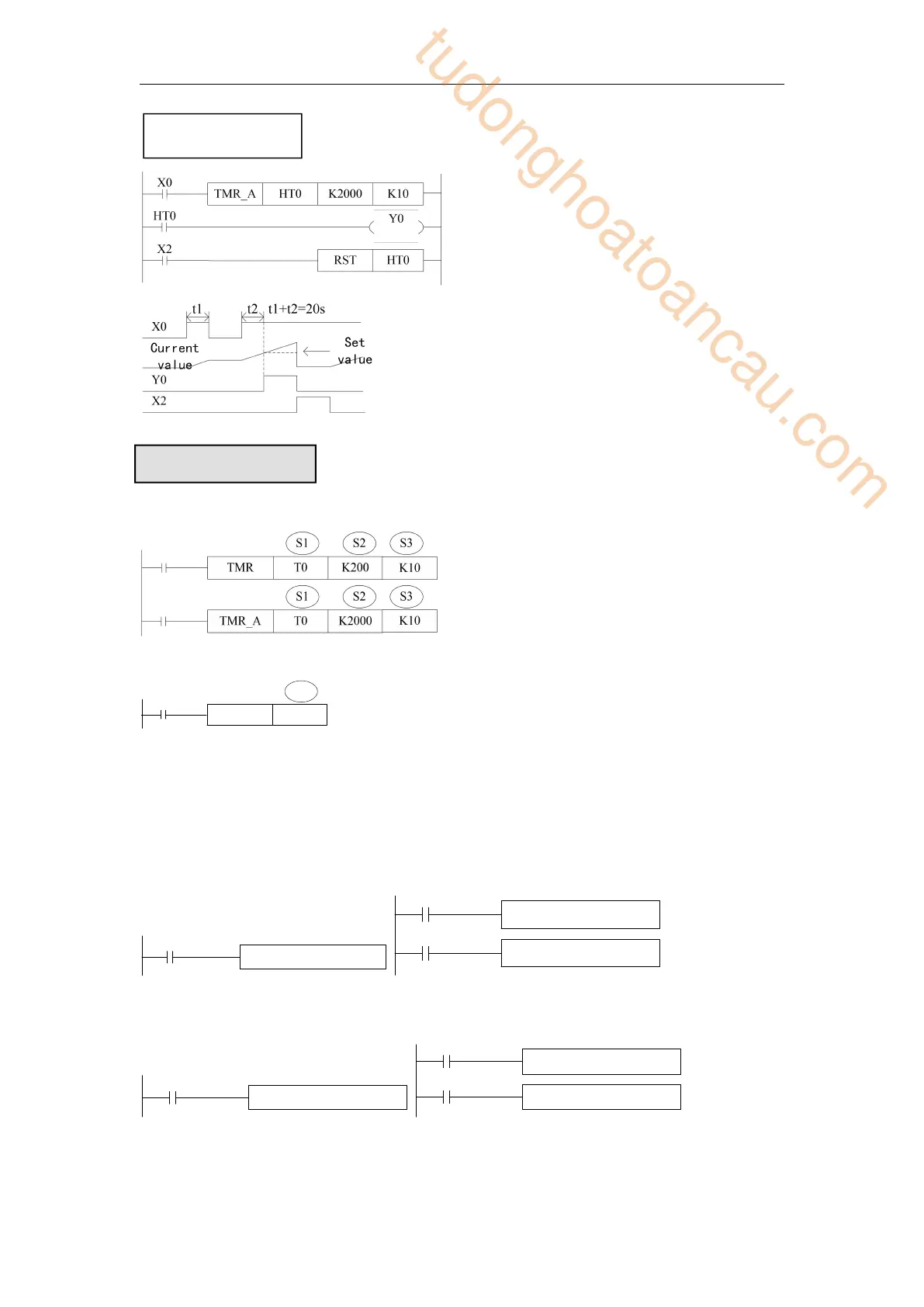

If X0 is ON, HT0 accumulates the
10ms pulse based on the current
value. When the accumulation
value reaches the set value K2000,
the timer outputactivates.
If X0 is suddenly OFF during timer
working, the timer value will be
retentive. Then X0 is ON again, the
timer will continue working.
When X2 is ON, the timer and
output will be reset.
Appoint the set value
Accumulation type
(Not accumulation)
(Accumulation)
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
