144

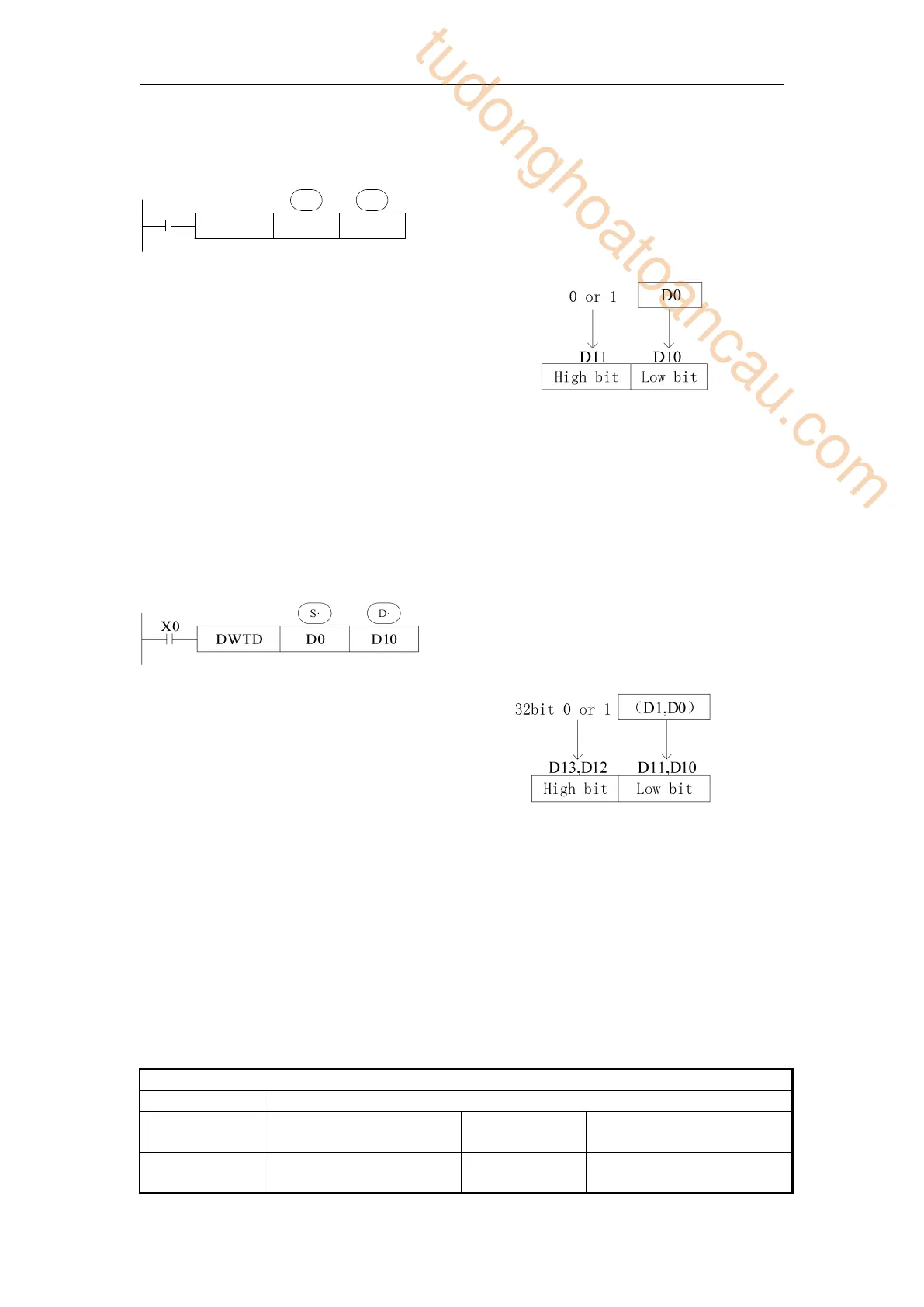

<16 bits instruction>
WTD D0 D10
X0
S· D·
 When single word D0 is positive integer, after executing this instruction, the high bit of
double word D10 is 0.
 When single word D0 is negative integer, after executing this instruction, the high bit of
double word D10 is 1.
 the high bit 0 and 1 is binary value.
<32 bits instruction>

When single word D0 is positive integer, after executing this instruction, the high bit of
four word D10 is 0.

When single word D0 is negative integer, after executing this instruction, the high bit of
four word D10 is 1.
 the high bit 0 and 1 is binary value.
4-8-2 32 bits integer to 64 bits integer batch conversion [BDWTD]
1) Summary
32 bits integer to 64 bits integer batch conversion [BDWTD]
32 bits
BDWTD
Execution
condition
Normal ON/OFF/falling
or rising pulse edge
Suitable
Models
XDH、XLH
Hardware
requirement
Version V3.7.1 or later
Software
requirement
Version V3.7.4a or later
(D0) → (D11, D10)
Single Word Double Word
(D1,D0)→(D13,D12,D11,D10)
Double word four word
