E) After Y0 pulse sending completed, check M4. If M4 is OFF, check Y1 block, if M4 is ON,
check M5. If M5 is OFF, module commmunication will run.

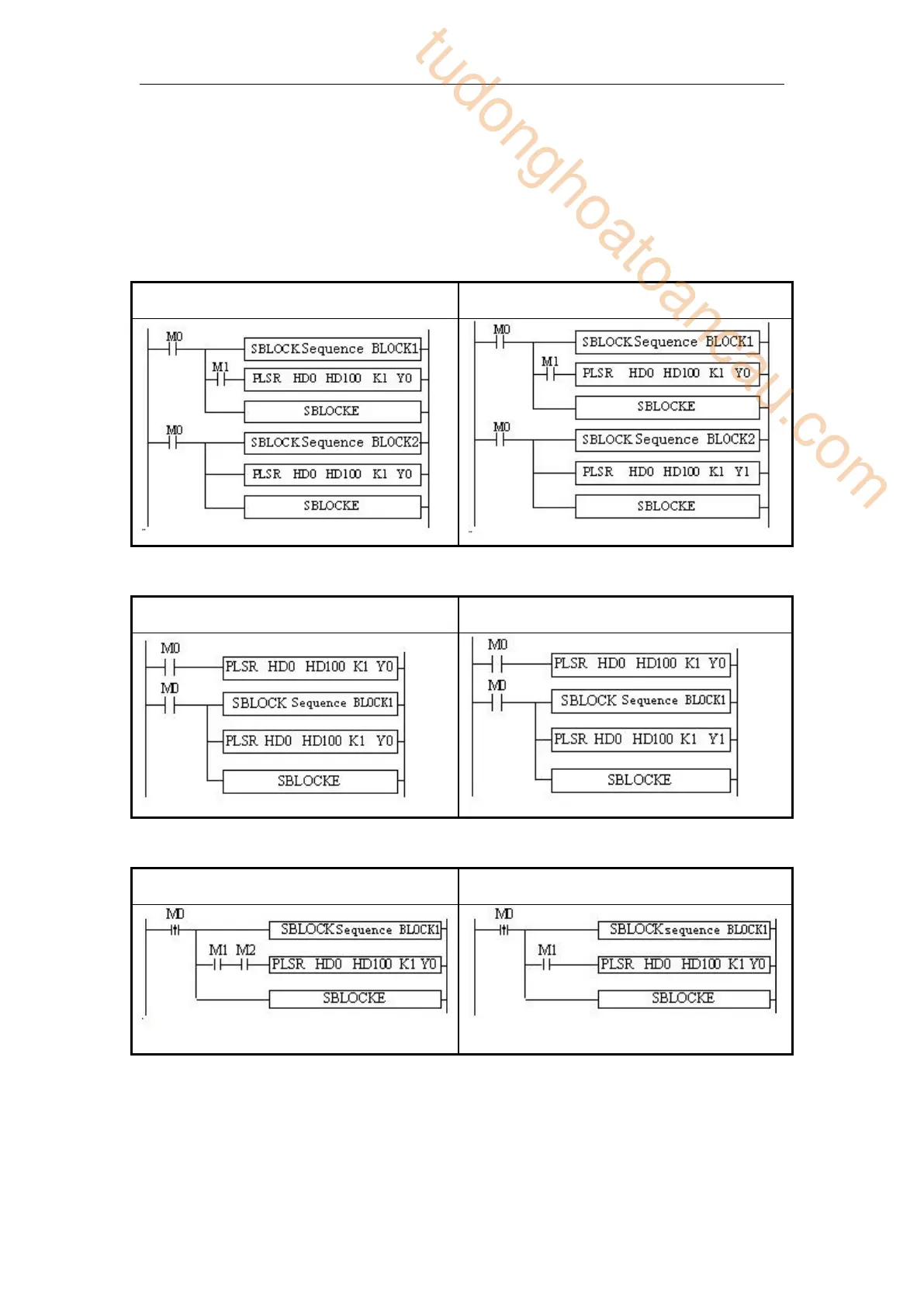

9-5 BLOCK instruction editing rules
In the BLOCK, the instruction editing should accord with some standards.
(1)Do not use the same pulse output terminal in different BLOCK.
NO(×)
YES(√)
(2)Do not use the same pulse output terminal in BLOCK and main program.
NO(×)
YES(√)
(3)There only can be one SKIP condition for one BLOCK instruction.
NO(×)
YES(√)
