Xinje XD Series User Manual

76

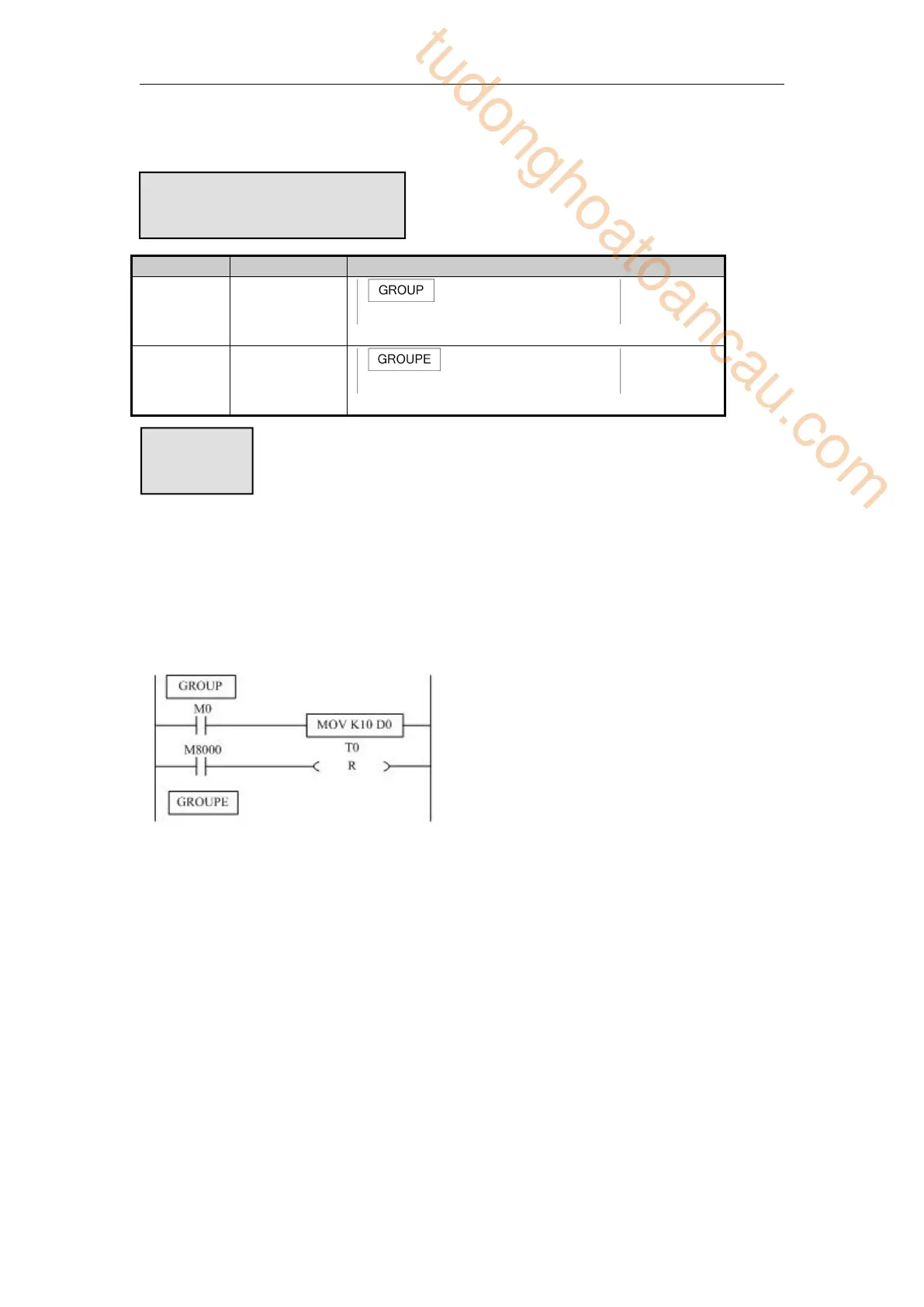

3-16 [GROUP] , [GROUPE]
GROUP and GROUPE should use in pairs.
GROUP and GROUPE don't have practical meaning; they are used to optimize the program
structure. So, add or delete these instructions doesn't affect the program's running;
The using method of GROUP and GROUPE is similar with flow instructions; enter GROUP
instruction at the beginning of group part; enter GROUPE instruction at the end of group part.
3-17 Programming notes
Contactor structure and steps
Even in the sequencial control circuit with the same function, it’s also available to simplify
the program and shorten the program steps according to the contactors’ structure. General
programming principle is: (a) write the circuit with many serial contacts on the top; (b) write
the circuit with many parallel contactors in the left.
Program’s executing sequence
Handle the sequencial control program by
【
From top to bottom
】
and
【
From left to right
】
Sequencial control instructions also encode following this procedure.
Dual output dual coil’s activation and the solution
Mnemonic
Function
Format and Device
GROUP
GROUP
Devices: None
GROUPE
GROUP END
Devices: None
Generally, GROUP and GROUPE
instruction can be programmed according
to the group's function. Meantime, the
programmed instructions can be FOLDED
or UNFOLDED. To a redundant project,
these two instructions are quite useful.
Statements
Mnemonic and Function
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
