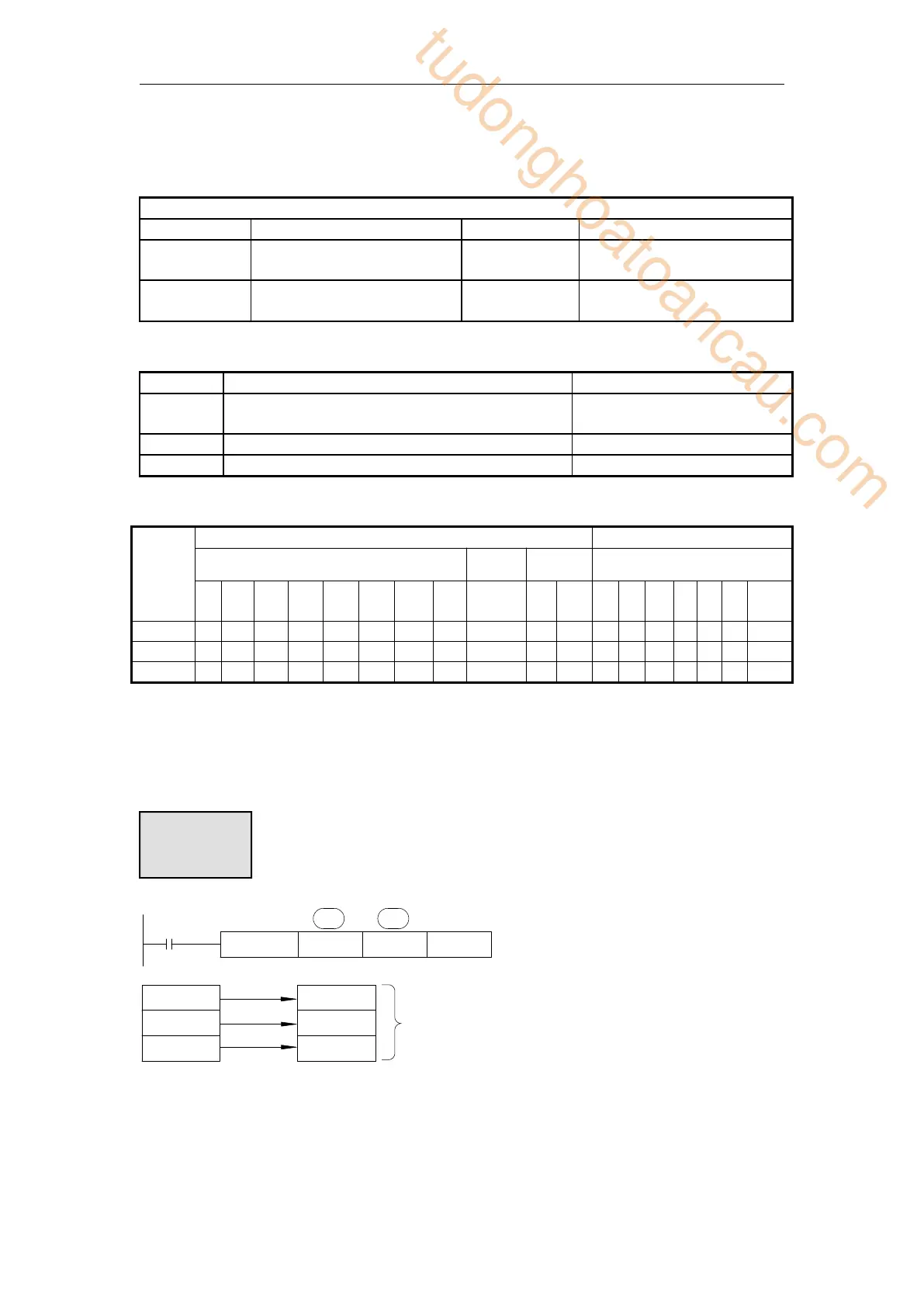

4-5-5 Data block Move [PMOV]
1)Summary
Move the specified data block to the other soft components
Data block mov[PMOV]
16 bits
PMOV
32 bits
-
Execution
condition
Normally ON/OFF coil,
rising/falling edge
Suitable
Models
XD, XL
Hardware
requirement
-
Software
requirement
-
2) Operands
Operands
Function
Data Type
S
Specify the source data block or soft component
address
16 bits, BIN; bit
D
Specify the target soft components address
16 bits, BIN; bit
n
Specify the data quantity
16 bits, BIN;
3) Suitable soft components
Operan
ds
Word soft elements
Bit soft elements
System
Consta
nt
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.
m
S
●
D
●
n
●
●
●
●
●
●
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M,HM,SM；S includes S,HS；T
includes T,HT；C includes C, HC.
Move the source data block to target data block, the data quantity is n
PMOV D5 D10 K3
X0
n
S· D·
D5
D6
D7
D10
D11
D12
n=3
The function of PMOV and BMOV is mostly the same, but the PMOV execution speed is
faster.
PMOV finish in one scan cycle, when executing PMOV, close all the interruptions.
Mistake may happen if the source address and target address are overlapped.
Description
