364

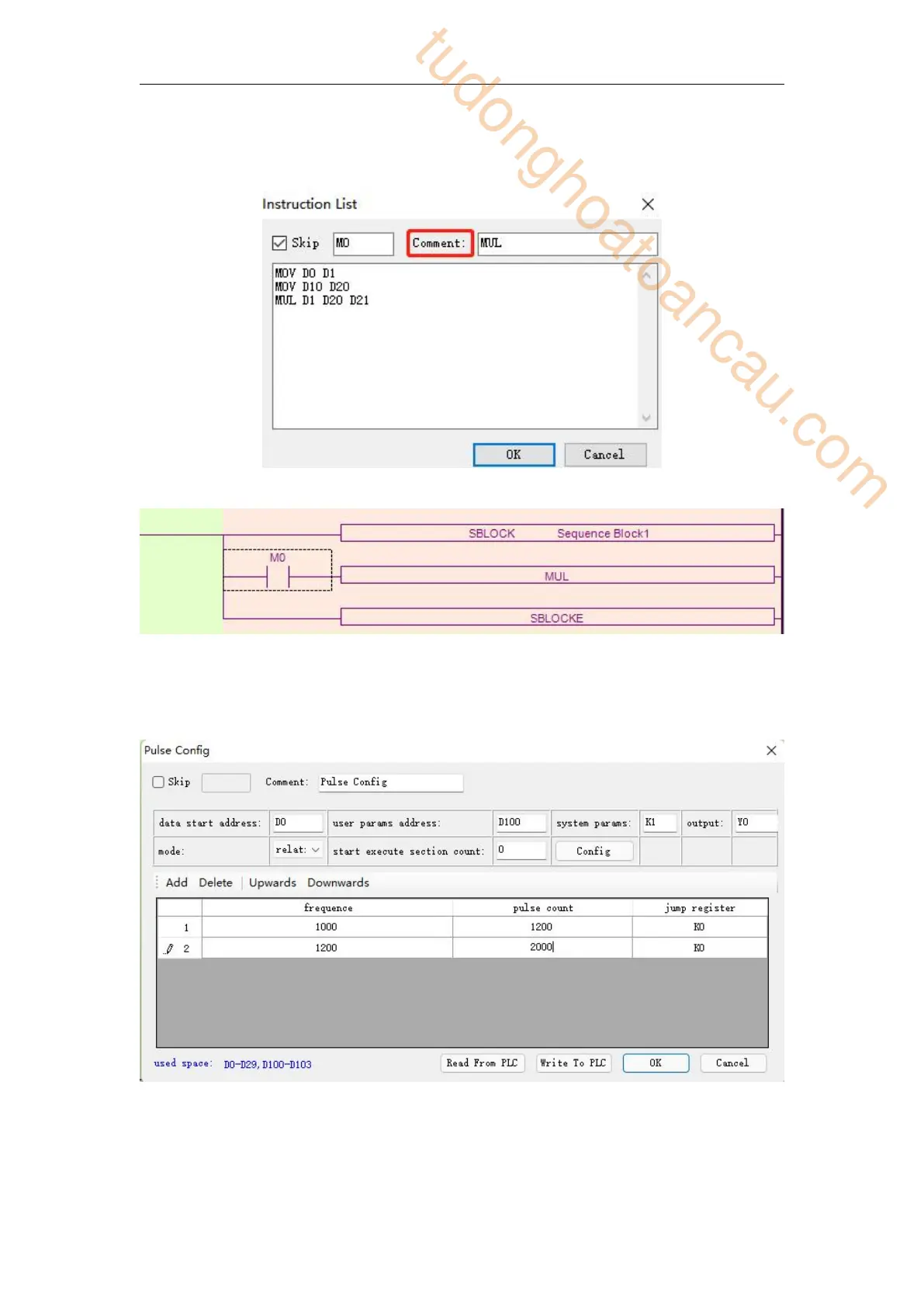

In the above figure, the command segment is not expanded in the ladder diagram, but its
annotation can be modified according to the function of the segment, as shown in the
following figure:
The modified block phrase has also changed accordingly, as shown in the following figure:
9-3-2 Pulse Item
Open the ‘pulse item’ in the same way:
In the following BLOCK, we add two impulse instructions:
