Xinje XD Series User Manual

189
and week, it is not recommended to use BMOV or PMOV commands to read the clock data
in batches if the read clock data is used for comparison and calculation.

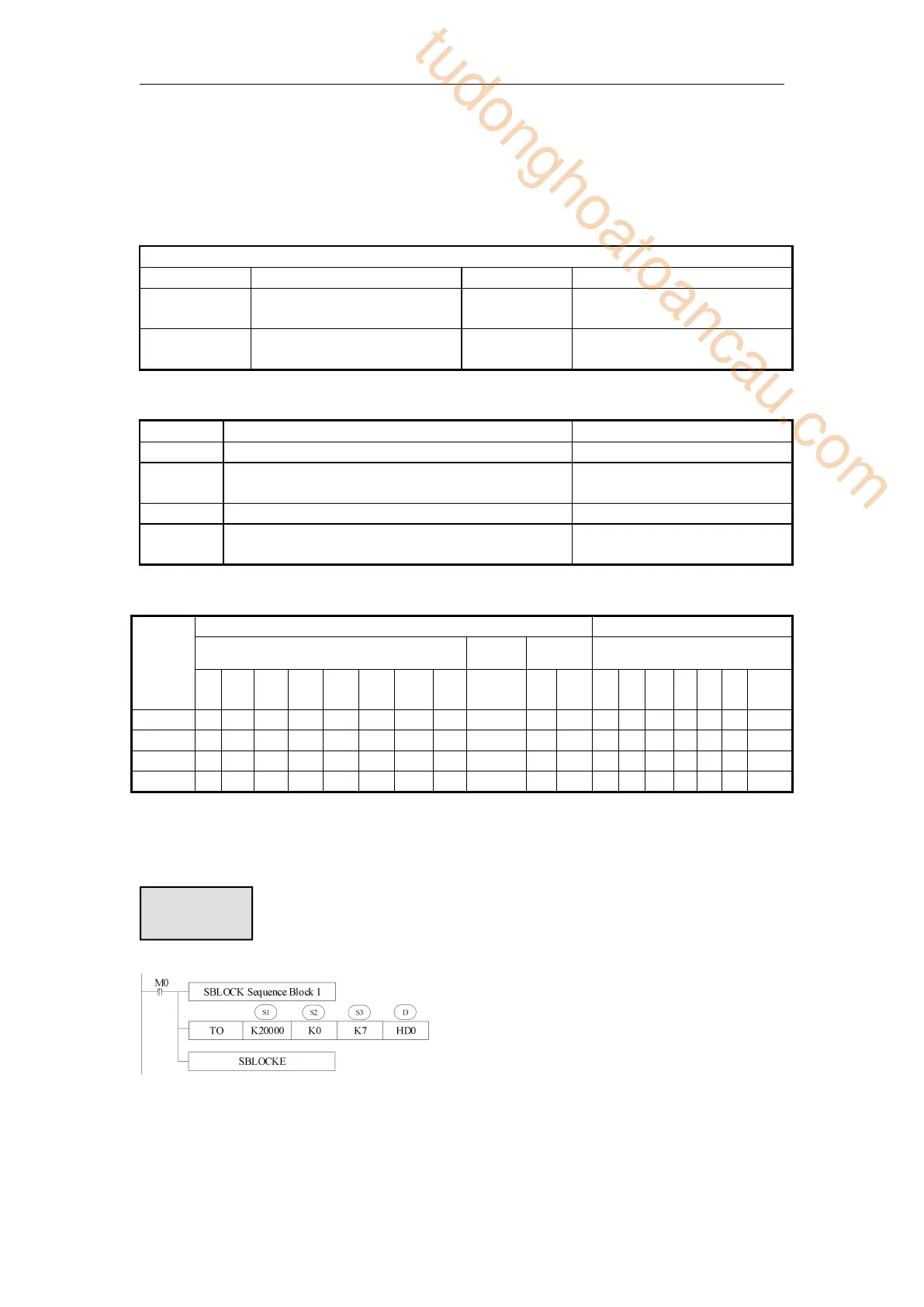

4-10-4 Accurate clock BD board data write [TO]
1) Summary
Accurate clock BD board data write [TO]
16 bits
TO
32 bits
-
Execution
condition
rising/falling edge
Suitable
Models
XD, XL
Hardware
requirement
Version V3.4.6 (or V3.5.3a)
or later
Software
requirement
Version V3.5.3 or later
2) Operands
Operands
Function
Data Type
S1
Number of BD board
16 bits, BIN
S2
Soft component header address number for
clock data
16 bits, BIN
S3
Number of clock data
16 bits, BIN
D
Soft component header address of local clock
data
16 bits, BIN
3) Suitable soft components
Operan
ds
Word soft elements
Bit soft elements
System
Consta
nt
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.
m
S1
●
S2
●
S3
●
D
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M, HM, SM; S includes S, HS; T
includes T, HT; C includes C, HC.
 When M0 is turned on, write the values in the 7 consecutive registers led by HD0 into the ID
register in xD-RTC-BD of #1 clock BD board.

Description
