Xinje XD Series User Manual

53

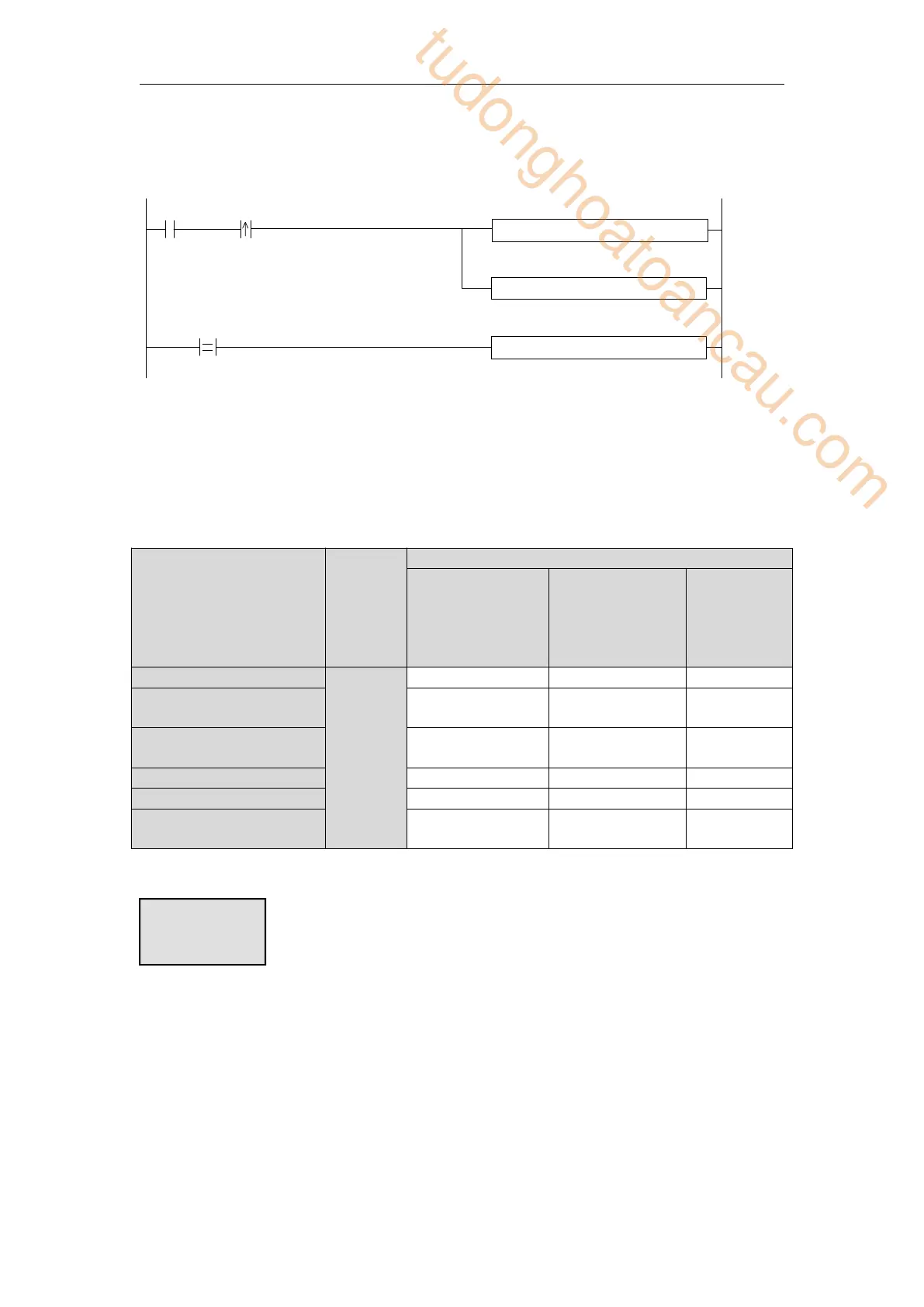

Application 2:
When M0 is ON, read the ID10000 value every second and store in the register starting from
D4000 (amounts is 50 registers). D0 is offset address.
SM13M0
MOV ID10000 D4000[D0]
MOV K1 D0
D0 K50
INC D0
2-10 Flash register (FD, SFD, FS)
The FLASH registers of XD/XL series PLC are all addressed in decimal system. The serial
numbers are shown in the corresponding table.
Series
Name
Range
FLASH user data
register
FLASH system
data register
Password
read
protection
FLASH
register
XD1/XD2/XD3
FD
SFD
FS
FD0~FD5119
SFD0~SFD1999
FS0~FS47
XD5/XDM/XDC/XD5E/
XDME
FD0~FD8191
SFD0~SFD5999
FS0~FS47
XDH
FD0~FD65535
SFD0~SFD4999
9
FS0~FS47
XL1/XL3
FD0~FD5119
SFD0~SFD1999
FS0~FS47
XL5/XL5E/XLME
FD0~FD8191
SFD0~SFD5999
FS0~FS47
XLH
FD0~FD65535
SFD0~SFD6548
7
FS0~FS47
 FLASH User Data Register (FD)
Used to store important data of users, can be maintained when the power is off.
This storage area can remember data even if the battery is powered down, so it can be used to
store important process parameters.
 FLASH System Data Register (SFD)
Used to store system parameters and be able to maintain the data when power off.
The storage area is a system parameter block, and users can not modify it at will.
 Password Read Protection FLASH Register (FS)
Function
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
