Xinje XD Series User Manual

142
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD;
DM includes DM, DHM; DS includes DS, DHS. M includes M, HM, SM; S includes S, HS;
T includes T, HT; C includes C, HC.
 Move n2 words right for the object which contains n1 words.
 When X0 changes from OFF to ON, the instruction will move n2 words for the object.
4-8 Data Convert
Mnemonic
Function
Chapter
WTD
Single word integer converts to double
word integer
4-8-1
DWTD
double word integer to four word integer
4-8-1
BDWTD
32 bits integer to64 bits integer batch
conversion
4-8-2
FLT
16 bits integer converts to float point
4-8-3
DFLT
32 bits integer converts to float point
4-8-3
FLTD
64 bits integer converts to float point
4-8-3
DFLTD
32 bits integer to double precision
floating point
4-8-4
QFLTD
64 bits integer to double precision
floating point
4-8-4
INT
Float point converts to integer
4-8-5
DINTD
Double - precision floating point to32
bits integer
4-8-6
QINTD
Double - precision floating point to64
bits integer
4-8-6
ECON
Single precision floating point to double
precision floating point
4-8-7
BECON
Single precision floating point to double
precision floating point batch conversion
4-8-8
BIN
BCD convert to binary
4-8-9
BCD
Binary converts to BCD
4-8-10
Description

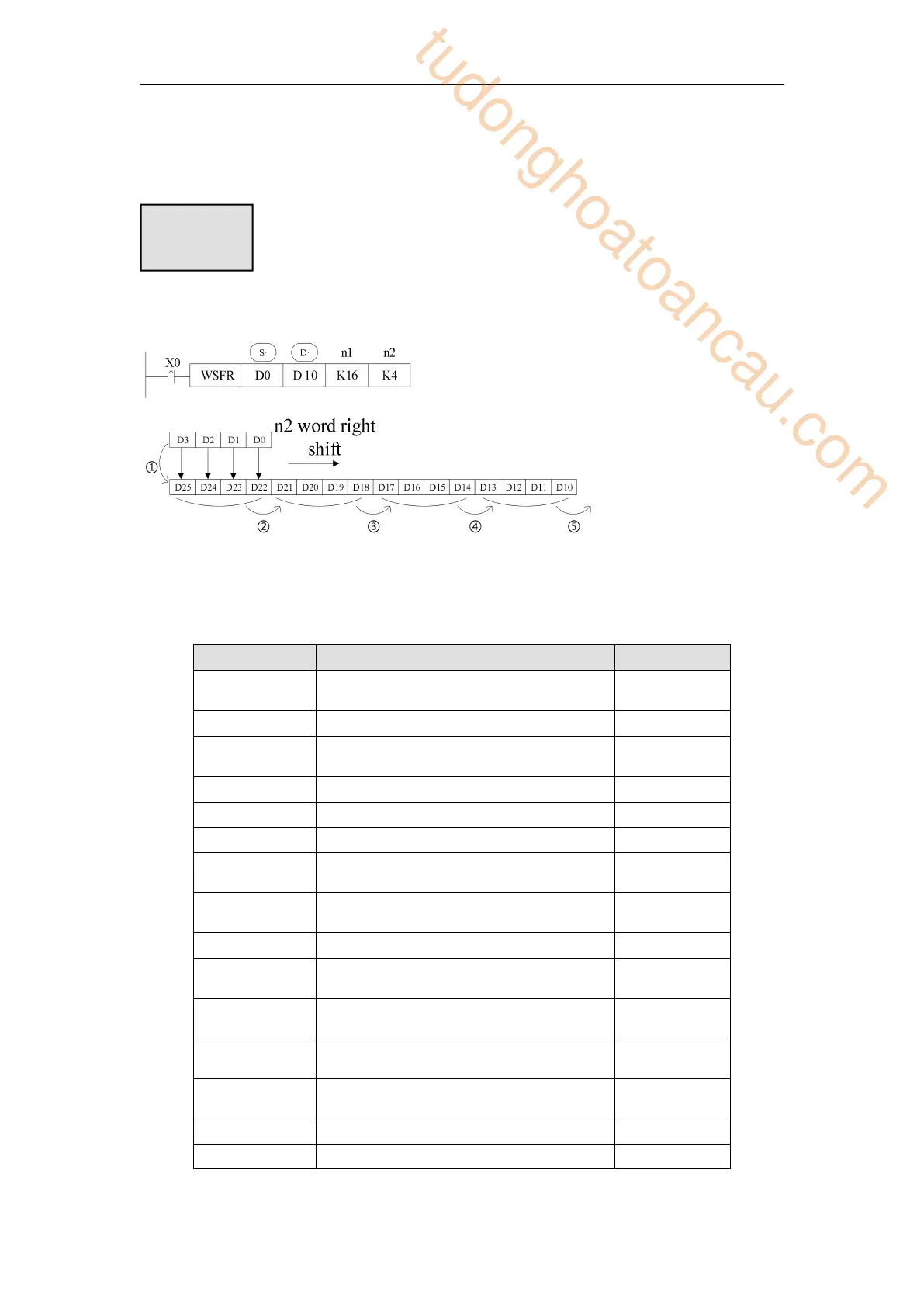

① D 3~D 0→D25~D22
② D25~D22→D21~D18
③ D21~D18→D17~D14
④ D17~D14→D13~D10
⑤ D13~D10→overflow
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
