Note: the correspondence of registers is fixed, that is, they are stored in order of hours,
minutes and seconds.
If the operation result is 0 hour, 0 minute, 0 second, SM20 will be set ON.
The operands S1, S2, and D each occupy three registers. Do not use them for other purposes.

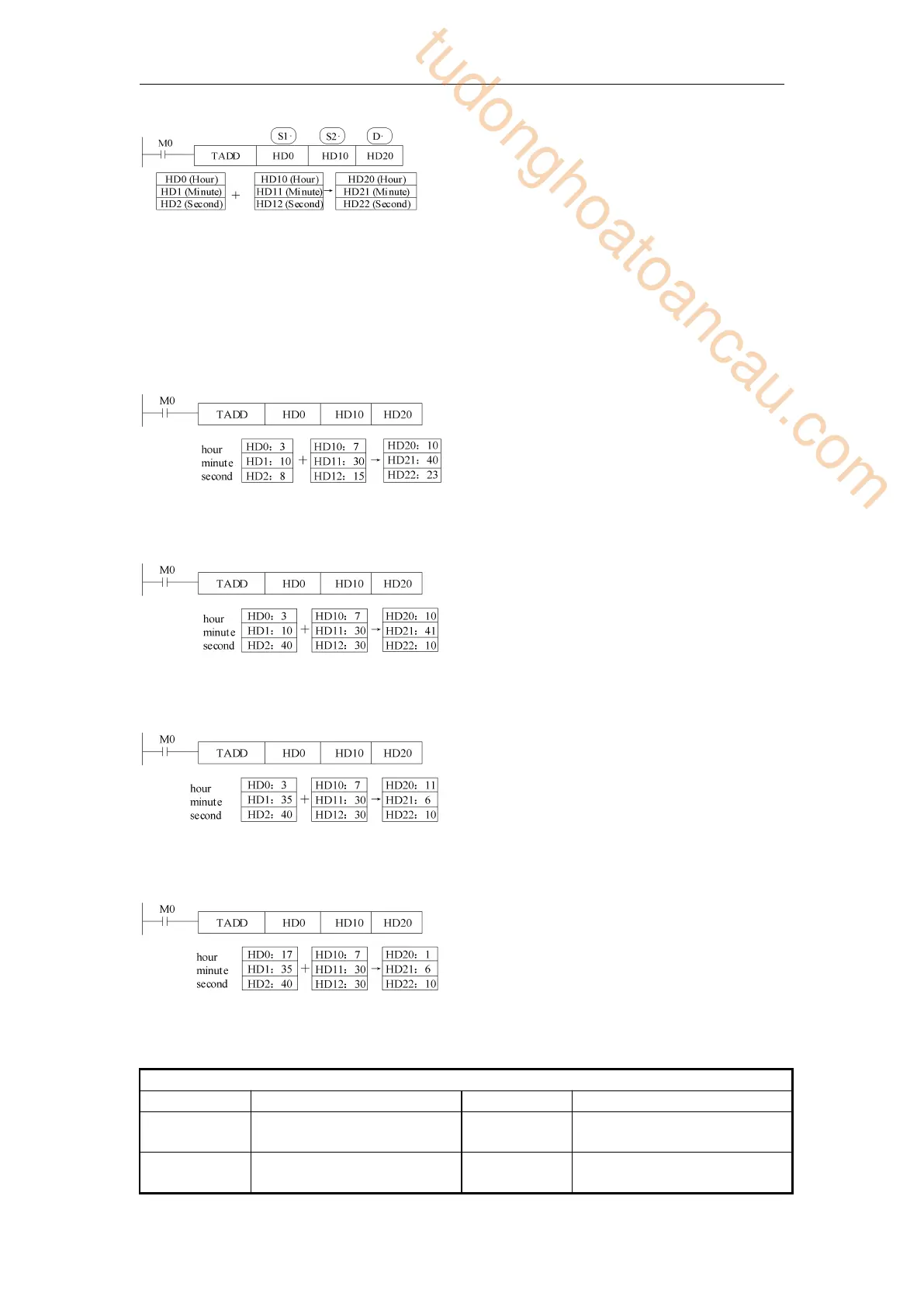

Example 1:
<General condition>
Example 2:
< More than 59 seconds >
Example 3:
< More than 59 minutes >
Example 4:
< More than 23 hours >
4-10-6 Clock data sub [TSUB]
1) Summary
Clock data sub [TSUB]
16 bits
TSUB
32 bits
-
Execution
condition
Normally ON/OFF,
rising/falling edge
Suitable
Models
XD, XL
Hardware
requirement
Version V3.4.6 (or V3.5.3a)
or later
Software
requirement
Version V3.5.3 or later
