Xinje XD Series User Manual

201
COM
COM
X1
X0
X3
X2 X4
X5
X6
(2) The high-speed counting input of XD5-48D4T4 can receive differential signal (DIFF), please
be sure to choose differential signal (DIFF) encoder.
(3) When the counting frequency is higher than 25Hz, please select a high-speed counter.

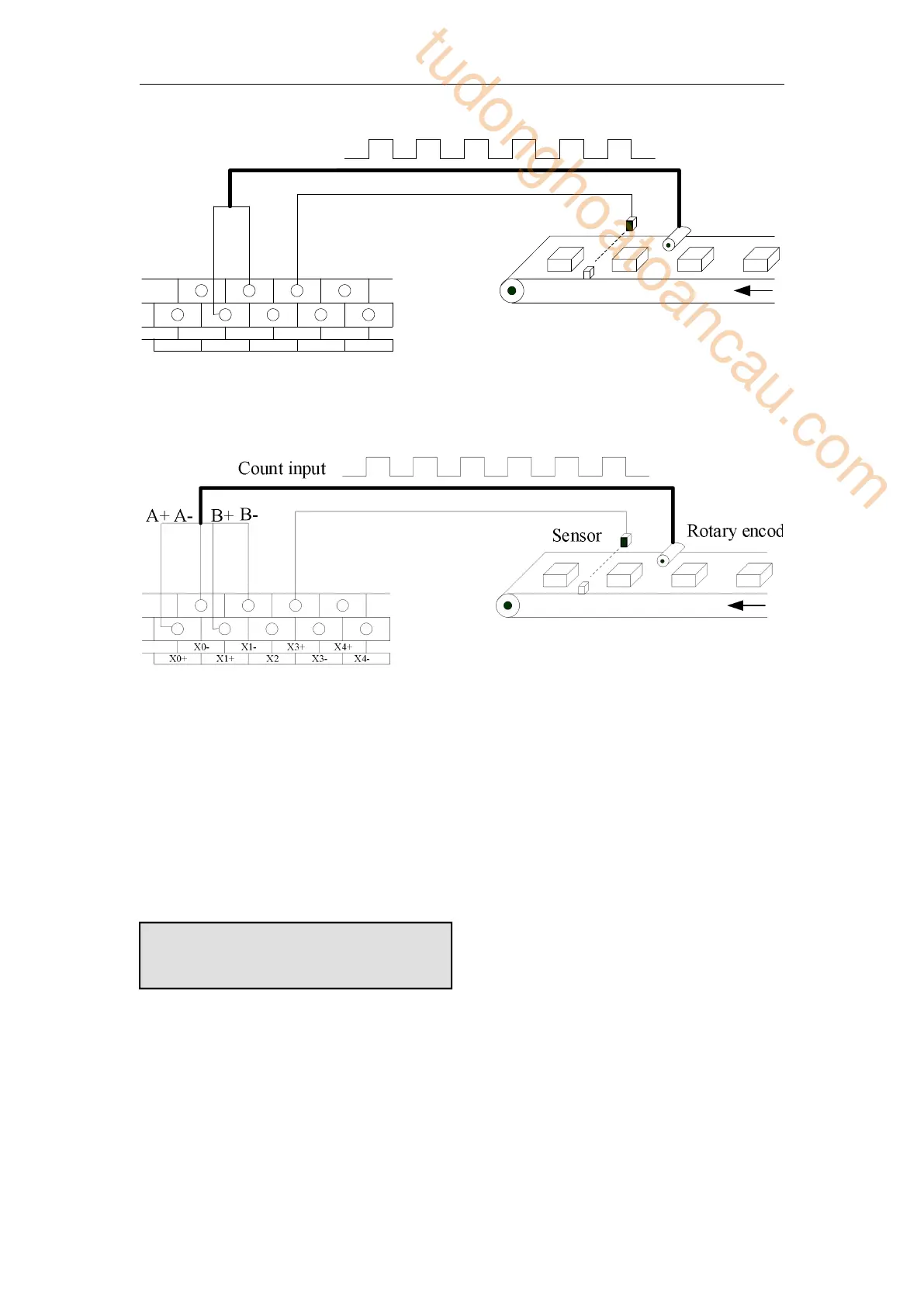

5-2 HSC Mode
XD, XLseries high speed counter has two working mode: Single-phase increasing mode and
AB phase mode.
Under this mode, the count value increase at each pulse’s rising edge;
Single-phase Increasing Mode
Count input
Sensor
Rotary encoder
A
B
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
