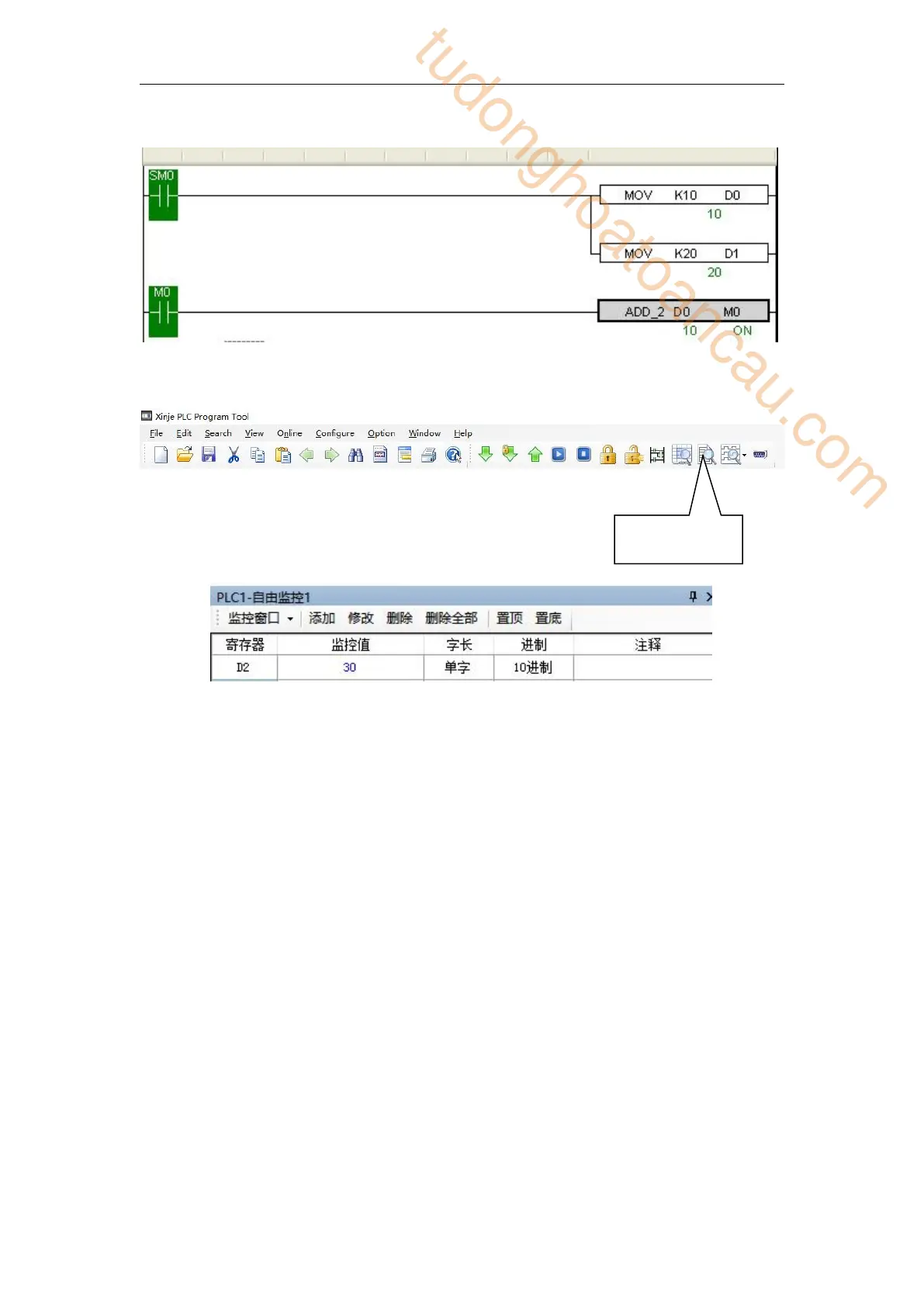

(4) Download program into PLC, run PLC and set M0.
(5) From Free Monitor in the toolbar, we can see that D2 changes to be 30, it means
assignment is successful;
8-6 Program Example
If PLC needs to do complicated calculation (including plus and minus calculation), the
calculation will be used for many times, C language function is easy to use.
Example 1:
Calculation a= b/c + b*c+(c-3)*d
Method 1: use ladder chart:
Get the result of c-3
Get the result of three multiplication equations
Get the sum
Ladder chart only support two original operands, it needs many steps to get the result.
