Xinje XD Series User Manual

63
Y2
M2
Y3
X2 M1
X3Y2
T1

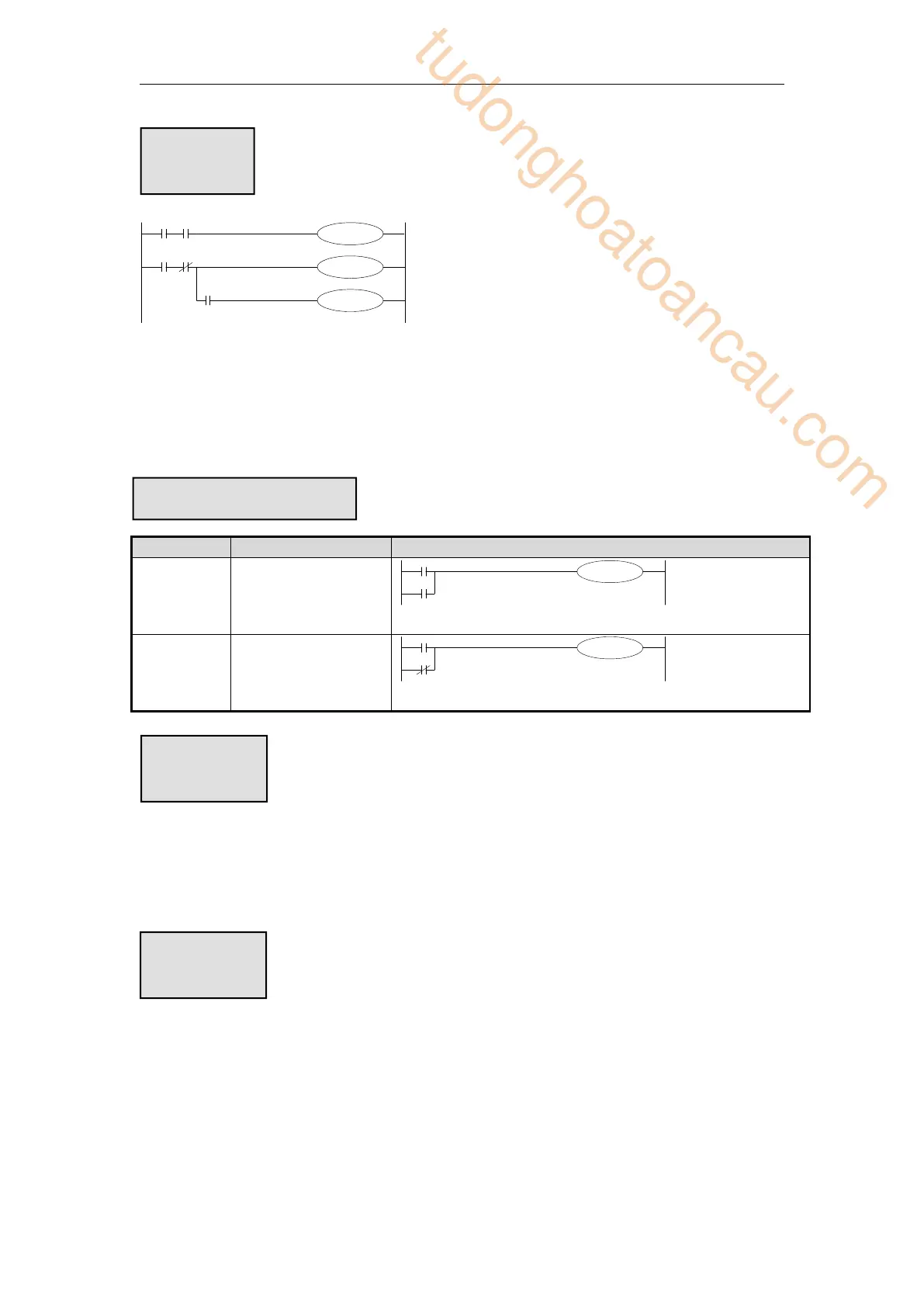

3-4 [OR] , [ORI]
 Use the OR and ORI instructions for parallel connection of contactors. To connect a block
that contains more than one contactor connected in series to another circuit block in
parallel, use ORB instruction, which will be described later;
 OR and ORI start from the instruction step, parallel connect with the LD and LDI
instruction step introduced before. There is no limit for the parallel connect times.
LD
X2
AND
M1
OUT
Y2
LD
Y2
ANI
X3
OUT
M2
AND
T1
OUT
Y3
Mnemonic
Function
Format and Operands
OR
(OR)
Parallel connection
of NO (Normally
Open) contactors
M0
Operand: X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
ORI
(OR
reverse)
Parallel connection
of NC (Normally
Closed) contactors
M0
Operand: X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
Program
Mnemonic and Function
Statements
Program
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
