Xinje XD Series User Manual

203
Counter current
value
B phase
input
5-3 HSC Range
HSC’s count range is: K-2,147,483,648 ~ K+2,147,483,647. If the count value overflows this
range, then overflow or underflow appears;
Overflow means the count value jumps from K+2,147,483,647 to K-2,147,483,648, then
continue counting; underflow means the count value jumps from -2,147,483,648 to
+2,147,483,647 then continue counting.

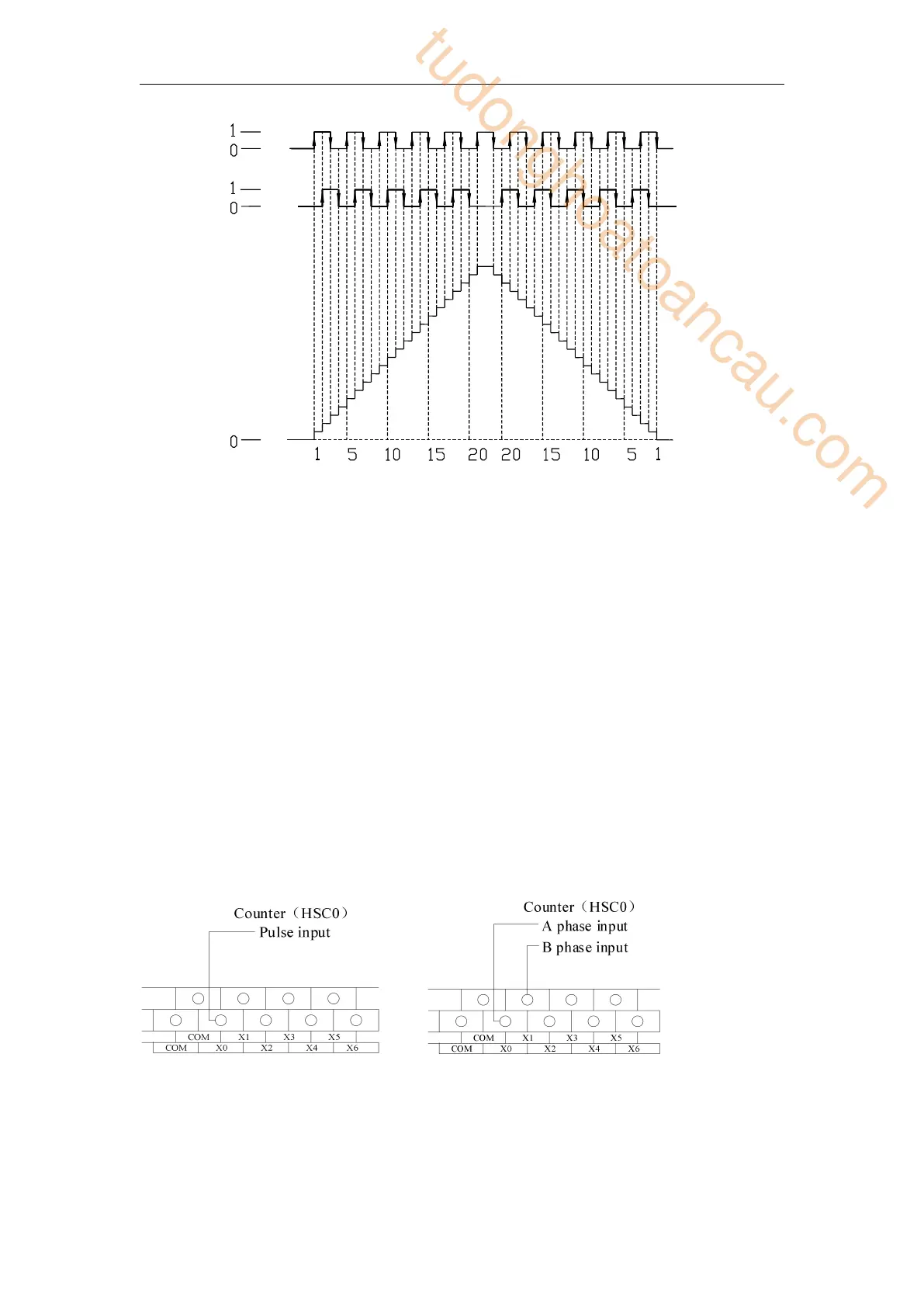

5-4 HSC Input Wiring
For the counter’s pulse input wiring, things differ with different PLC model and counter
model; several typical input wiring diagrams are shown below: (take XD3-60 HSC0 as the
example):
Increasing mode AB phase mode
A phase
input
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
