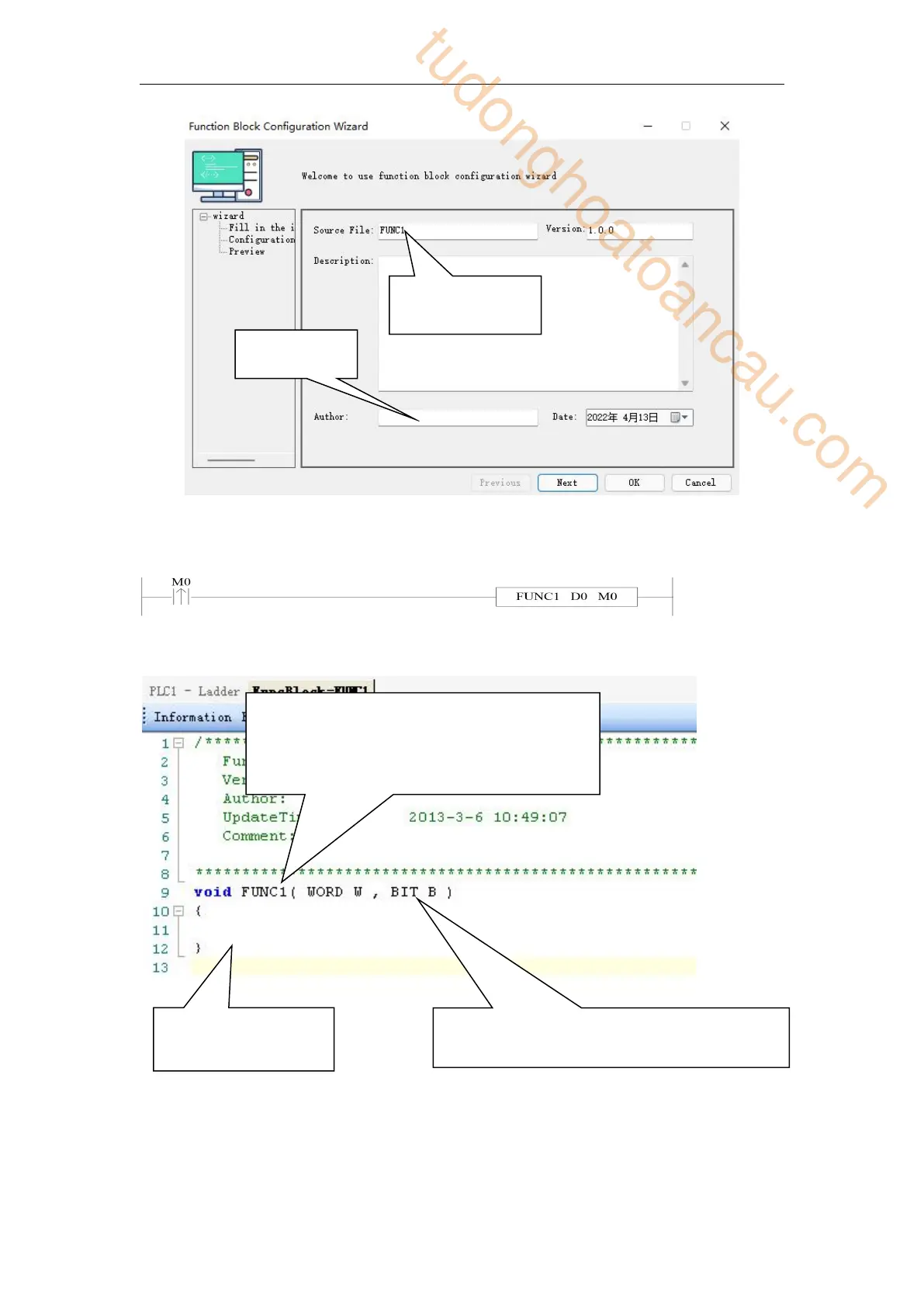

Function Block name is the name we use to call the BLOCK. For example: the diagram of
FUNC1 should be written as below:
3. After creating the new Function Block, you can see the edit interface as shown below:

Parameters’ transfer way: if call the Function Block in ladder, the transferred D (HD)
and M (HM) is the start ID of W and B. Take the above graph as the example, start
with D0 and M0, then W[0] is D0, W[10] is D10, B[0]is M0, B[10]is M10; if the
Editor Name
Function
Block Name
Edit your C language
program between ‘{}’
Main function’s name (it’s function block’s
name, this name can’t be changed freely, and
users should modify in the edit window.)
WORD W: correspond to soft component D
BIT B: correspond to soft component M
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
