Xinje XD Series User Manual

403

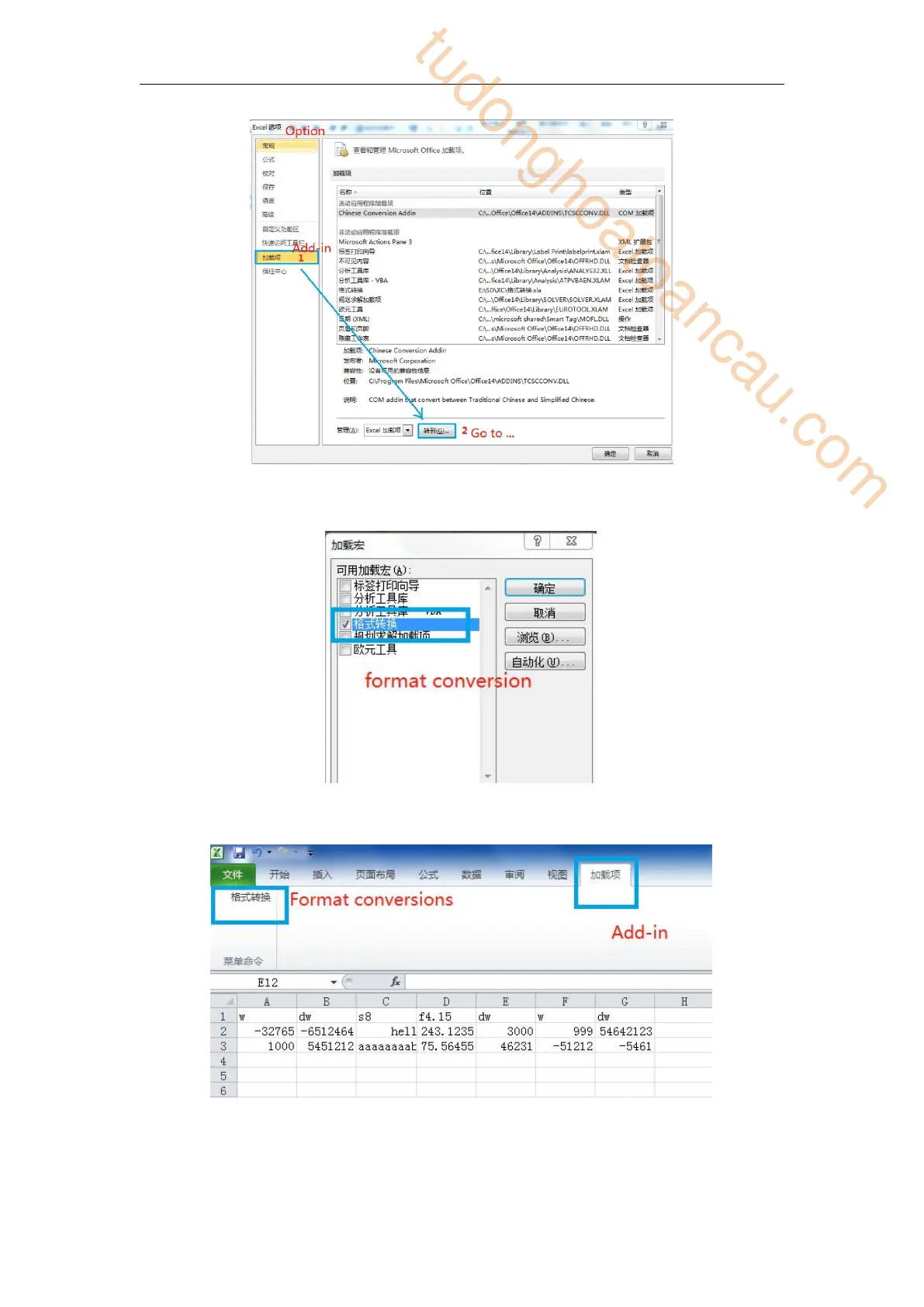

(4)Click
【
Browse
】
and select the
【
Format conversion.xla
】
file extracted previously.
(5)
【
Format conversion
】
is added to the available add ins and checked in the front.
(6) After [OK], the
【
add in
】
column and the
【
format conversion
】
option are added to the
excel toolbar, as shown in the following figure:
(7) Open the existing csv file and click format conversion to complete the conversion.
(8) When saving, the dialog box will pop up, select Yes, and the file will be in csv format.
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
