Xinje XD Series User Manual

65

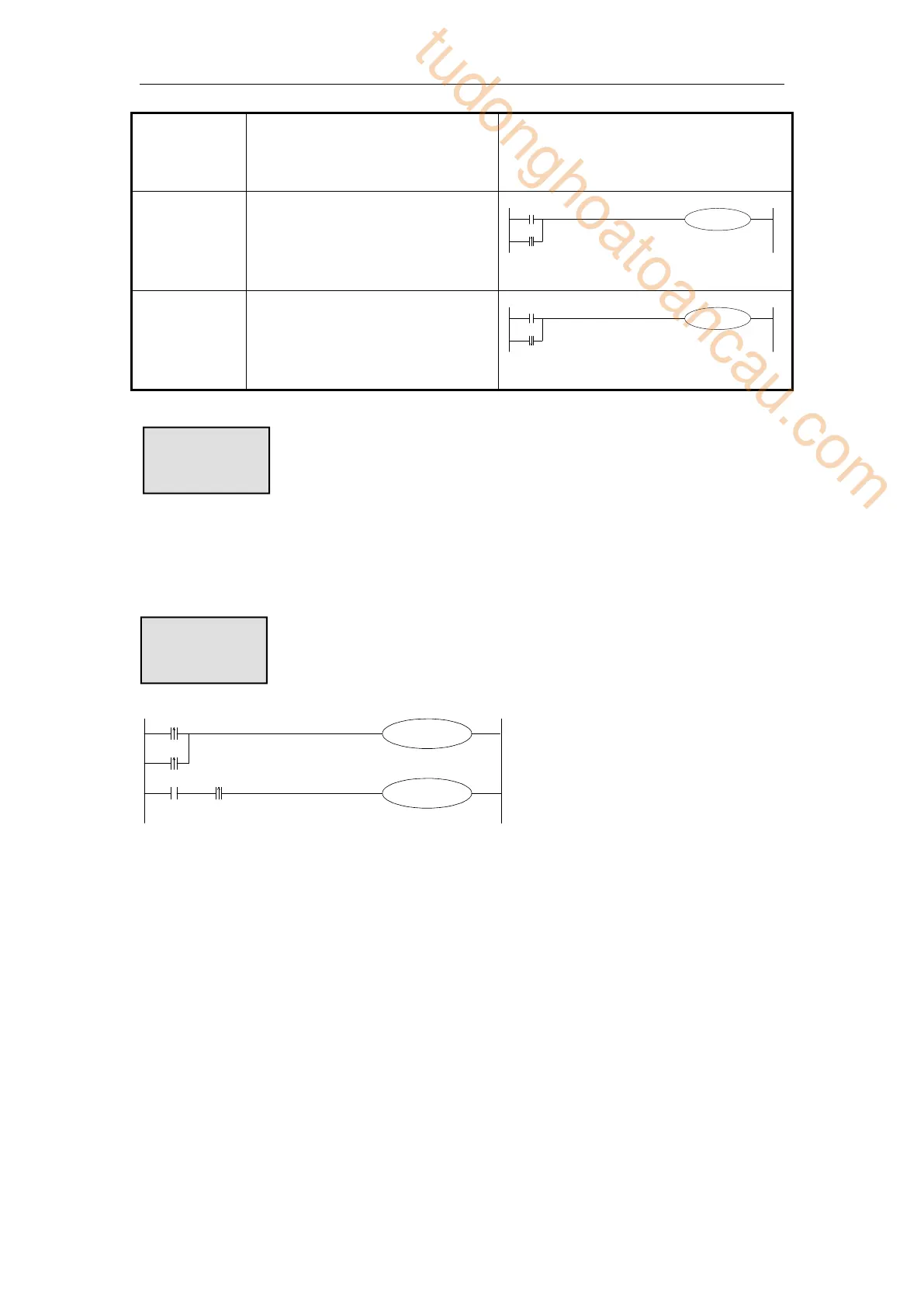

 LDP, ANDP, ORP will be ON for one scanning period when the signal rising pulse is coming
(OFFON)
 LDF, ANDF, ORF will be ON for one scanning period when the signal falling pulse is
coming (ONOFF)
(AND Falling
pulse)
Falling/trailing edge pulse
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
ORP
(OR Pulse)
Parallel connection of Rising edge
pulse
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
ORF
(OR Falling
pulse)
Parallel connection of
Falling/trailing edge pulse
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
LDP
X5
ORP
X6
OUT
M13
LD
M8000
ANDP
X7
OUT
M15
Statements
Program
M13
M15
X5
X6
SM0 X7
M0
M0
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
