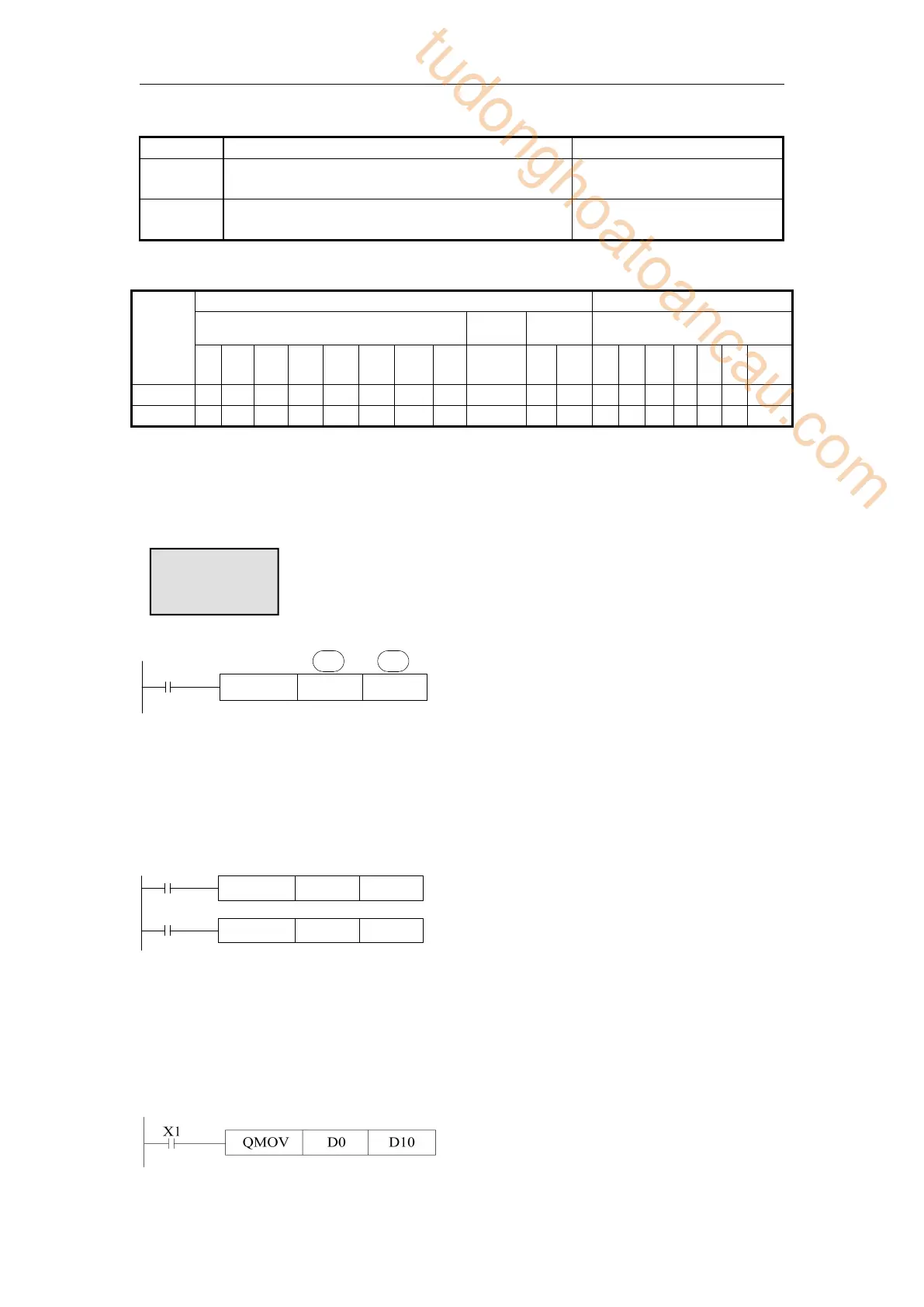

Xinje XD Series User Manual

105
2) Operands
Operands
Function
Data Type
S
Specify the source data or register’s address
code
16 bits/32 bits/64 bits, BIN
D
Specify the target soft component’s address
code
16 bits/32 bits/64 bits, BIN
3) Suitable soft component
Operan
ds
Word soft elements
Bit soft elements
System
Consta
nt
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.
m
S
●
●
●
●
●
●
●
●
●
●
D
●
●
●
●
●
●
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M,HM,SM；S includes S,HS；T
includes T,HT；C includes C, HC.
< Move 16 bits data >
MOV K10 D10
X0
S· D·

Move the source data to the target

When X0 is off, the data will not change

Move K10 to D10
< Move 32 bits data >
Please use DMOV when the value is32 bits, such as MUL instruction, high speed counter…
DMOV D0 D10
DMOV HSC0 D20
< Move 64 bits data >
Please use QMOV when the value is64 bits, such as DMUL instruction
Description
(D1, D0) → (D11, D10)
(the current value of HSC0)→(D21, D20)
(D3,D2,D1,D0)→(D13,D12,D11,D10)
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
