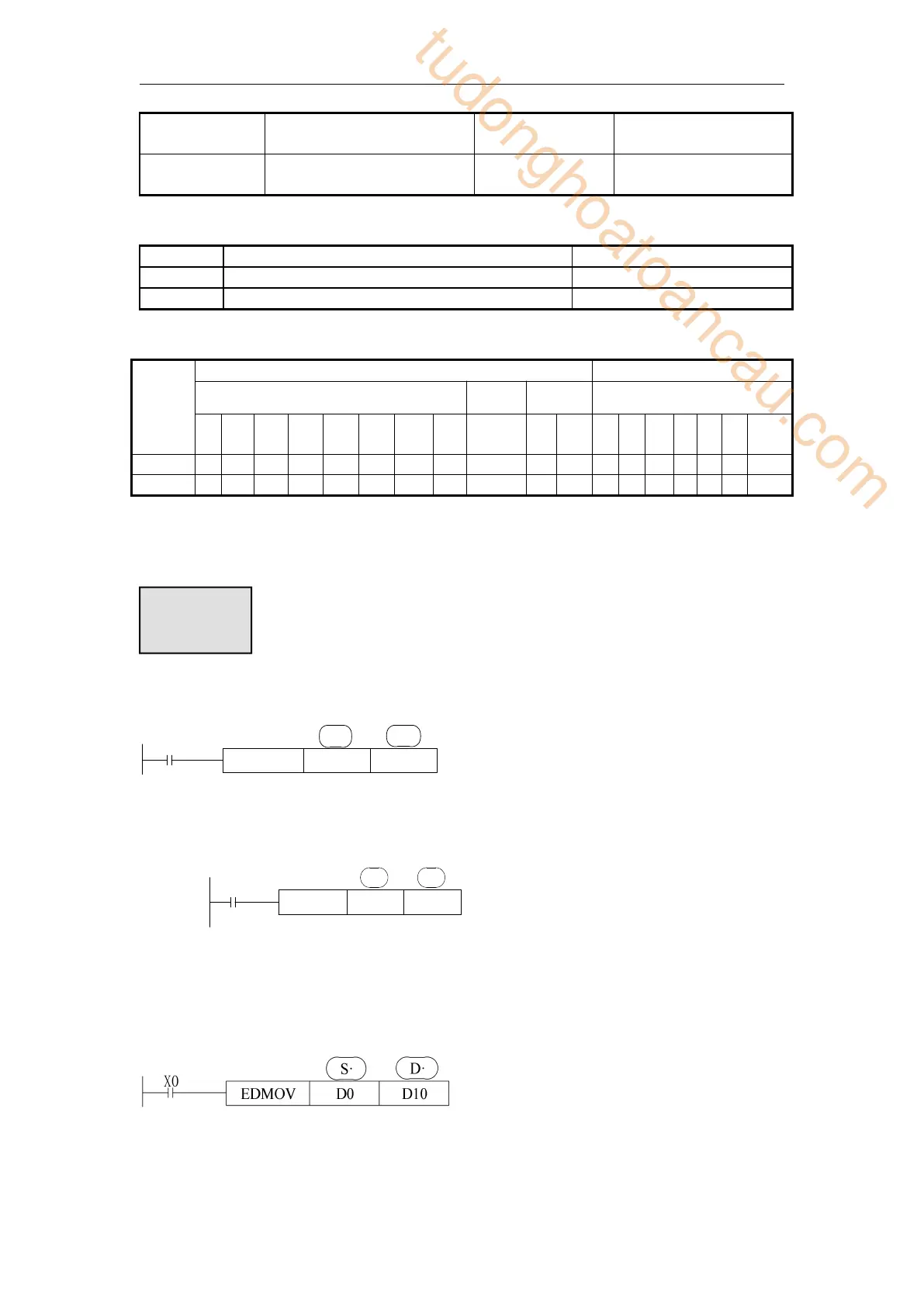

Xinje XD Series User Manual

111
Execution
condition
Normal ON/OFF/falling or
rising pulse edge
Suitable Models
XDH, XLH
Hardware
requirement
Version V3.7.1 or later
Software
requirement
Version V3.7.4a or
later
2)Operands
Operand
Function
Type
S
Source soft element address
32 /64bits, BIN
D
Destination soft element address
32 /64bits, BIN
3)Suitable soft element
Operan
ds
Word soft elements
Bit soft elements
System
Consta
nt
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.
m
S
●
●
●
●
●
●
●
D
●
●
●
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M,HM,SM；S includes S,HS；T
includes T,HT；C includes C, HC.
<32 bits instruction>
Binary floating → binary floating
EMOV D0 D10
X0
S·
D·
(D1,D0) → (D11,D10)

X0 is ON, send the floating number from (D1, D0) to (D11, D10).

X0 is OFF, the instruction doesn’t work.
EMOV K500 D10
X0
S· D·
(K500) → (D11,D10)

If constant value K, H is source soft element, they will be converted to floating number.

K500 will be converted to floating value.
<64 bits instruction>
 X0 is ON, send the floating number from (D3,D2,D1,D0)to(D13,D12,D11,D10).
 X0 is OFF, the instruction doesn’t work.
Description
(D3,D2,D1,D0)→(D13,D12,D11,D10)
