Xinje XD Series User Manual

130

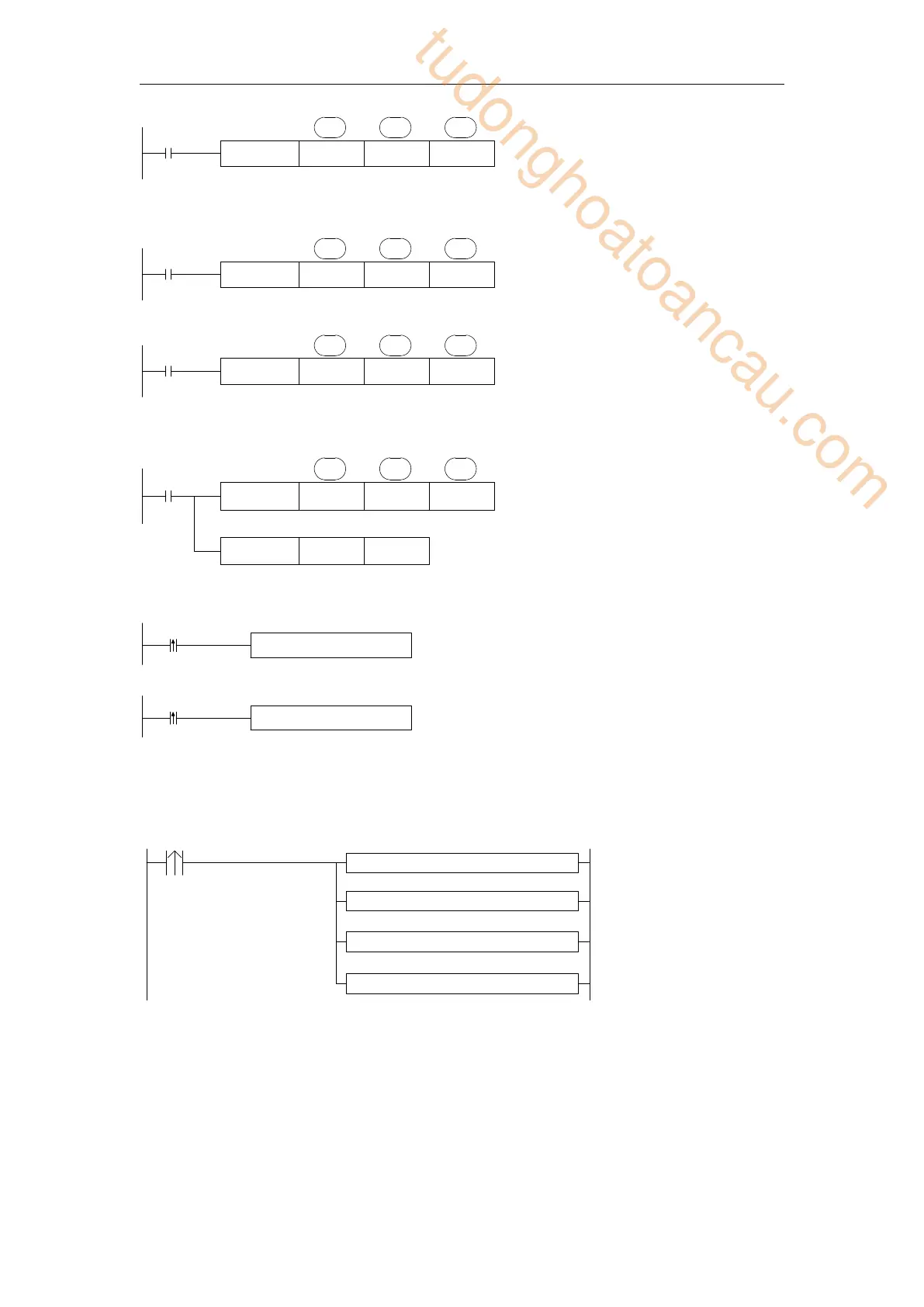

WAND D10 D12 D14
D·
X0
S1· S2·
<Logic OR >
WOR D10 D12 D14
D·
X0
S1· S2·
< Logic WXOR >
WXOR D10 D12 D14
D·
X0
S1· S2·
If use this instruction along with CML instruction, XOR NOT operation could also be
executed.
WXOR D10 D12 D14
D·
X0
S1· S2·
CML D14 D14
Example 1:
The16 bits data is composed by X0~X7, and store in D0.
MOV DX0 D0
M0
Transform the state of X0, X1, X2, X3 to 8421 code and store in D0.
WAND DX0 H0F D0
M0
Example 2:
Combine the low 8 bits of D0 and D2 to a word.
WAND D0 HFF D10
X0
WAND D2 HFF D12
SWAP D12
WOR D10 D12 D20
LDP X0
WAND D0 HFF D10
WAND D2 HFF D12
SWAP D12
WOR D10 D12 D20
0&0=0 0&1=0
1&0=0 1&1=1
0 or 0=0 0 or 1=1
1 or 0=1 1 or 1=1
0 xor 0=0 0 xor 1=1
1 xor 0=1 1 xor 1=0
//X0 rising edge
//Logic and, take the low 8 bits of D0 and save in D10
// Logic and, take the low 8 bits of D2 and save in D12
//swap the low 8 bits and high 8 bits of D12
//combine the low 8 bits of D10 and high 8 bits of D12,
and save in D20
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
