Xinje XD Series User Manual

159
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M, HM, SM; S includes S, HS; T
includes T, HT; C includes C, HC.

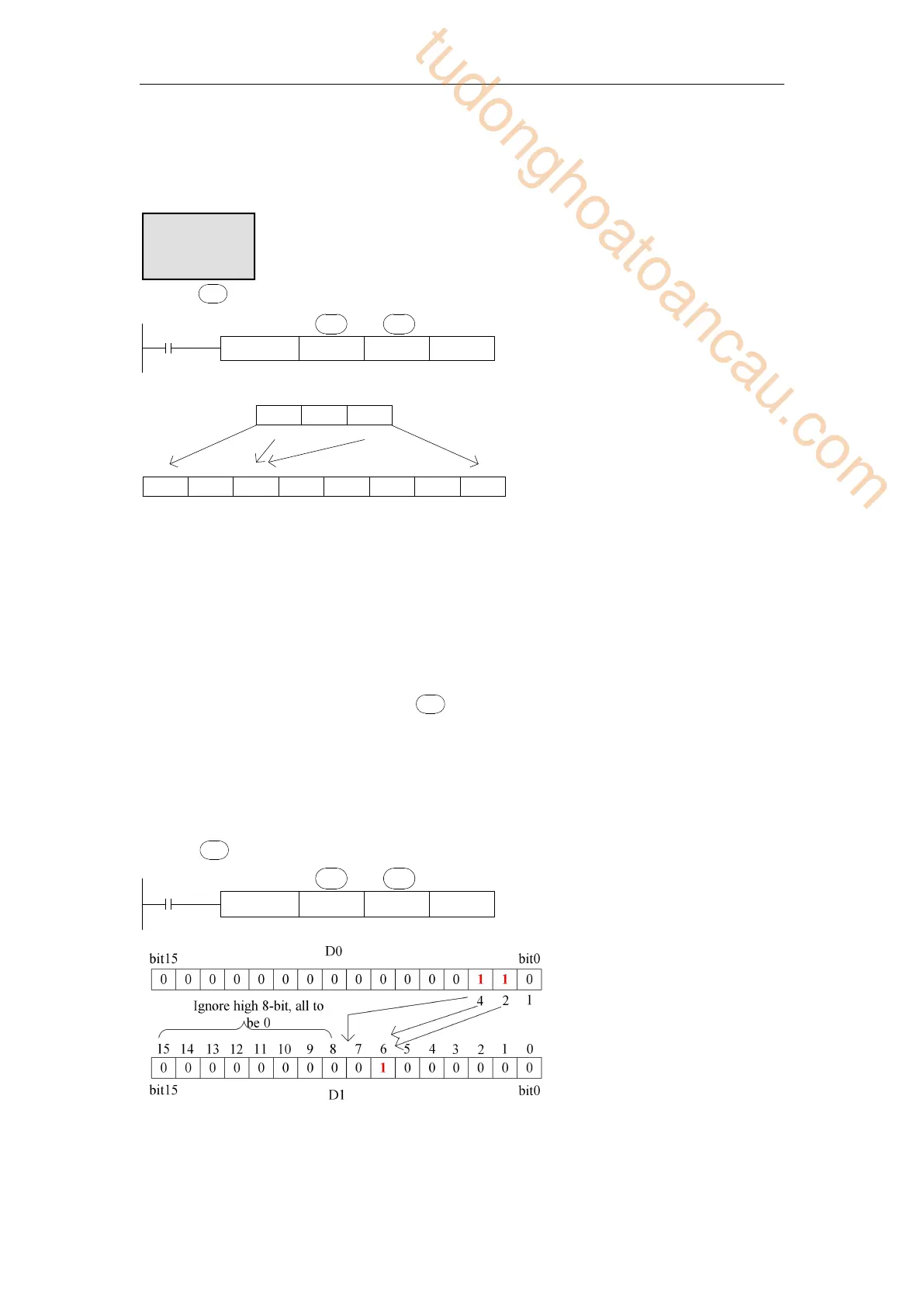

< When is bit unit > n≤16
DX0DECO M10 K3
X10
n
S· D·
1 0 1
0 1 0 0 0 0 0
X2 X1 X0
M17 M16 M15 M14 M13
M12
M11 M10
7 6 5 4
2
1 0
4
0
2
1
3
 n= 3, so the decoding object is the lower three bits in DX0, which are X2 ~ X0.
 n = 3, so the decoding results need to be expressed by 2
3
= 8 bits, which are M17 ~ M10.
 When X2 = 1, X1 = 0, X0 = 1, the value it represents is 4 + 1 = 5, so M15 in the fifth place
from M10 changes to 1; when X2 ~ X0 is all zero, the value is 0, so M10 is 1 (M10 is the 0th
place).
 If n = 0, the instruction will not be executed. If n is the value out of 0 ~ 16, the instruction
will not be executed.
 When n = 16, if the decoding commandis a bit soft component, the number of points is 2 ^ 16
= 65536.
 When the driver input is OFF, the instruction is not executed, and the decoding output of the
action is maintained.
< When is word device > n≤4
D0DECO D1 K3
X0
n
S· D·
 The low n-bit (n ≤ 4) of the source address is decoded to the target address. When n ≤ 3, the
high 8-bit of the target turns to 0.
 If n = 0, the instruction will not be executed. If n is out of 0 ~ 4, the instruction will not be
Description
D·
D·
D·
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
