Ignore the 1 of b7
Ignore the 1 in bit14,
bit12, bit10, bit8
unchanged.
 When n = 16, if the of encoding instruction is a bit element, its point is 2 ^ 16 = 65536.
 n = 3, the encoded object has 2
3
= 8 bits, which are M17 ~ M10, and the encoding results are
stored in the lower three bits of D10, which are bit2 ~ bit0.
 M12 and M16 are both 1. Ignoring M16, M12 is coded, bit2-bit0 represent 2, while bit1 is 1.
< if is word device> n≤4

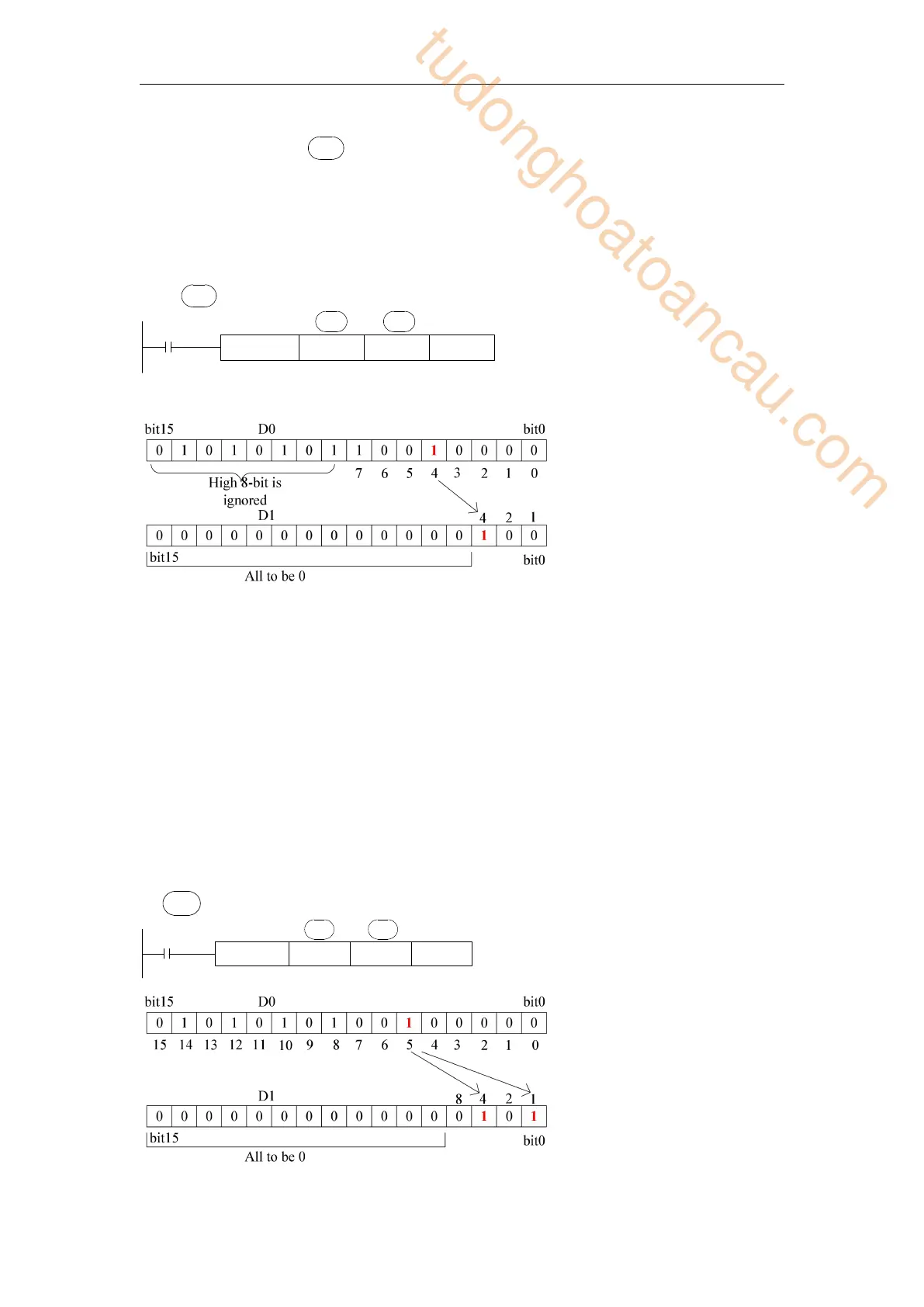

D0ENCOL D1 K3
X1
n
S· D·
 If multiple bits in the source address is 1, the high bit side is ignored, and if the source
address is 0, the instruction will not be executed.
 When the driver input is OFF, the instruction is not executed and the coding output is
unchanged.
 When n ≤3, the high 8 bits in D0 are neglected.
 The encoding object has 2
3
= 8 bits, that is, bit7 ~ bit0 in D0. The encoding result is stored in
the lower 3 bits in D1, that is, bit2 ~ bit0.
 When bit7 and bit4 in D0 are both 1, bit7 is ignored and bit4 is coded. Bit 2 is 1 when bit2-
bit0 is expressed as 4.
< is word soft component > n≤4
D0ENCOL D1 K4
X1
n
S· D·
S·
S·
S·
