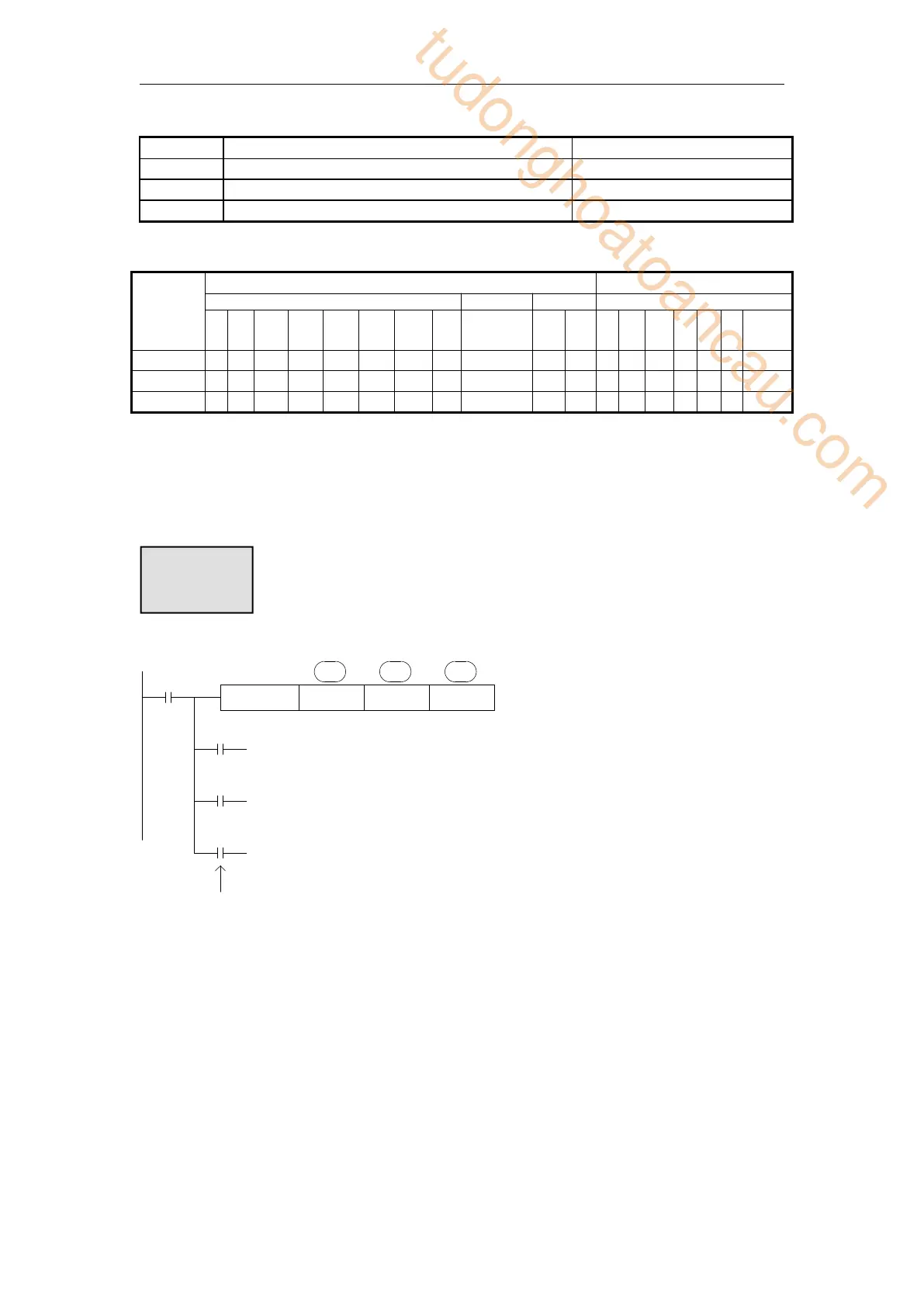

Xinje XD Series User Manual

168
2) Operands
Operands
Function
Data Type
S1
Soft element address need compare
32/64 bits, BIN
S2
Soft element address need compare
32/64 bits, BIN
D
Compare result
bit
3) Suitable soft components
Operands
Word soft elements
Bit soft elements
System
Constant
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
ID
Q
D
X
Y
M
S
T
C
Dn.m
S1
●
●
●
●
●
●
●
S2
●
●
●
●
●
●
●
D
●
●
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M, HM, SM; S includes S, HS; T
includes T, HT; C includes C, HC.
<32 bits operation>
ECMP D10 D20 M0
M0
M1
M2
X0
D·S1· S2·

The instruction will compare the two source data S1 and S2. The result is stored in three bits
from D.

Before the instruction is executed, the comparison data must be all floating numbers (if it is
an integer, it can be converted by FLT instructions); otherwise, the execution result will be
wrong.

If a constant K or H used as source data, the value is converted to floating value.
(D11,D10):(D21,D20) → M0,M1,M2
Binary FloatingBinary Floating
Description
(D11,D10) > (D21<D20)
Binary Floating Binary Floating
(D11,D10) = (D21<D20)
Binary Floating Binary Floating
(D11,D10) < (D21<D20)
Binary Floating Binary Floating
When X0 is OFF, even ECMP doesn’t run, M0~M2 will keep the
status before X0 is OFF.
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
