Xinje XD Series User Manual

216

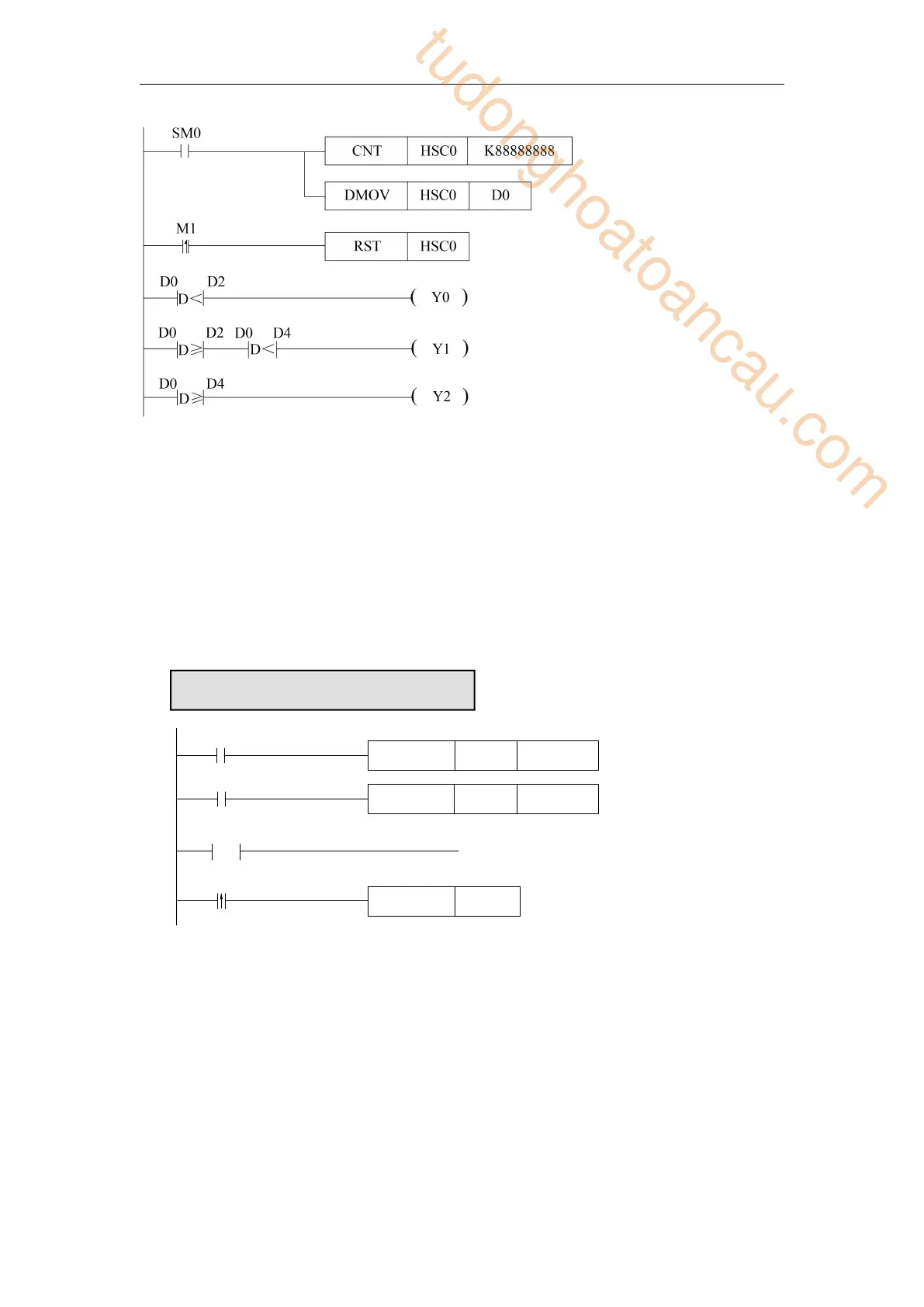

 When SM0 is on, HSC0 counts X0 port in single-phase incremental mode, the setting
value is K888888, and reads the high-speed counting value to D0 (double-word) in real
time.
 When D0 (double words) is less than D2 (double words), Y0 is ON, when D0 (double
words) is equal to or larger than D2 (double words) and less than D4 (double words), Y1
is ON. when D0 (double words) is equal to or larger than D4 (double words), Y2 is ON.
 When M1 rising edge is coming, reset HSC0 and HSCD0(double words).
 As the high speed counter is double words counter, please use double words instruction
DLD < and DLD ≥.
M8
DMOV HSC0
D0
D≥
D0 K3000
CNT_AB HSC0
K999999
SM0
Y2
M9
RST HSC0
( )
 When M8 is ON, HSC0 starts to count. The signal inputs from X0 (A phase) and X1 (B
phase).
 When SM0 is ON, the value in HSCD0 (double words) related to HSC0 is written to D0
(double words) in real-time.
 When the present counting value is over 3000, Y2 is ON.
 When the rising edge of M9 is coming, reset HSC0 and HSCD0 (double words).
Since the high-speed count value is 32-bit, the
instructions here are all 32-bit
instructions.Such as DMOV
，
DLD
＜
,
DLD
≥
AB phase input mode
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
