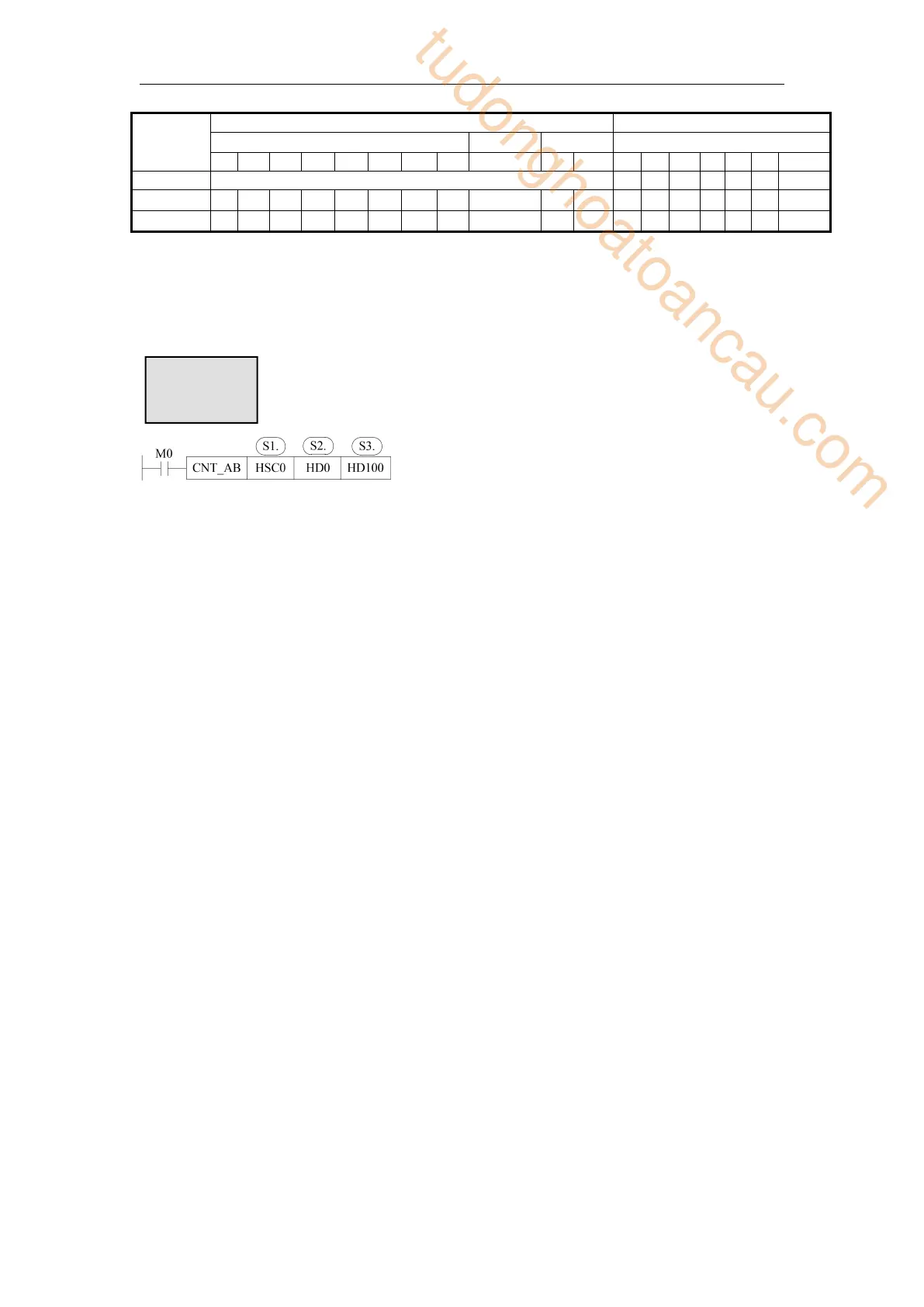

Xinje XD Series User Manual

221
Operands
Word soft elements
Bit soft elements
System
Constant
Module
System
D
FD
TD
CD
DX
DY
DM
DS
K/H
ID
QD
X
Y
M
S
T
C
Dn.m
S1
Only can be HSC
S2
●
●
S3
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD;
DM includes DM, DHM; DS includes DS, DHS. M includes M,HM,SM；S includes S,HS；
T includes T,HT；C includes C, HC.
 When the high-speed counter HSC0 counts in AB phase mode, high-speed counting
value is compared to data block starting from HD100 (such as HD102, HD102,
HD104 and other double-word registers), it will immediately produce the
corresponding high-speed counting interrupt when the condition is met, each section
of the corresponding interrupt marks please refer to chapter 5-9-4.
 During the high-speed counting process, it is invalid to modify the set value of 100
segments.
 In the process of high-speed counting, the driving condition M0 can not be
disconnected. If M0 is disconnected and then rebooted, no interruption will occur.
The high-speed counter must be reset first, and thenset ON M0 again to produce
interruption.
 When the interrupt is finished in a single execution, if it needs to start the interruption
again, the high-speed counter must be reset first, and then the driving condition must
be ON again.
 In interrupt loop mode, interrupts can be generated in sequence as long as M0
remains on state.
Description
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
