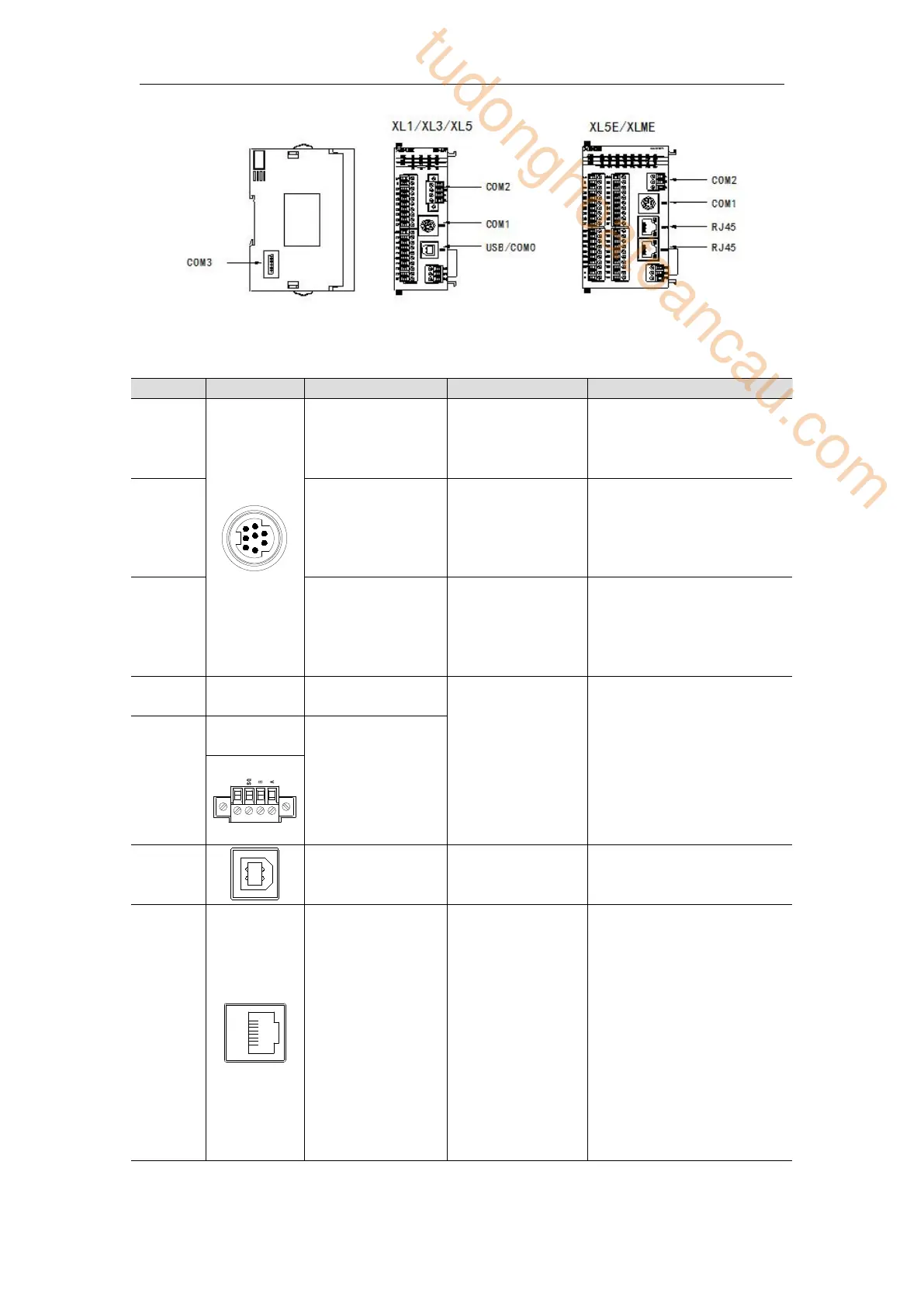

The definitions and functions of each communication port are as follows:
Port
Appearance
Definition
protocol
Function
COM0
RS232 port
X-NET
Modbus
Download program, set the
port parameters through
software or xinje config
tool
COM1
RS232 port
Modbus RTU
Modbus ASCII
Free
communication
X-NET
Download program and
connect external devices,
set the port parameters
through software or xinje
config tool
COM2-
RS232
RS232 port
Modbus RTU
Modbus ASCII
Free
communication
X-NET
Download program and
connect external devices,
set the port parameters
through software or xinje
config tool
COM2-
RS485
A, B port
RS485 port
Modbus RTU
Modbus ASCII
Free
communication
X-NET
Download program and
connect external devices,
set the port parameters
through software or xinje
config tool
COM2
A, B port
RS485 port
USB
USB port
X-NET
High speed download port,
please install the USB
driver first
RJ45
Ethernet port
TCP/IP
communication
based on Ethernet
High speed stable
download/upload program
and data, remote
monitoring, communicate
with TCP IP device in
LAN, set the port
parameters through
software or xinje config
tool. Only XDH series
LAN2 port supports
EtherCAT, can
synchronous control of 32-
axis motor.
