Xinje XD Series User Manual

237

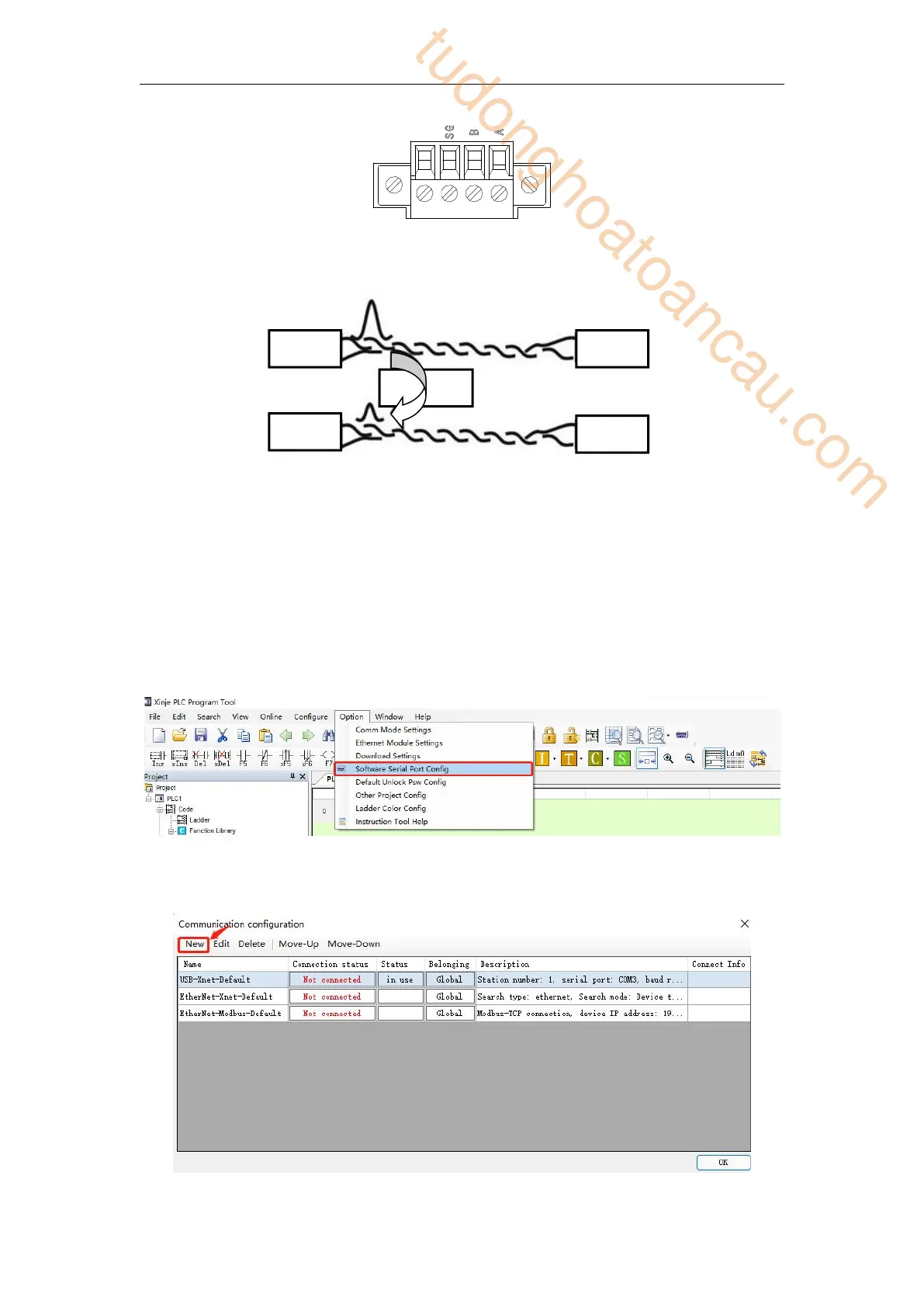

Please use twisted pair cable for RS485. (See below diagram). But shielded twisted pair cable
is better and the single-ended connects to the ground.
3. USB port
When downloading programs and data through the USB port, the USB driver and
XINJEConfig tool must be installed first. Because the current USB driver has been built in
the XINJEConfig software, the USB driver will be installed automatically after the
XINJEConfig software is installed.
After installing the xinje config tool and usb driver, please switch to Xnet mode in the PLC
software:
(1) Open XDPPro software, click option/software serial port config
(2) The window of "Communication Configuration" as shown in the picture below pops up,
click ‘New’, and the configuration interface is as follows:
Send
receive
receive
send
noise
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
