Xinje XD Series User Manual

277

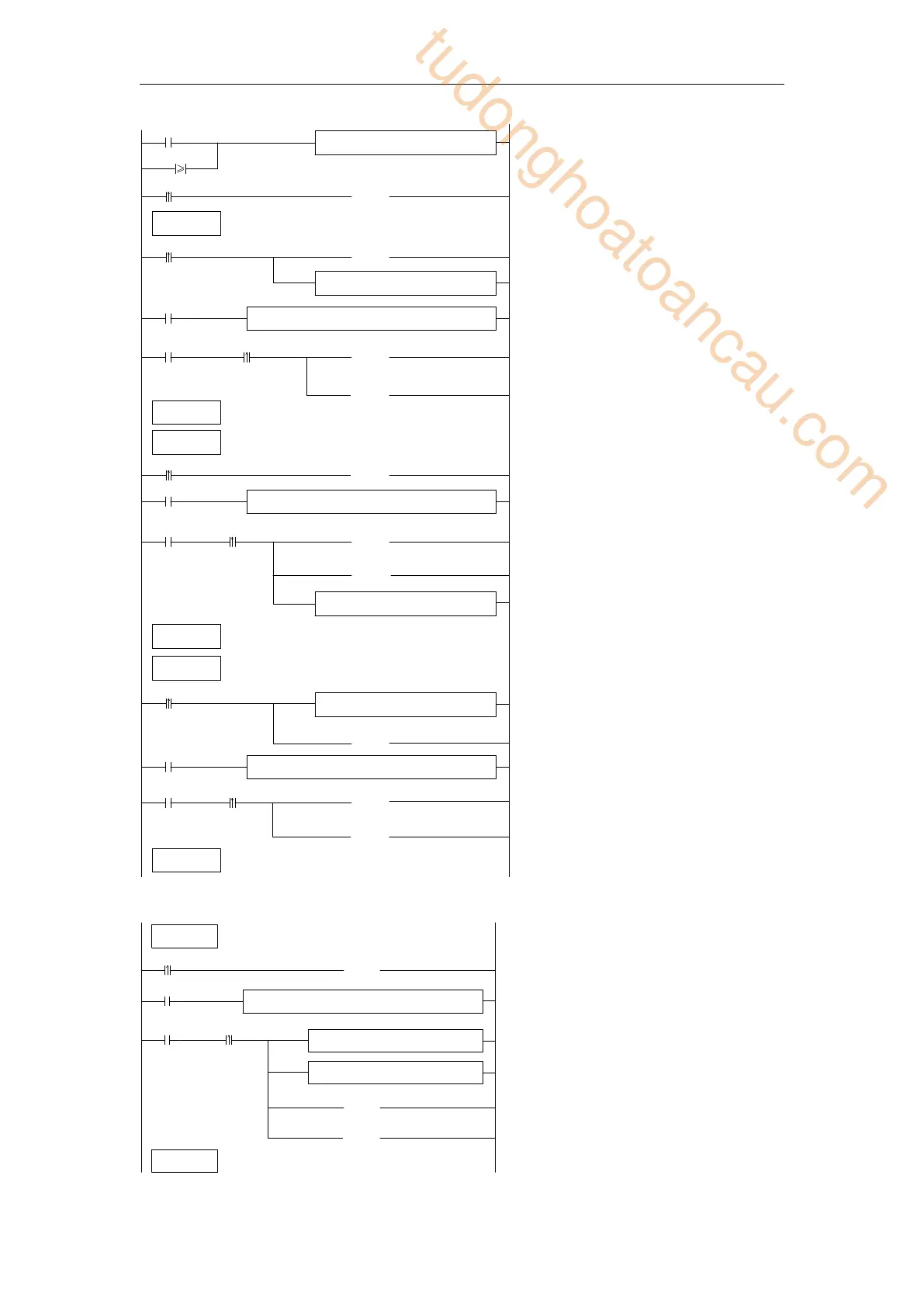

MOV K2 D100
M8002
X0
( S )
S0
M0
STL S0
S0
( S )
M0
MOV HA0 DY0
MCLW D100 K24576 K10 Y0 K2
M0 M8138
( S )
S1
( R )
M0
STLE
STL S1
M1
S1
( S )
M1
COLR D100 K24576 K10 M10 K2
M1 M8138
( S )
S2
( R )
M1
STLE
MOV K0 DY0
STL S2
M2
S2
( S )
M2
MRGW D100 K10 K10 D10 K2
M2 M8138
( S )
S3
( R )
M2
STLE
FMOV K1 D10 K10
D100 K5
STL S3
M3
S3
( S )
M3
REGR D100 K10 K10 D20 K2
M3 M8138
( S )
S0
( R )
M3
STLE
FMOV K0 D10 K10
INC D100
//send station no.2 to D100,
execute the process S0
//set ONY0~Y11 of master station,
write the master status to Y0~Y11
of slave PLC 2, 3, 4. Enter process
S1 when the communication
succeeded.
//read the Y0~Y11 of slave PLC 2,
3, 4 to master PLC M10~M19.
Reset master PLC Y0~Y11 and
enter process S2 after the
communication is successful.
//write 1 to master PLC D10~D19,
write the master PLC D10~D19 to
D10~D19 of slave PLC 2, 3, 4.
Enter process S3 when the
communication is successful.
//read the D10~D19 of slave PLC
2, 3, 4 to master PLC D20~D29,
reset D10~D19 after the
communication is successful, then
the station no. is added 1, process
S0 is executed, cycle.
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
