Xinje XD Series User Manual

384
Example

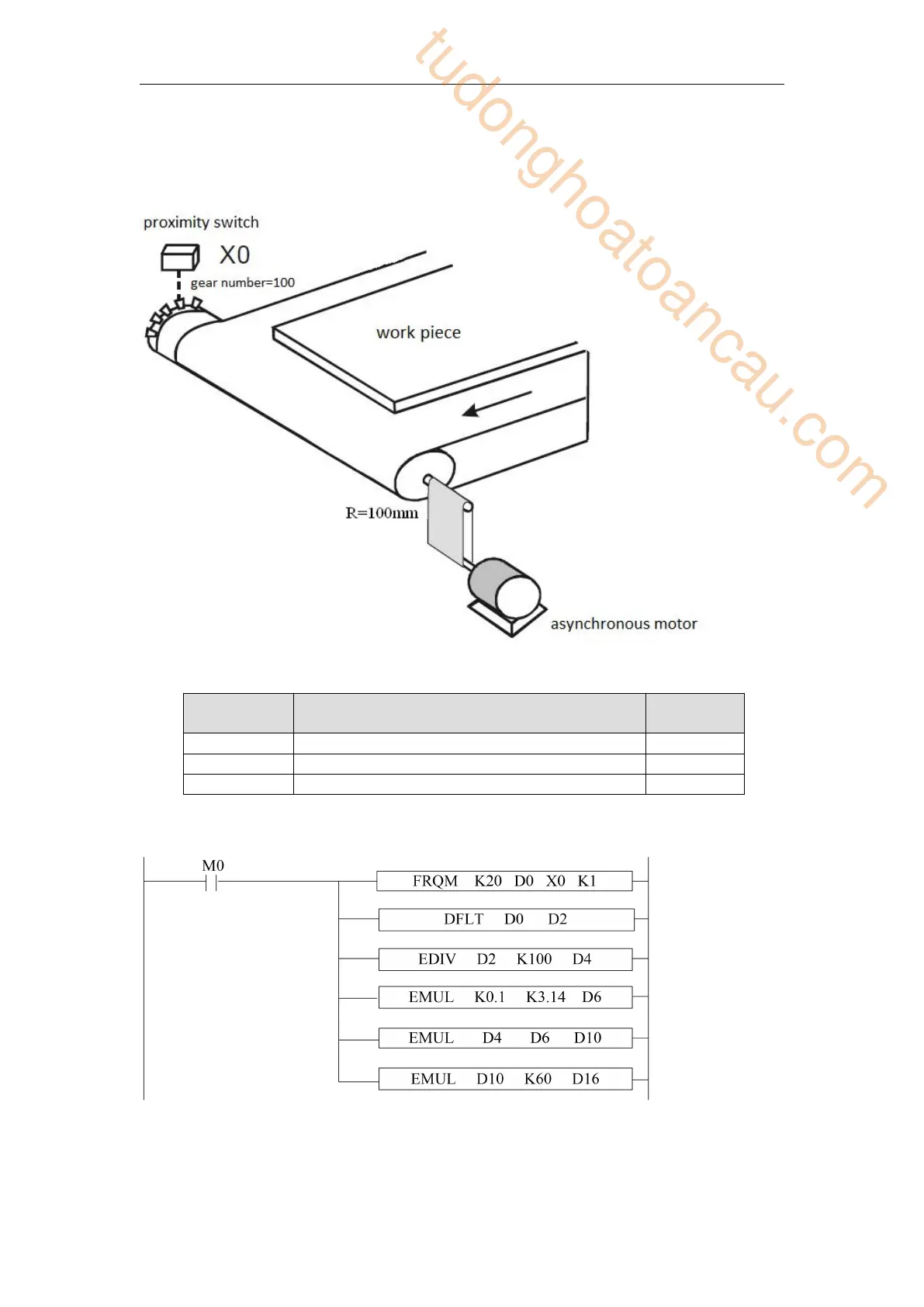

Asynchronous motor drives the conveyor to transfer the work piece. It needs to real-time
display the work piece moving speed. The diameter of the transmission shaft is 100mm, the
gear numbers on the transmission shaft are 100, the speed unit is m/min.
Component explanation:
PLC
component
Control explanation
Mark
X0
Proximity switch, to count the gear numbers
M0
Start signal
D16
Speed register (float number)
Program:
Program explanation:
1. Set ON the start signal M0, to run the frequency meansurement program
2. Transform the frequency to float number, then it is divided by 100 (gear numbers per
