Xinje XD Series User Manual

392
Enable Interruption [EI], Disable Interruption [DI], Interruption Return [IRET]
Note: In interrupt subroutine, only simple instructions such as set, reset, transmission and
operation can be written, which can be executed in a scanning cycle. Other instructions such
as sending pulses, timing (except for precise timing), communication and other instructions
that need to be continuously executed are not supported.
 If use EI instruction to allow
interruption, then when scanning the
program, if interruption input
changes from OFF to ON, then
execute subroutine
① 、 ②
. Return
to the original main program.
 Interruption pointer (I****) should
be behind FEND instruction;
 PLC is usually on the status that
allows interruption.

By programming DI instruction, can
set interruption disabled area;

Allow interruption input between
EI~DI

If interruption forbidden is not
required, please program only with EI,
and program with DI is not required.

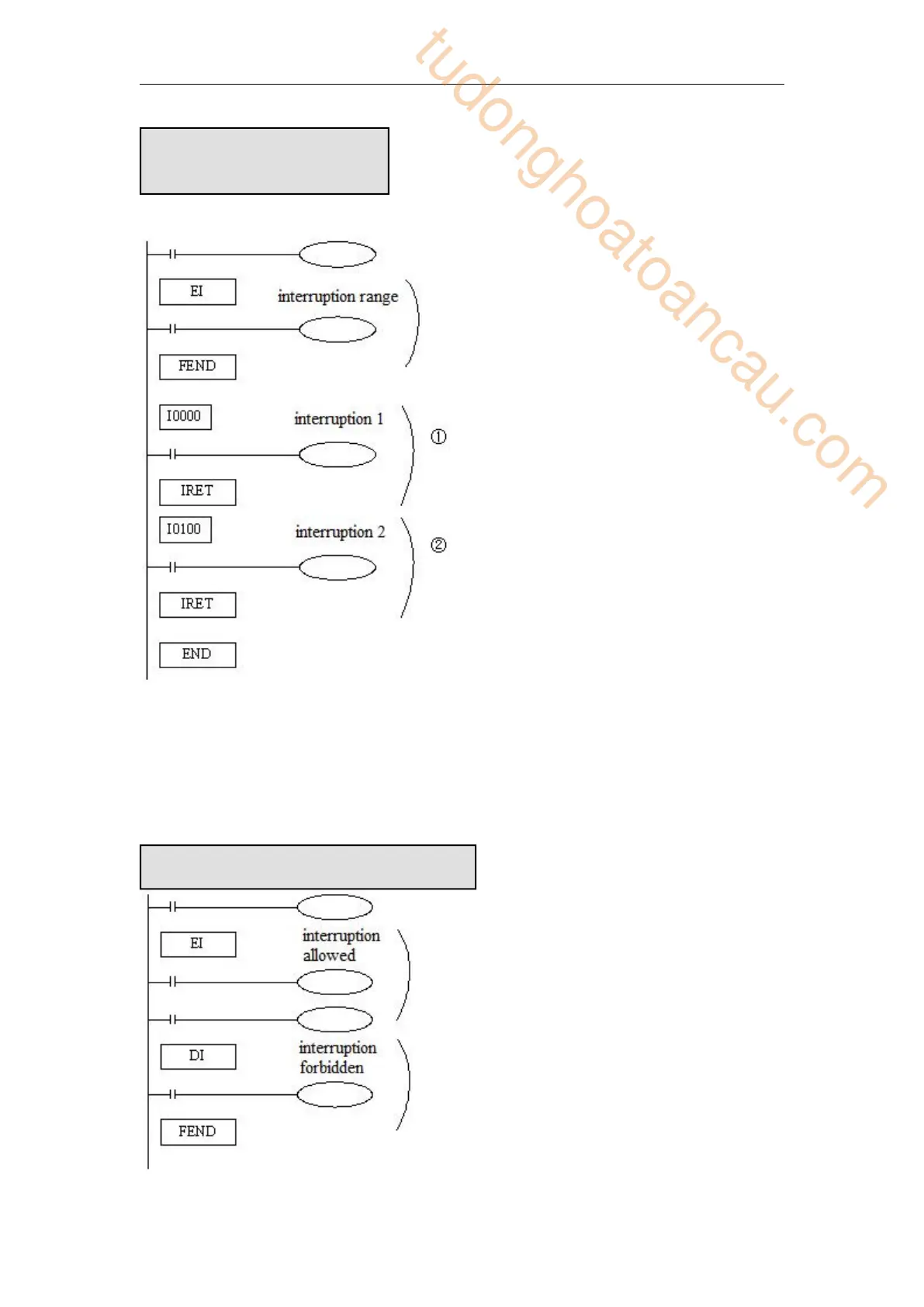

Interruption Instruction
Interruption’s Range Limitation
