Xinje XD Series User Manual

47

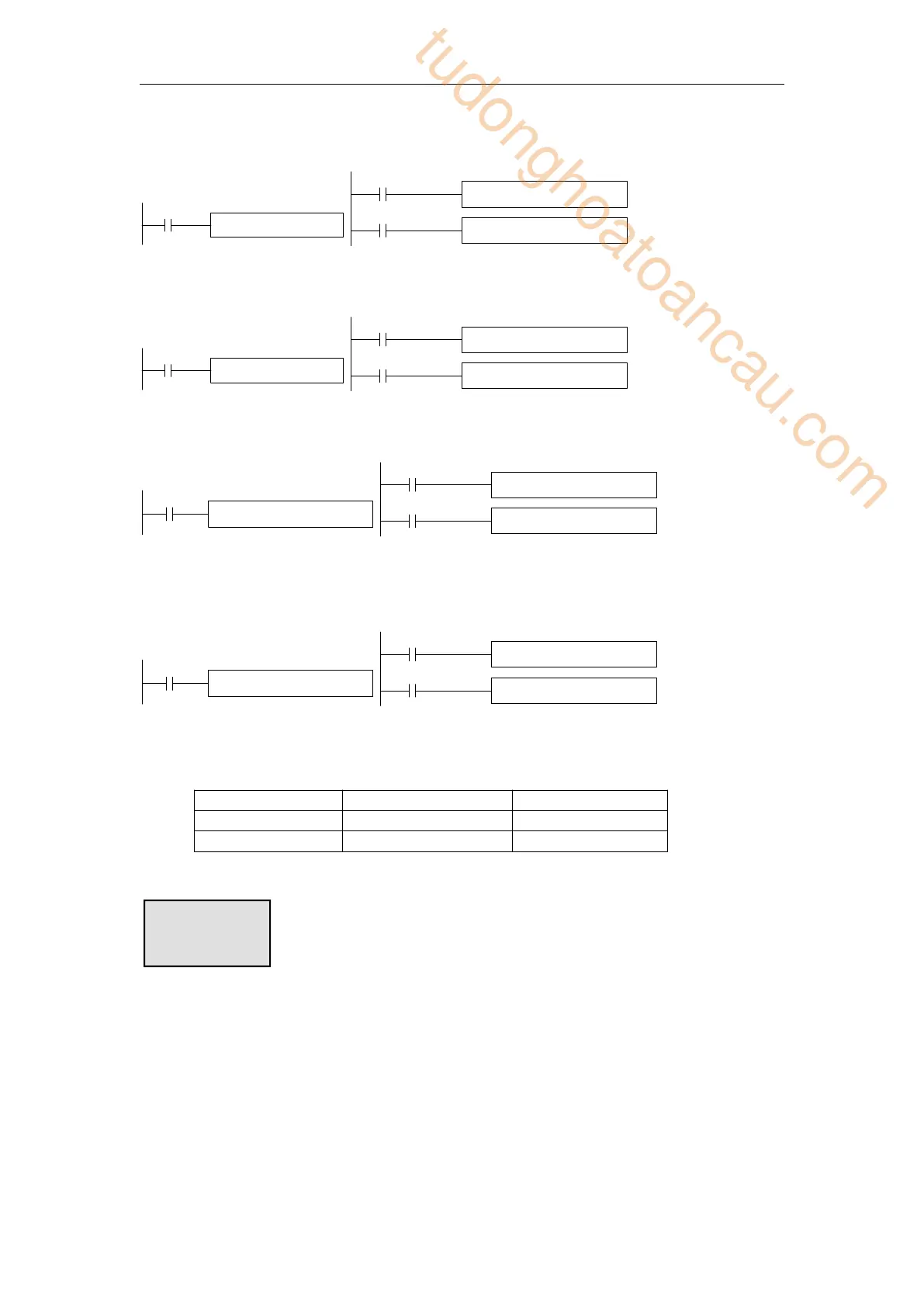

32-bit counter (common, count up)
《
set value is constant K
》《
set value is register
》
DCNT C0 K43100
X1
DCNT C0 D0
X1
X0
DMOV K43100 D0
32-bit counter (power-off retentive, count up)
《
set value is constant K
》《
set value is register
》
DCNT HC0 K43100
X1
DCNT HC0 D0
X1
X0
DMOV K43100 D0
32-bit counter (common, count down)
《
set value is constant K
》《
set value is register
》
DCNT_D C0 K-43100
X1
DCNT_D C0 D0
X1
X0
DMOV K-43100 D0
32-bit counter (power-off retentive, count down)
《
set value is constant K
》《
set value is register
》
DCNT_D HC0 K-43100
X1
DCNT_D HC0 D0
X1
X0
DMOV K-43100 D0
Note: The setting range and actual setting value of constant K are shown in the following
table:
Counter
K setting range
Actual setting range
16-bit counter
1~32,767
1~32,767
32-bit counter
1~2,147,483,647
1~2,147,483,647
The counter counting mode is 16-bit linear incremental mode (0~K32,767). When the
counter's count value CD reaches the maximum value K32,767, the counter will stop counting
and the state of the counter will remain unchanged.
The counter counting mode is a 16-bit linear decreasing mode (-32768-0). When the counter
counting value CD decreases to the minimum value K-32, 768 will stop counting and the state
of the counter remains unchanged.
The counter counting mode is 32-bit linear increase/decrease mode (
-2,147,483,648~+2,147,483,647). When the counter counting value increases to the
maximum value K2,147,483,647, it will become K-2,147,483,648. When the counter
Count value
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
