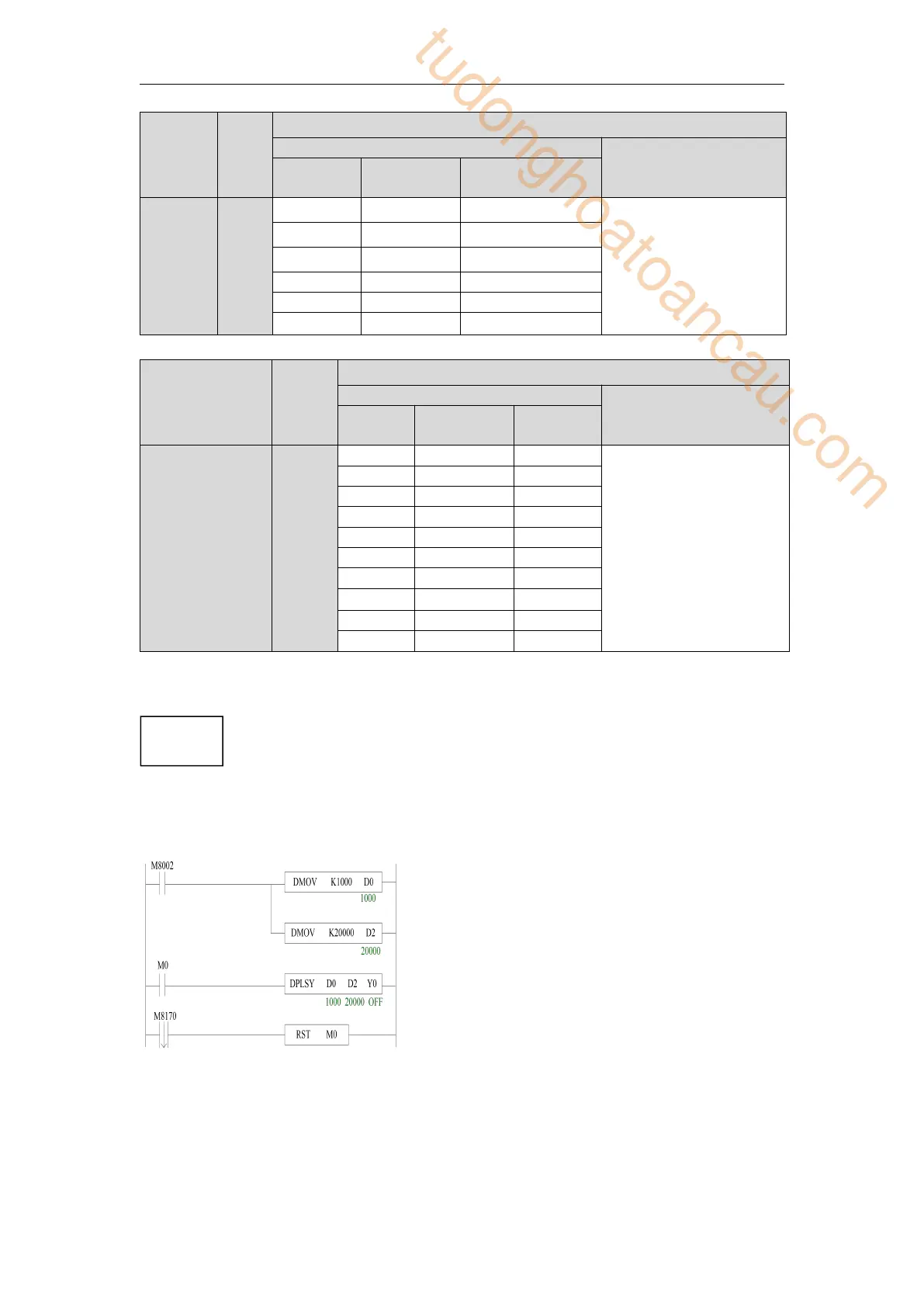

Xinje XD Series User Manual

56
Model
Name
Range
External interruption
Timer interruption
Input
terminal
Rising
interruption
Falling interruption
XD/XL
series
16 points
I
X2
I0000
I0001
There are 20 timer
interruptions. From
I40** to I59**. “**”
means the timeof timer
interruption, the unit is
ms.
X3
I0100
I0101
X4
I0200
I0201
X5
I0300
I0301
X6
I0400
I0401
X7
I0500
I0501
Model
Name
Range
External interruption
Timer interruption
Input
terminal
Rising
interruption
Falling
interruption
XD/XL series
24-64 points
I
X2
I0000
I0001
There are 20 timer
interruptions. From
I40** to I59**. “**”
means the timeof timer
interruption, the unit is
ms.
X3
I0100
I0101
X4
I0200
I0201
X5
I0300
I0301
X6
I0400
I0401
X7
I0500
I0501
X10
I0600
I0601
X11
I0700
I0701
X12
I0800
I0801
X13
I0900
I0901
P is usually used in flow; it is used together with CJ (condition jump), CALL (call
subprogram), etc.
Condition Jump CJ
Call the subprogram (CALL)
If coil X0 is ON, jump to the
programafter P1;
If the coil X0 is not ON, do not execute
jump action, but run the original
program;
Sign P
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
