Yamaha WaveRunner - Page 143

5-34
E
POWR

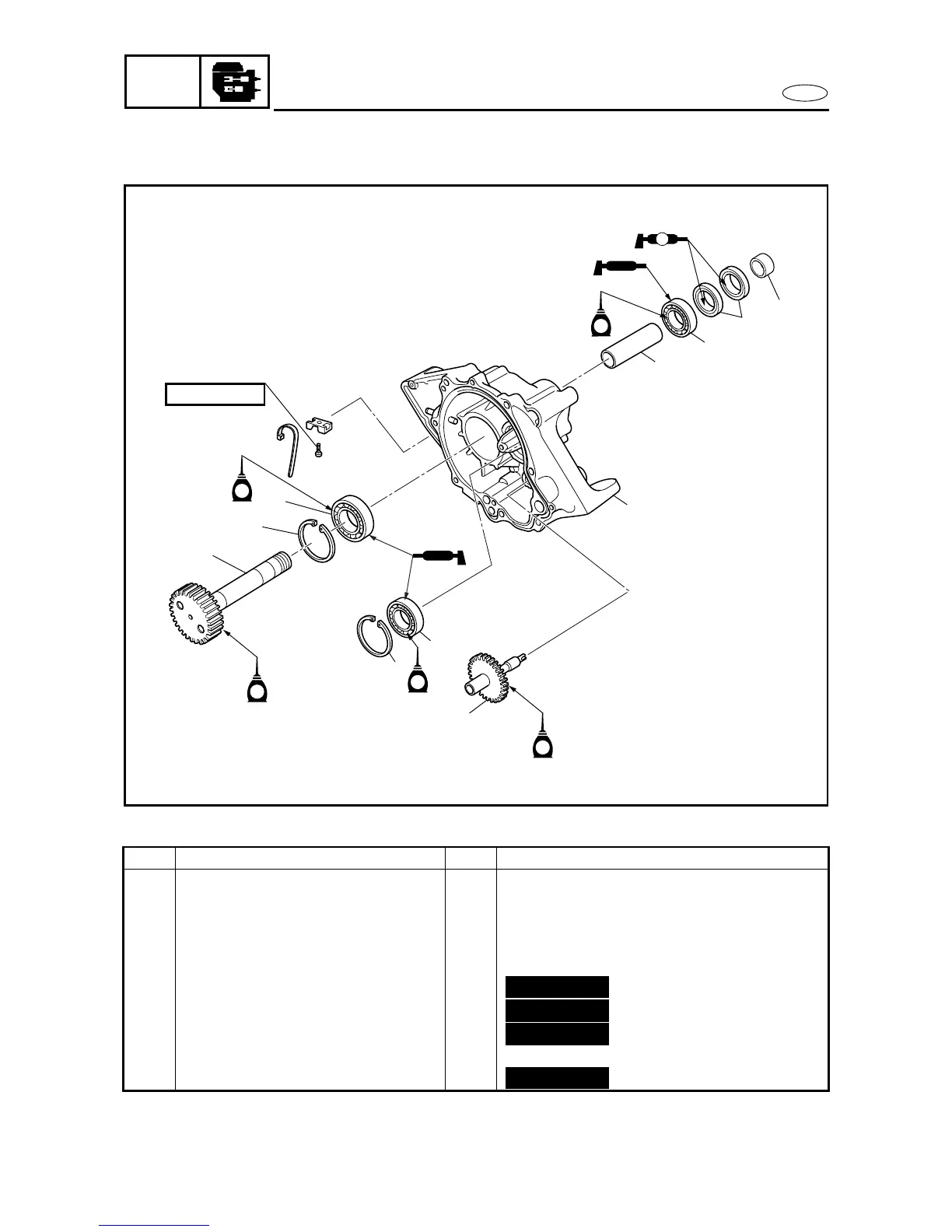

REDUCTION DRIVE GEAR
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
*1
: EPNOC grease AP #0
Step Procedure/Part name Q’ty Service points
REDUCTION DRIVE GEAR
DISASSEMBLY
Follow the left “Step” for disassembly.
1 Oil pump drive shaft 1
2 Drive shaft 1
3 Collar 1
4 Oil seal 2
5 Circlip 1
6 Bearing 1
7 Collar 1
8 Bearing 1
E
E
E
E
3
4
8
6
5
10
9
1
*
1
AA
*
1
5 × 10 mm
E
2
11
7
Not reusable
Not reusable
Not reusable
Not reusable
