5-45
E
POWR
GENERATOR AND STARTER MOTOR

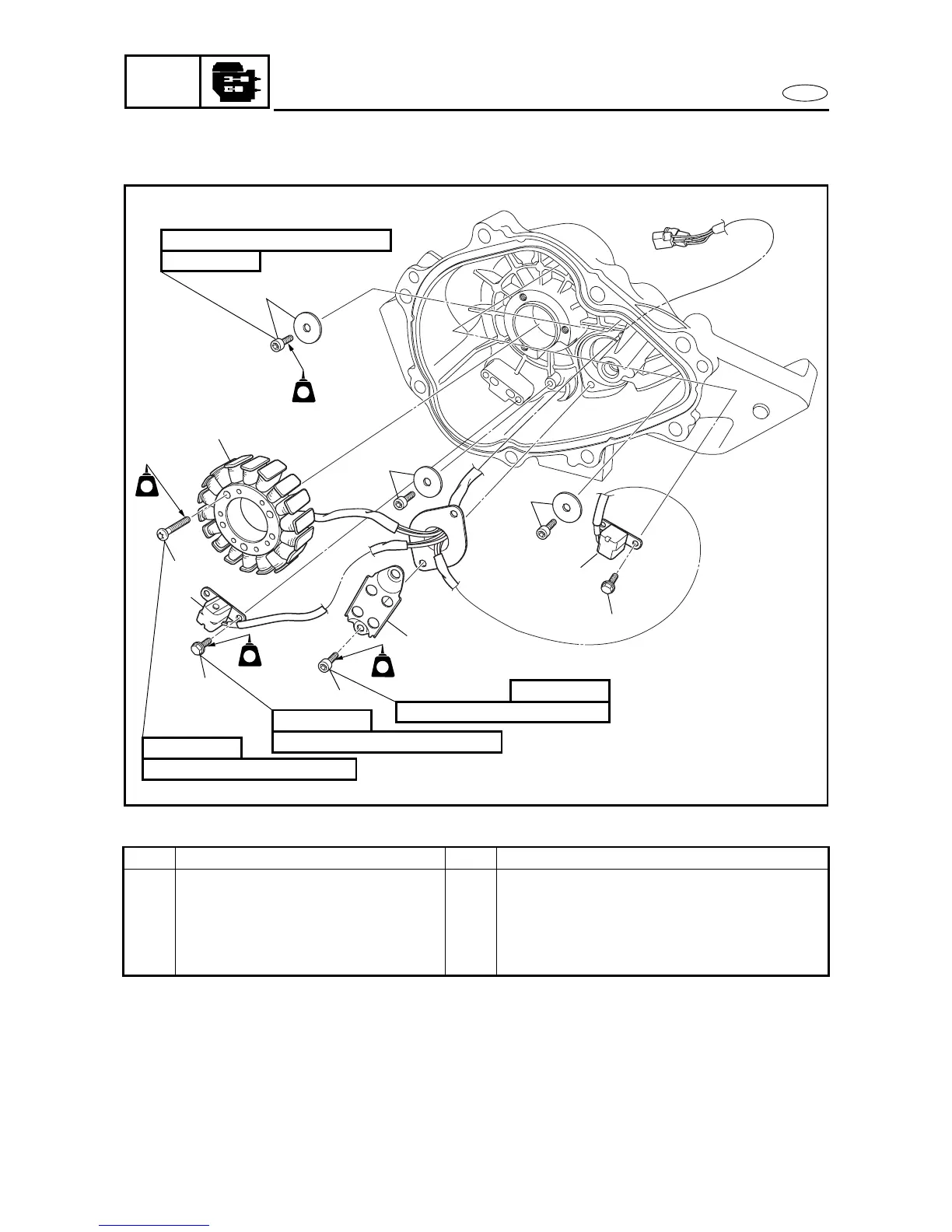

EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
5 Holder 1
6Bolt 3
7 Lighting coil 1
Reverse the disassembly steps for
assembly.
1
7
6
3
2
4
5
LT
242
LT
242
LT
242
LT
242
14 N
•
m (1.4
kgf • m, 10 ft • Ib)
6 × 14 mm
4.9 N
•
m (0.49
kgf • m, 3.5 ft • Ib)
5 × 14 mm
14 N
•
m (1.4
kgf • m, 10 ft • Ib)
6 × 33 mm
4.9 N
•
m (0.49
kgf • m, 3.5 ft • Ib)
5 × 10 mm
1
1
2
3
