HULL
HOOD
STEERING CONSOLE COVER

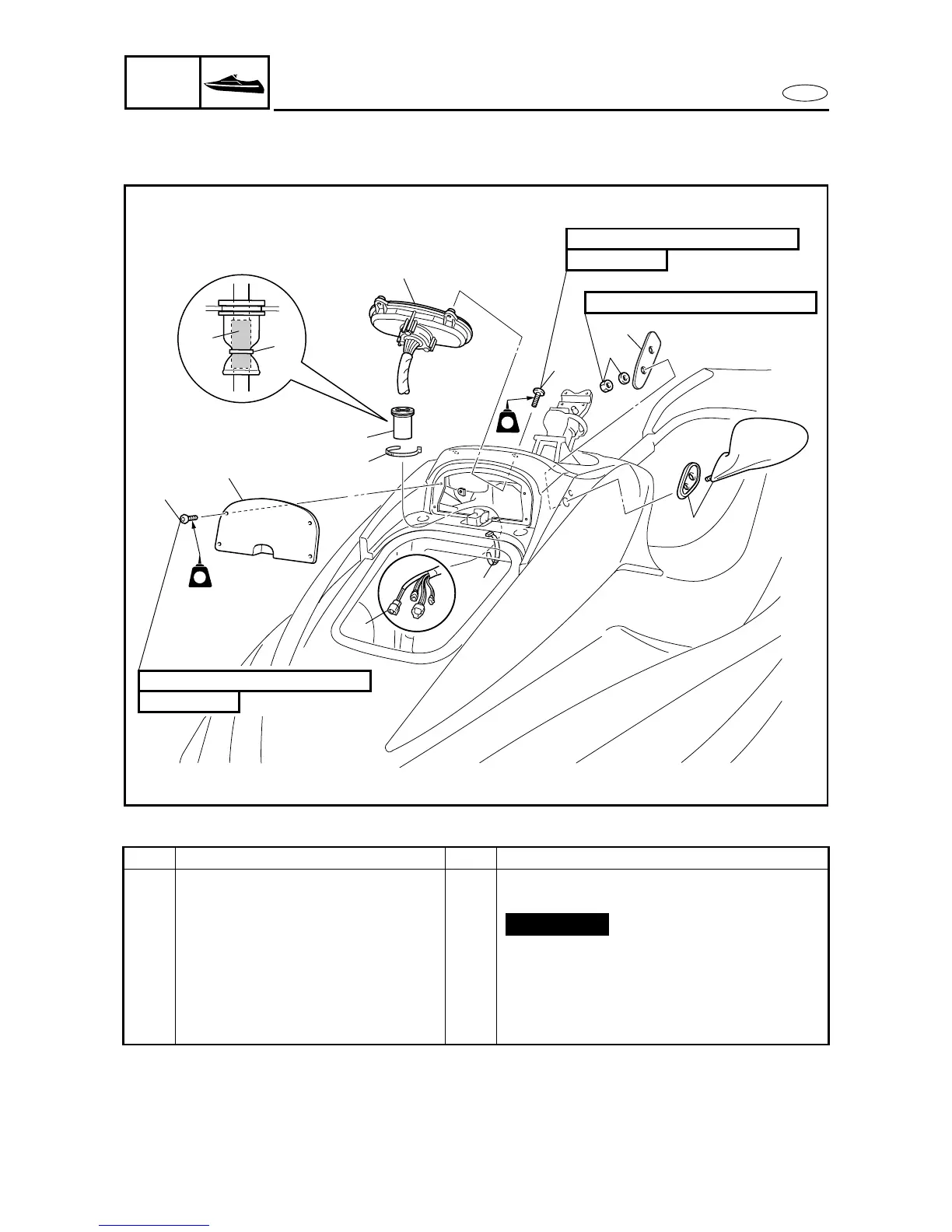

EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
6Bolt 4
7 Multifunction meter 1
8 Hose packing 1
9 Grommet 1
10 Nut/washer 4/4
11 Plate 2
12 Mirror 2
Reverse the removal steps for installation.
LT
242
LT
242
5
7
9
5
6
10
12
1
2
3
4
5 × 20 mm
3.9 N • m (0.39
kgf
•
m, 2.8 ft
•
Ib)
5 × 20 mm
3.9 N • m (0.39
kgf
•
m, 2.8 ft
•
Ib)
6.9 N • m (0.69
kgf
•
m, 5.0 ft
•
Ib)
8
11
Not reusable
