8-28
E
HULL
HOOD
STEERING CONSOLE COVER

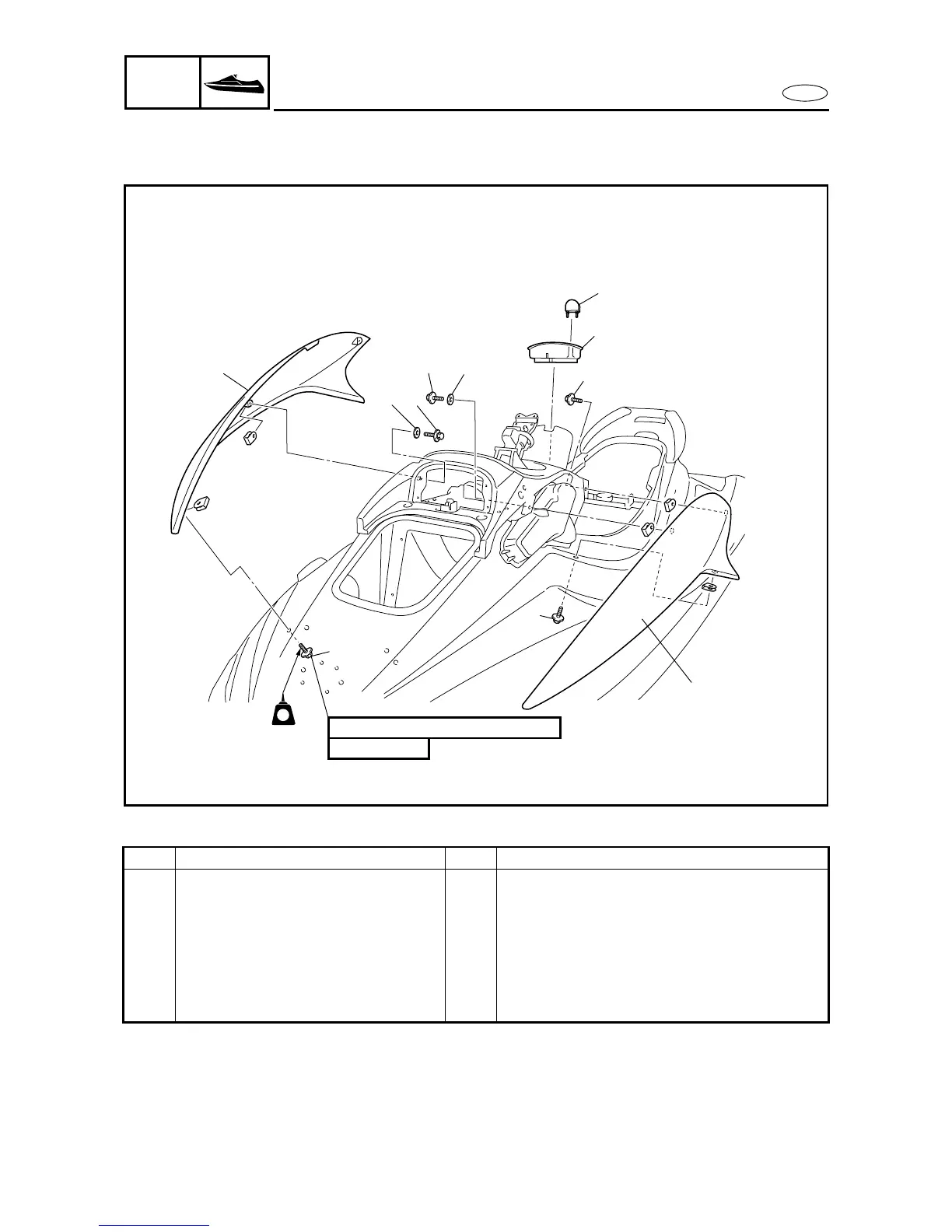

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
SIDE COVER REMOVAL
Follow the left “Step” for removal.
1 Cup holder 1
2 Holder 1
3Bolt 8
4 Washer 2
5 Side cover 2
Reverse the removal steps for installation.
3
2
3
4
3
5
6 × 22 mm
5.4 N
•
m (0.54
kgf • m, 3.9 ft • Ib)
LT
271
3
4
5
3
1
