33
E
SPEC

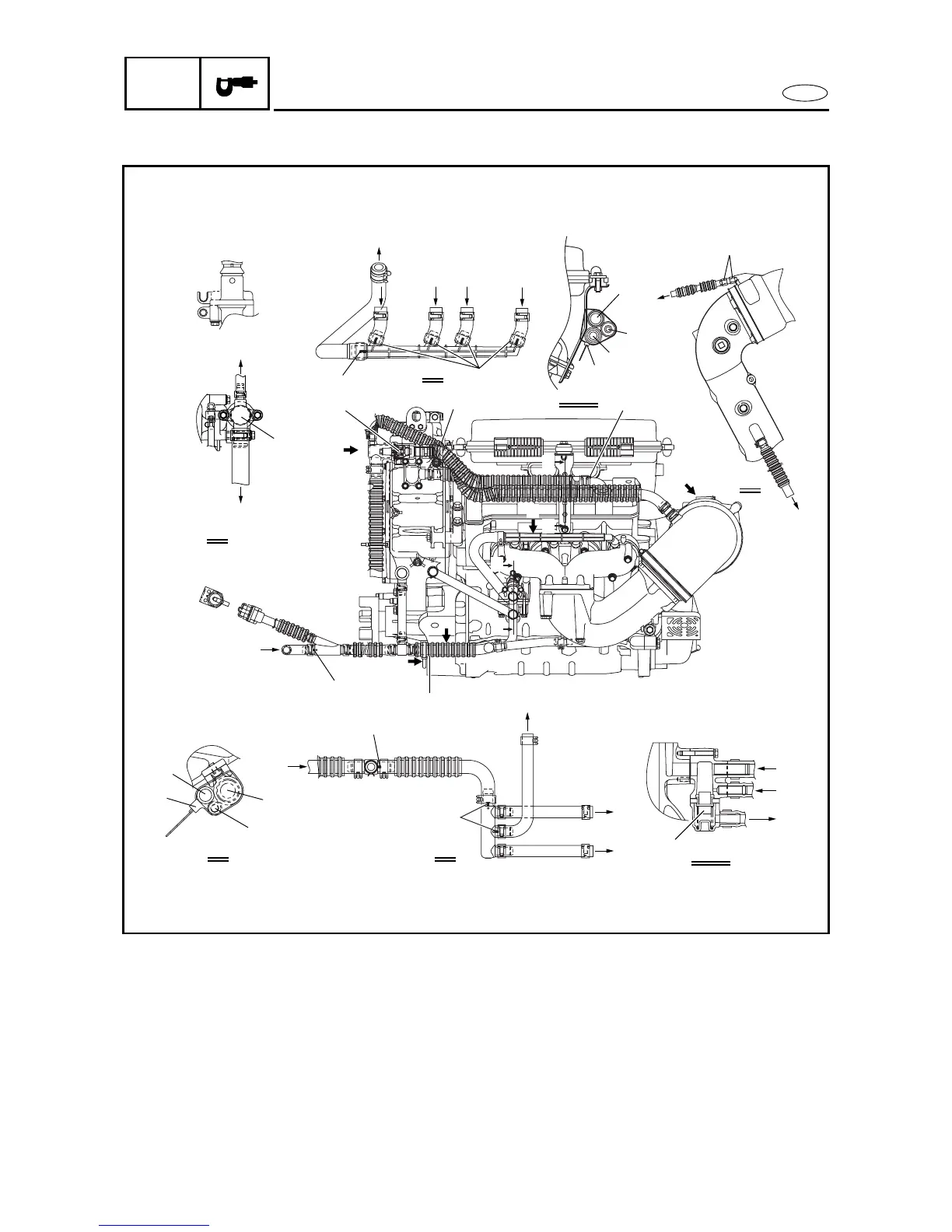

CABLE AND HOSE ROUTING (For FX/FX Cruiser)
B
D
G
F
A
E-E
Ð
Ï
Ë
ËË
Ë
Ê
Ö
×
Ì
Ñ
Ì
Ô
Ø
Ñ
Õ
Ì
Ê
Ó
Ó
Ò
Ú
Ë
D
A
G
F
B
4
6
7
5
1
E
E
Í
C-C
Î
3
2
3
C
C
È
É
1
Ù
Í When installing the cooling water hoses, be sure
to push them down until they contact the hose
joint.
Î Bundle the cooling water pilot outlet hose and
cooling water hoses, pass a plastic tie through
the stay hole, and then fasten the tie.
Set the tie in the direction shown.
Ï To cooling water pilot outlet on port side
Ð To cooling water outlet at stern
Ñ From cooling water inlet
Ò To oil tank
Ó To exhaust pipe
Ô To install the cooling water hose, align the white
paint mark on the hose with the parting line on
the hose joint.
Õ Fasten the cooling water hose, negative battery
lead, and breather hose with a plastic tie. Set
the tie in the direction shown.
To Next Page
